400 Series
400 Series
Component Access and Removal
6-21

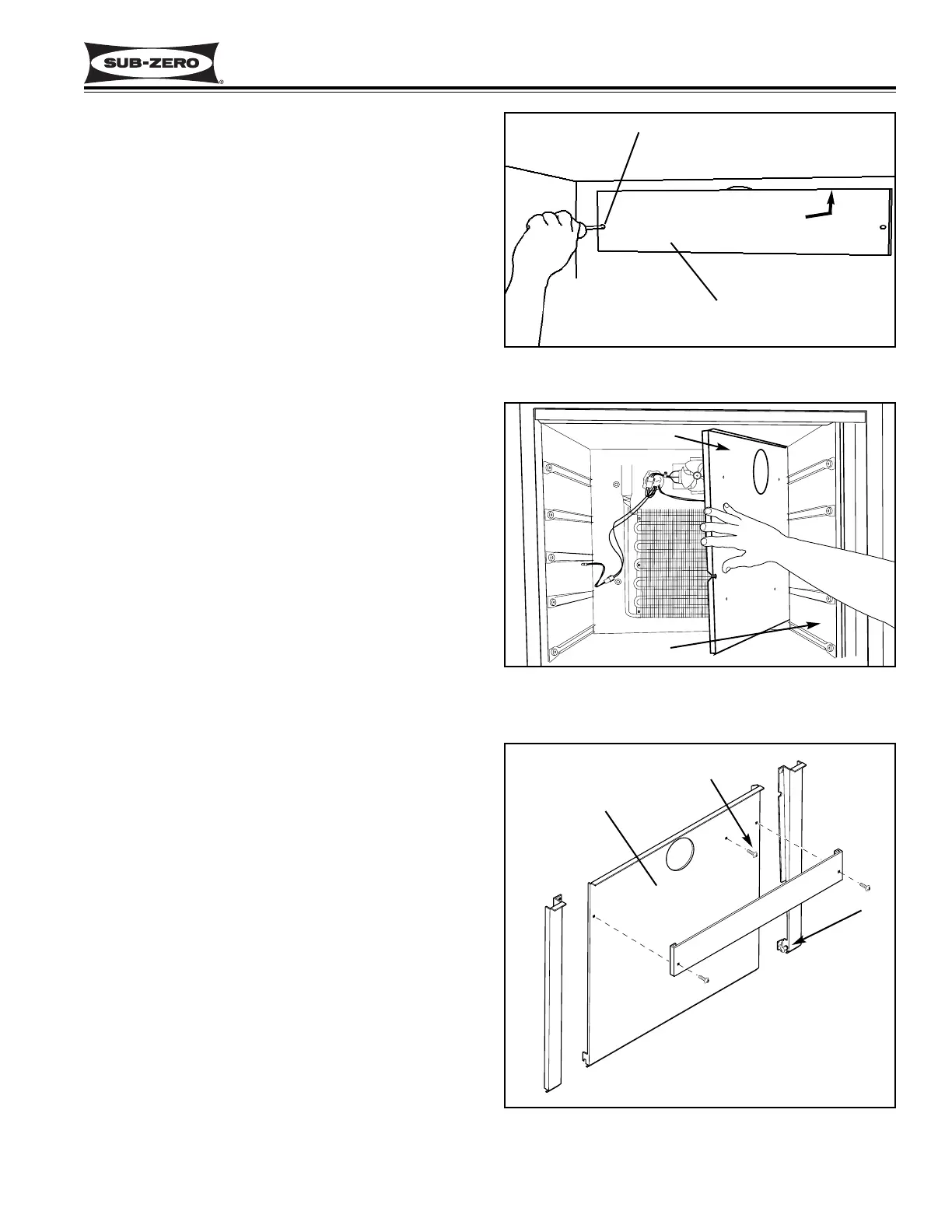

Figure 6-44. Evap Fan Cover Removal
Duct opening at top
Evaporator Fan Cover
Screw Access Hole
Evaporator Fan Cover Removal
(Models 427 & 427R)
There are two access holes in the front of the evapora-
tor fan covers. The back flanges of the evaporator fan
cover have slots that line up with the access holes.
Screws inside these access holes pass through slots in
the back flanges and through holes in the evaporator
cover into screw grommets, securing the fan cover.
To remove the evaporator fan cover, extract the two
mounting screws from the access holes and pull the fan
cover forward. (See Figure 6-44)
Upper and Lower Wine Storage Evaporator Cover
Access and Removal (Model 427 & 427R)
The wine storage evaporator covers are held in place
with four screws, two at the evaporator fan covers and
two towards the bottom of the evaporator covers. A
flange on the side of the evaporator covers hooks
behind the false wall in each compartment.
To remove the wine storage evaporator covers, you
must first remove the evaporator fan cover mounting
screws and the evaporator fan cover. Remove the
screws towards the bottom of the evaporator cover.
Rotate the side of the evaporator cover farthest from
the false wall out slightly. Push the thermistor electrical
leads and rubber grommet from the slot in the evapora-
tor cover. Locate the ground wire riveted to the back of
the evaporator cover. Extract the ground at the other
end of the ground wire.Continue rotating the side of the
evaporator cover farthest from the false wall out until
the flange clears the false wall. (See Figure 6-45)
NOTE: When reinstalling the evaporator cover, the
ground wire must be reattached with the ground screw
to the rear wall.
Refrigerator Section Evaporator Cover Access and
Removal (Model 427R ONLY)
The refrigerator section evaporator cover is held in
place with three screws, two at the evaporator fan cover
and one that secures it to a grounding bracket.
NOTE: See ELECTRIC SHOCK WARNING at begin-
ning of this section.
To remove the refrigerator evaporator cover, you must
first remove the evaporator fan cover mounting screws
and the evaporator fan cover. Then, extract the
grounding screw towards the top right, and remove both
Reed switches. Pull the top of the evaporator cover for-
ward and lift off of pegs at bottom. (See Figure 6-46)
NOTE: When reinstalling the evaporator cover, the
ground wire must be reinserted.
Figure 6-45.
Wine Storage Evaporator Cover Removal
Figure 6-46.
Refrigerator Evaporator Cover Removal
Pull top of evap
cover forward and
lift off of pegs
Refrigerator
Evap Cover
Peg
Ground
Screw
False Wall
Evap Cover
