MODEL 430 INTERIOR COSMETIC
COMPONENT REMOVAL:
An attempt has been made to arrange these instructions
in such a way as to simulate which components would
need to be removed first in order to gain access to other
components. When following a component removal pro-
cedure, it may be necessary to reference another
removal procedure towards the front of this section.
Wine Rack Assembly Removal (Model 430)
To remove a wine rack assembly, pull the rack forward
until it stops. Remove any wine bottles on the rack. Lift
the front of the wine rack up while pulling forward. After
the indentations on the wine rack clear the rollers on
the cabinet slides, lower the front of the wine rack while
continuing to pull forward, then lift the rear of the rack
up and out. (See Figure 6-75)
Upper Light Strip Access and Removal (Model 430)
NOTE: See ELECTRIC SHOCK WARNING at beginning
of this section.
The light strip is held in the channel of the light strip
housing. To access the upper light strip, extract the two
light strip housing mounting screws. Lower the light
strip housing down and disconnect the electrical leads.
Now, slide the light strip out the end of the channel.
(See Figure 6-76)
NOTE: When reinstalling the light strip housing, care
must be taken to ensure that all wire leads are tucked
behind the light strip housing before resecuring it.
NOTE: Since the lower light strip housing is attached to
the control panel assembly in the model 430, the com-
plete control panel assembly must be removed in order
to gain access to the light strip. See Lower Light Strip
Access and Removal instructions in the MODEL 430
INTERIOR MECHANICAL COMPONENT ACCESS AND
REMOVAL section of this manual.
Cabinet Slide, Slide Spacer and Slide Support
Spacer Removal (Model 430)
Cabinet slides are attached to the side walls of the wine
compartments with screws. If the cabinet slide is
attached to the handle side of the compartment, a small
plastic slide spacer is placed between the front of the
slide and the side wall. If the cabinet slide is attached
to the handle side, a wide plastic slide support spacer is
placed between the slide and the wall.
To remove a cabinet slide, first remove the wine rack.
Then, extract the Phillips head cabinet slide mounting
screws and pull the cabinet slide and slide spacer or
slide support spacer from the wall. (See Figure 6-77)

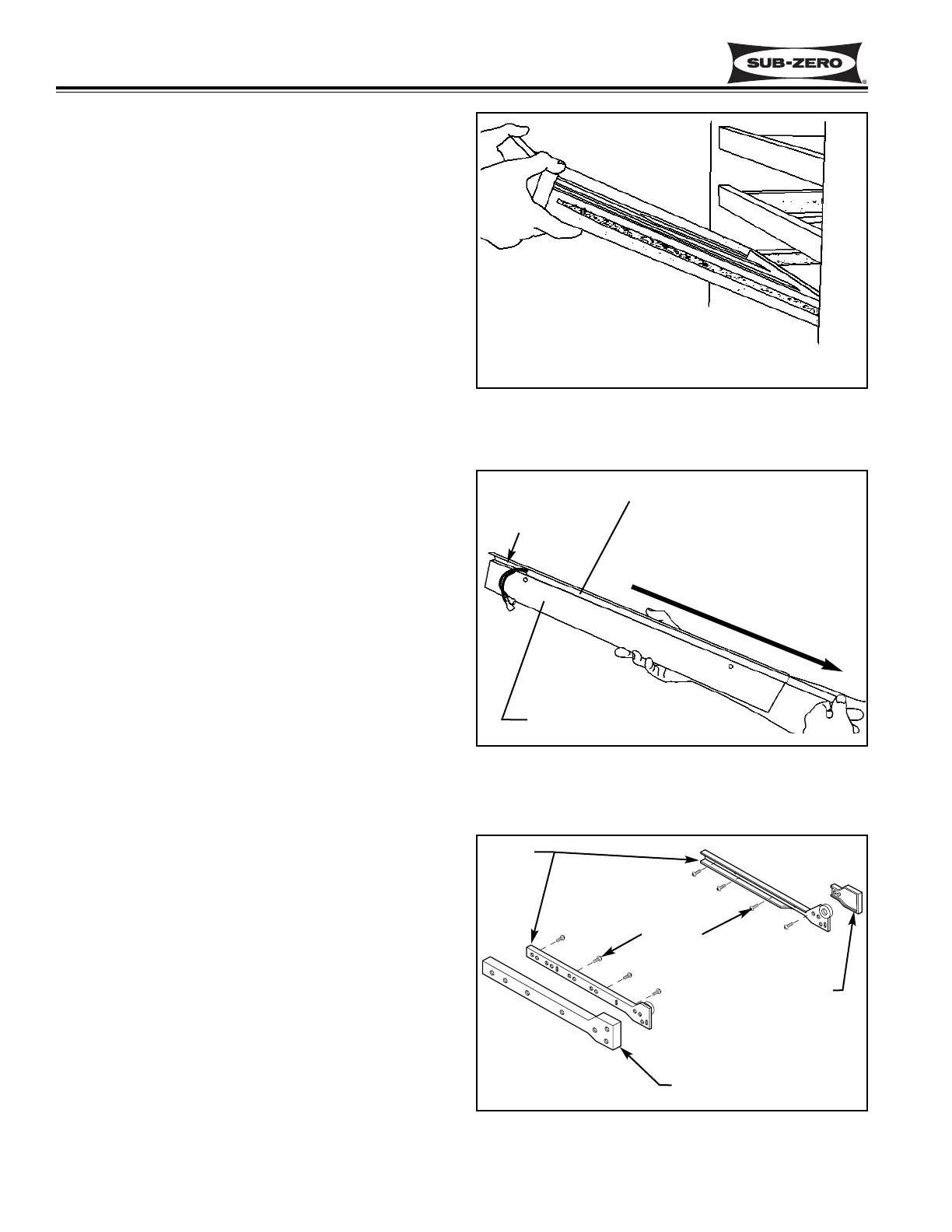

Figure 6-76. Upper Light Strip Removal
Figure 6-75. Wine Rack Assembly Removal
Figure 6-77. Cabinet Slide, Slide Support
Spacer & Slide Spacer Removal
Slide light strip out
end of the channel.
Channel
Light Strip
Light Strip Housing
Slide Support Spacer
Slide
Screws
Slide Spacer
Lift front while pulling forward.
After indentations clear rollers,
lower front, pull forward, lift rear.
To Next Page
