LED Light Assembly - continued
17. Press the tab on the left of the LED light assembly
to the right (See Figure 3-27).
18. Remove the LED light assembly from the bracket.
Turntable Motor
To remove the turntable motor, first uninstall the
microwave, then (See Figure 3-28):
1. Place the microwave on it’s back on a protected
surface.
2, Use a T-20 Security Torx drive to extract the screws
from the bottom cover.
3. Pull the bottom cover toward the door and disen-
gage the rear tabs. Remove the bottom cover.
4. Disconnect the wire harness (See Figure 3-29).
5. Use a T-20 Torx drive to extract the screws from the
turntable motor.
6. Remove the turntable motor.
7. Remove the turntable coupler.

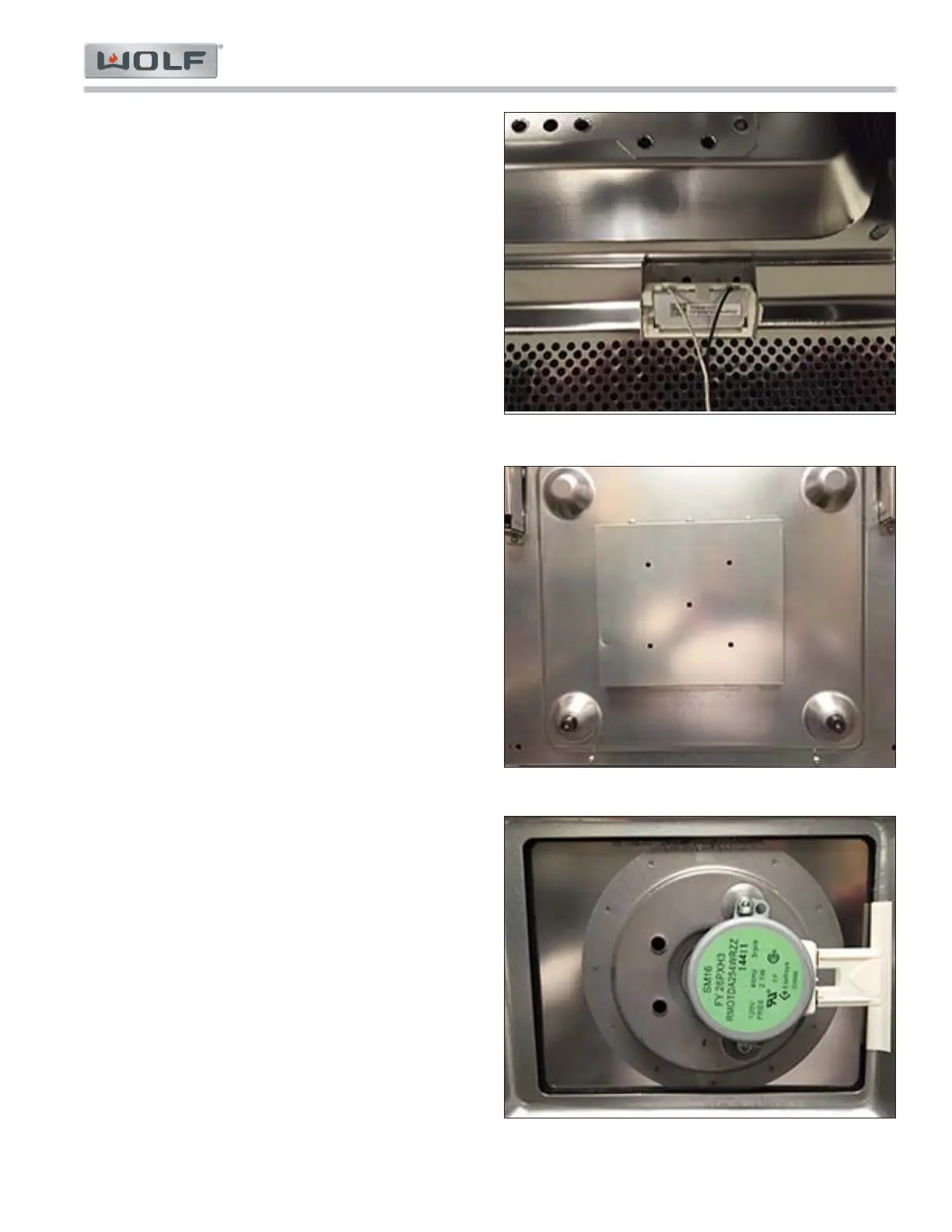

Figure 3-27. LED Light Assembly
Figure 3-28. Bottom Cover
Figure 3-29. Turntable Motor
