3-26
Electronic Control System
7011902 - Revision A - October, 2009
International Integrated
International Integrated
(ICB700 Base)
(ICB700 Base)
Series
Series
ELECTRONIC CONTROL SERVICE INPUT OPERATIONS
Model Configuration Mode
The main control board is used in several different models, so when a ICB700 Base Unit is manufactured, the main
control board must be configured/programmed for the specific model it is used in by a series of key strokes at the
control panel. This is called Model Configuration.
If a new main control board is installed during a service call, double dashes ( - - ) will appear on the LCD (See
Figure 3-55). This indicates the new board must be configured for the model it was installed into. This is accom-
plished in Model Configuration Mode, which is entered as soon as power is supplied to the unit. While in this mode,
open the bottom drawer
, then toggle through the model codes by pressing WARMER or COLDER keys, until appro-
priate model code is displayed (See Figure 3-56 and 3-57, and Model Code Table below). With appropriate model
code displayed, press POWER key to store model configuration (See Figure 3-58).
MODEL CODE TABLE
CODE MODEL
br ICB700BR
bC ICB700BCI
27 ICB427R
bF ICB700BFI

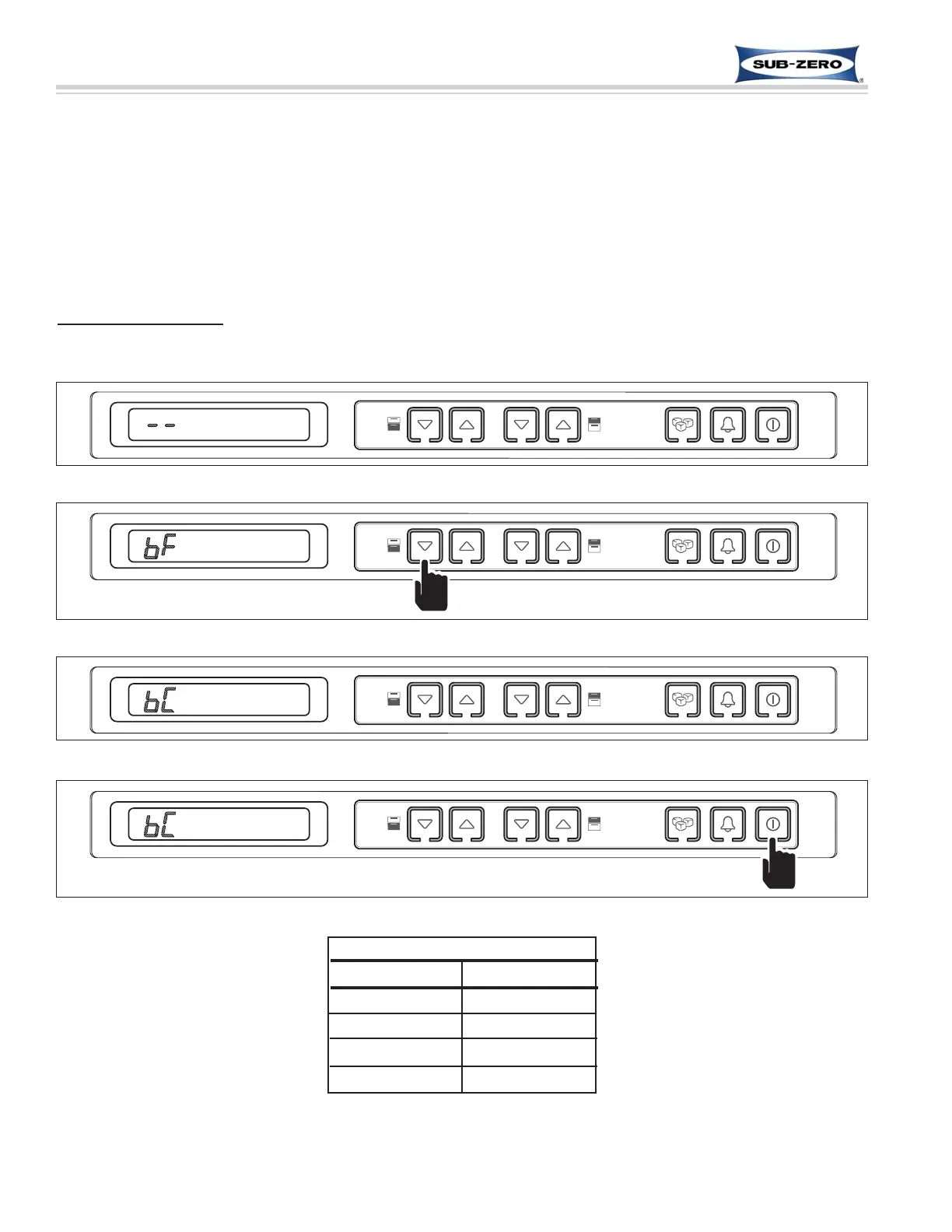

Figure 3-55. “- - ” Double Dashes when New Board Installed = Model Configuration must be Performed
Figure 3-56. Press WARMER or COLDER key to Toggle Through Model Codes
Figure 3-58. Press POWER Key to Store Model Configuration
Figure 3-57. Stop When Appropriate Model Code is Displayed
