Manual Entry Model Configuration Mode
Manual Entry Model Configuration Mode allows a Service Technician to verify a main control board in a ICB700
Base unit was configured correctly, and/or to reconfigure the main control board if a mistake was made during the
configuration process.
To initiate Manual Entry Model Configuration Mode the unit must be ON and the bottom drawer open
. Then, Press
and hold the drawer ajar alarm bell ON/OFF key and the POWER key together for 15 seconds. The unit will now be
in Model Configuration Mode, with the model code of the last configuration displayed (See Figure 3-59 and Model
Code Table on previous page). If needed, toggle through the model codes by pressing WARMER or COLDER keys,
until appropriate model code is displayed (See Figure 3-60 and 3-61). With appropriate model code displayed,
press POWER key to store model configuration (See Figure 3-62).

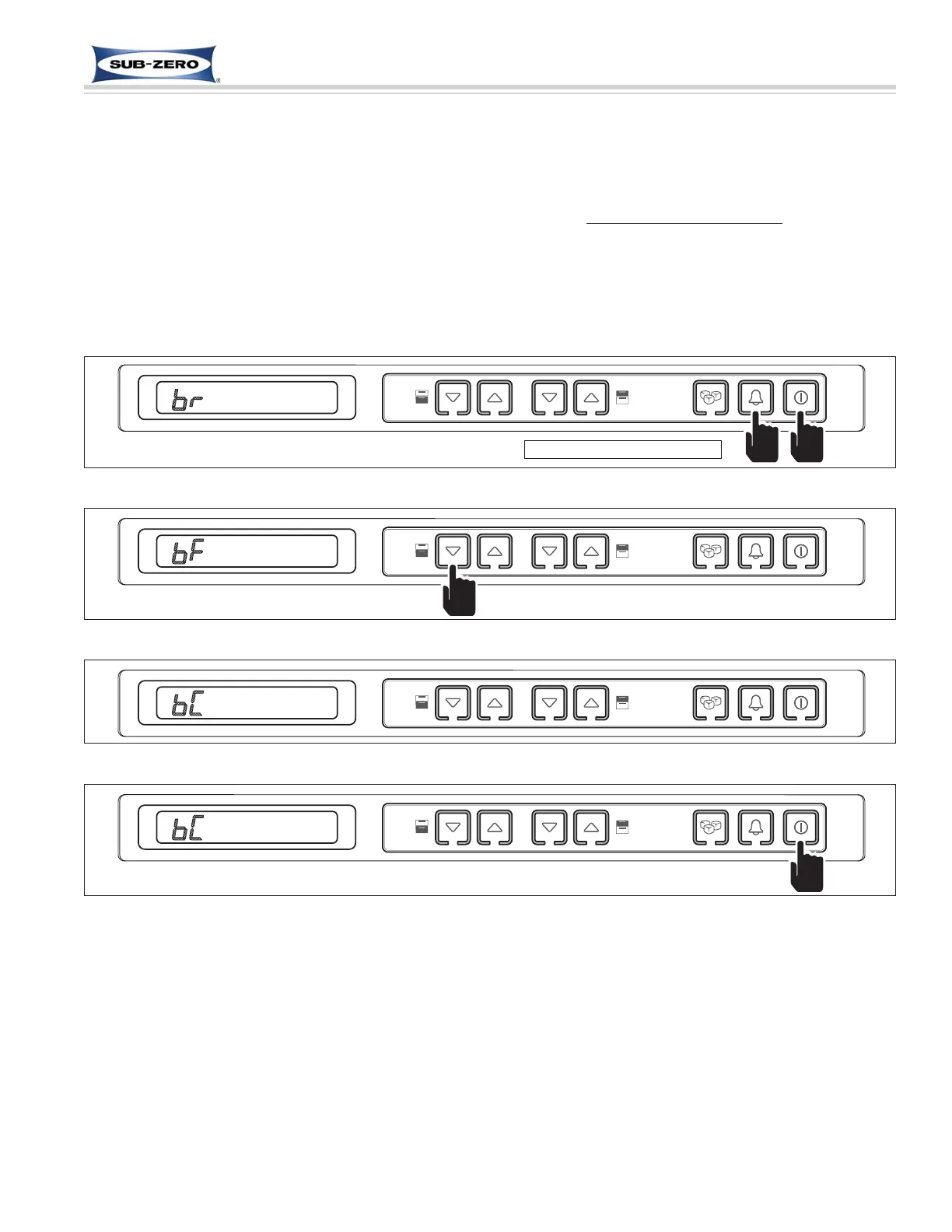

Figure 3-59. Press Alarm and POWER key to Initiate Manual Entry Model Configuration Mode
Figure 3-62. Press POWER Key to Store Model Configuration
Figure 3-61. Stop When Appropriate Model Code is Displayed
Press and hold for 15 seconds
Figure 3-60. Press WARMER or COLDER key to Toggle Through Model Codes
