6-5
Icemaker Information
7011902 - Revision A - October, 2009
International Integrated
International Integrated
(ICB700 Base)
(ICB700 Base)
Series
Series

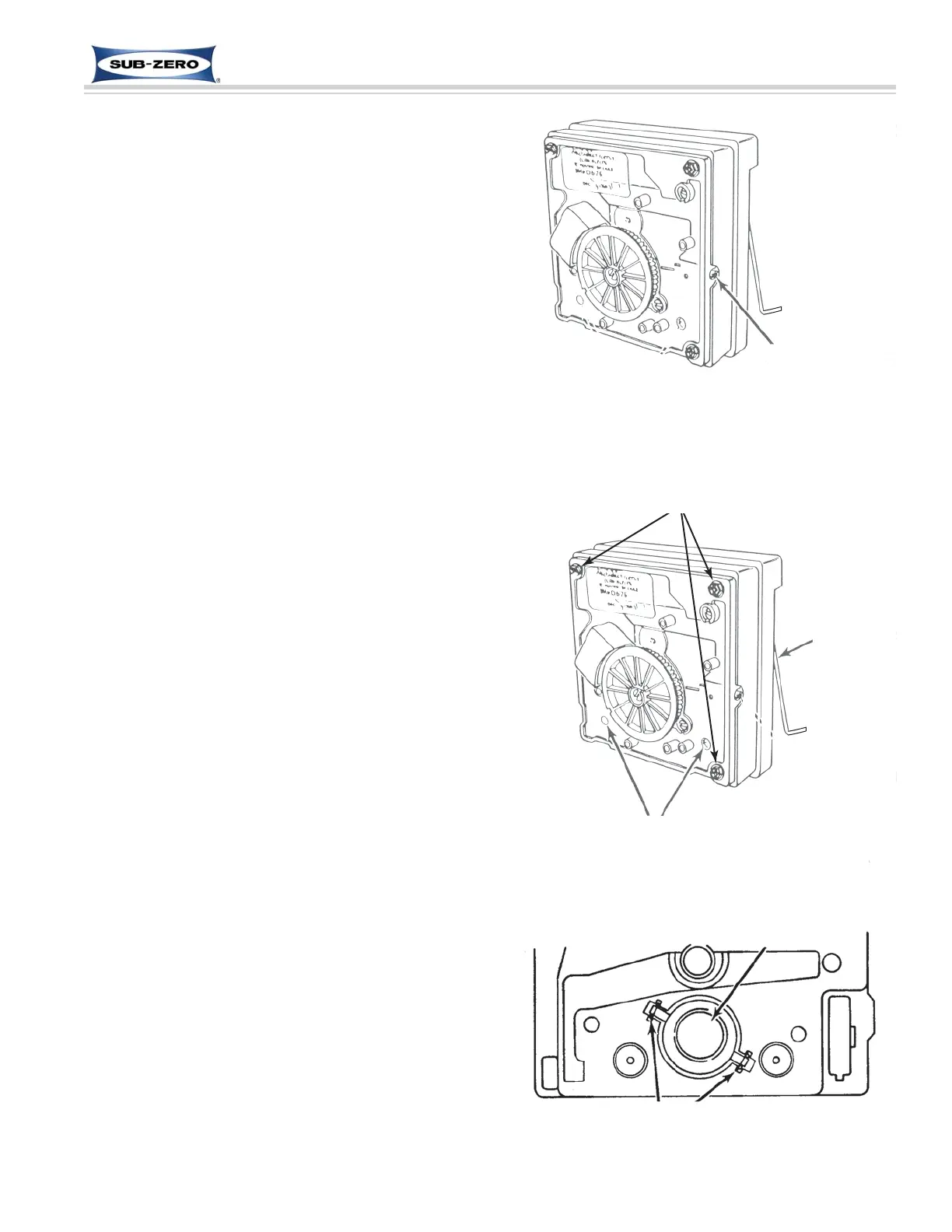

WATER FILL ADJUSTMENT
The water valve should energize for approximately 7.5
seconds. This should supply 140cc. of water to the ice-
maker, or approximately 4.75oz. If this is not the case,
the fill amount can be adjusted with the water fill adjust-
ment screw. (See Figure 6-4)
To increase the fill amount, turn the water fill adjustment
screw counterclockwise. To decrease the fill amount,
turn the water fill adjustment screw clockwise. A 360°
turn will affect the fill by 40cc. A 180° turn will effect the
fill by 20cc.
ICEMAKER DISASSEMBLY
Module/Motor Assembly Removal
To remove the module/motor assembly, first remove the
cover and the shut-off arm. Then, extract the
module/motor assembly mounting screws and pull the
module from the support. (See Figure 6-5)
Mold/Heater Assembly Removal
To remove the mold/heater assembly, first remove the
cover and the shut-off arm. Insert a Phillips head
screwdriver into the access holes and extract the
screws. Then, pull the mold/heater assembly from the
support. (See Figure 6-5)
Ejector Blades and/or Ice Stripper Removal
To remove the ejector blades and/or ice stripper, first
remove the cover and the shut-off arm and disconnect
the mold/heater assembly from the support. (See
Figure 6-5) Then, pull the ejector blades and/or ice
stripper from the mold.
Icemaker Thermostat Removal
To remove the icemaker thermostat, first remove the
cover and the shut-off arm and disconnect the
mold/heater assembly from the support. (See Figure 6-
5) Then, use a needle-nose pliers to grasp one of the
retaining clips and pull out. (See Figure 6-6)
