7-4
Component Access/Removal
7011902 - Revision A - October, 2009
International Integrated
International Integrated
(ICB700 Base)
(ICB700 Base)
Series
Series
Side Trim Molding Strip Removal (All Base Units)
Side trim molding strips are held in place by two unit-to-
cabinet brackets which are attached to the sides of the
cabinet.
NOTE: Removing the drawers first will make this task
easier.

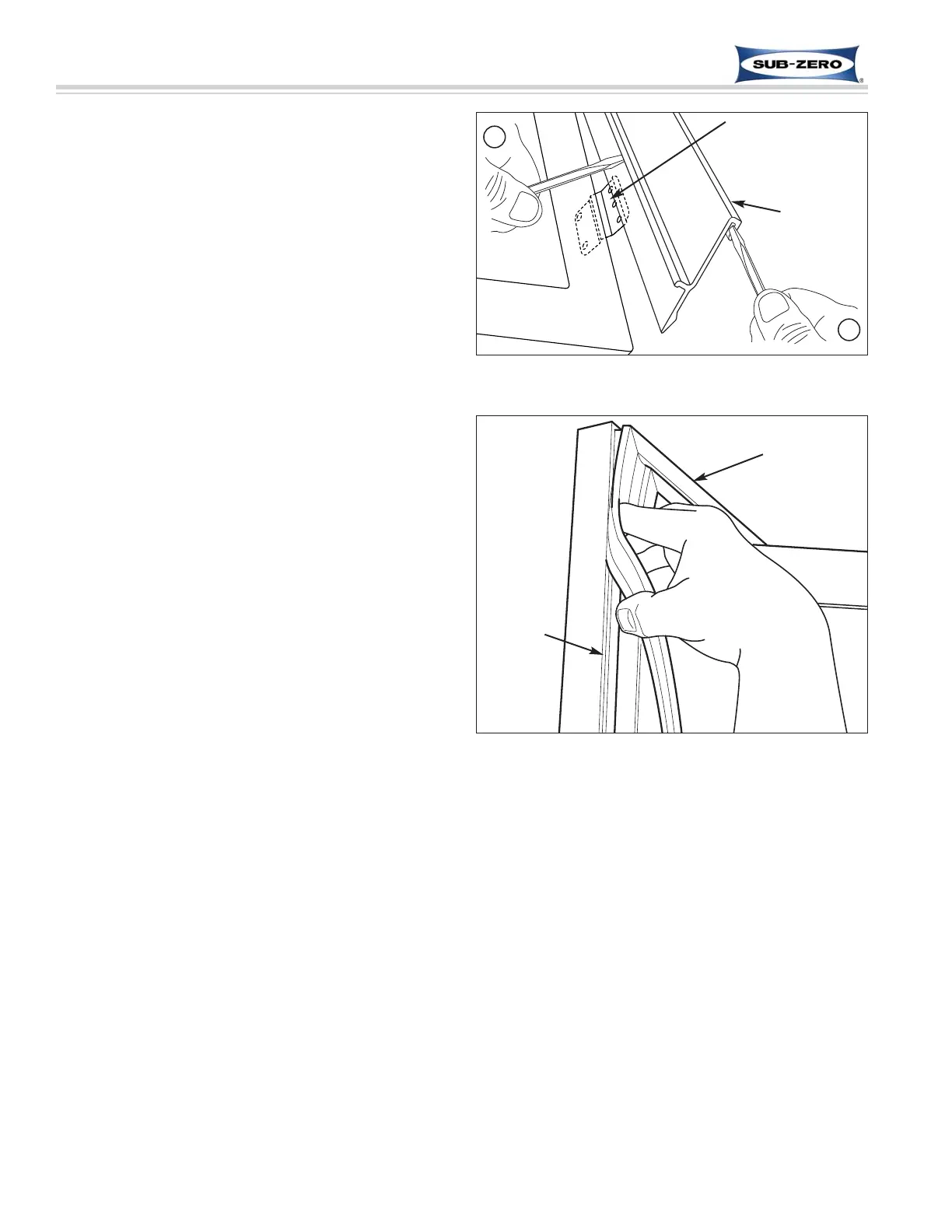

To remove side trim molding strips (See Figure 7-4):
1. Insert a straight-blade screwdriver in channel at
bottom of molding, then gently pull molding forward
until face-frame edge of molding is accessible.
2. Place another straight-blade screwdriver under
face-frame edge and gently work molding away
from face-frame and out of the two unit-to-cabinet
brackets.
Drawer Gasket Removal (All Base Units)
An extruded dart at the back of the drawer gaskets is
pressed into retaining channels that are molded into
drawer liners.
NOTE: Drawer assemblies must be removed from unit
in order to remove and/or install gaskets.
To remove a drawer gasket, simply pull gasket from the
retaining channel (See Figure 7-5).
