7-6
Component Access/Removal
7011902 - Revision A - October, 2009
International Integrated
International Integrated
(ICB700 Base)
(ICB700 Base)
Series
Series
Mullion Divider Removal (ICB700BCI Only)
The mullion divider assembly is set between the two
drawer areas.
To remove a mullion divider (See Figure 7-9):
1. Remove display wire harness from wire clip.
2. Reach into lower drawer compartment and push
divider upwards.
Wire Tray Removal (ICB700BR, ICB700BFI Only)
The wire tray is rests on pegs at the left and at the back
right corner of the duct cover. It is set between the two
drawer areas.
To remove a wire tray (See Figure 7-10):
1. Remove display wire harness from wire clip.
2. Lift right side of wire tray up, then pull it to the right
and out of the compartment.
NOTE: On the model ICB700BF, the screw under the
tray that supports the back right corner may need to be
loosened prior to step 2 above.
Drawer Closer Assembly Removal (All Base Units)
Drawer closer assemblies are located on the right side
wall. Two screws secure each assembly to the wall.
To remove a drawer closer assembly, extract screws
that secure drawer closer to wall and pull drawer closer
assembly from wall. (See Figure 7-11)

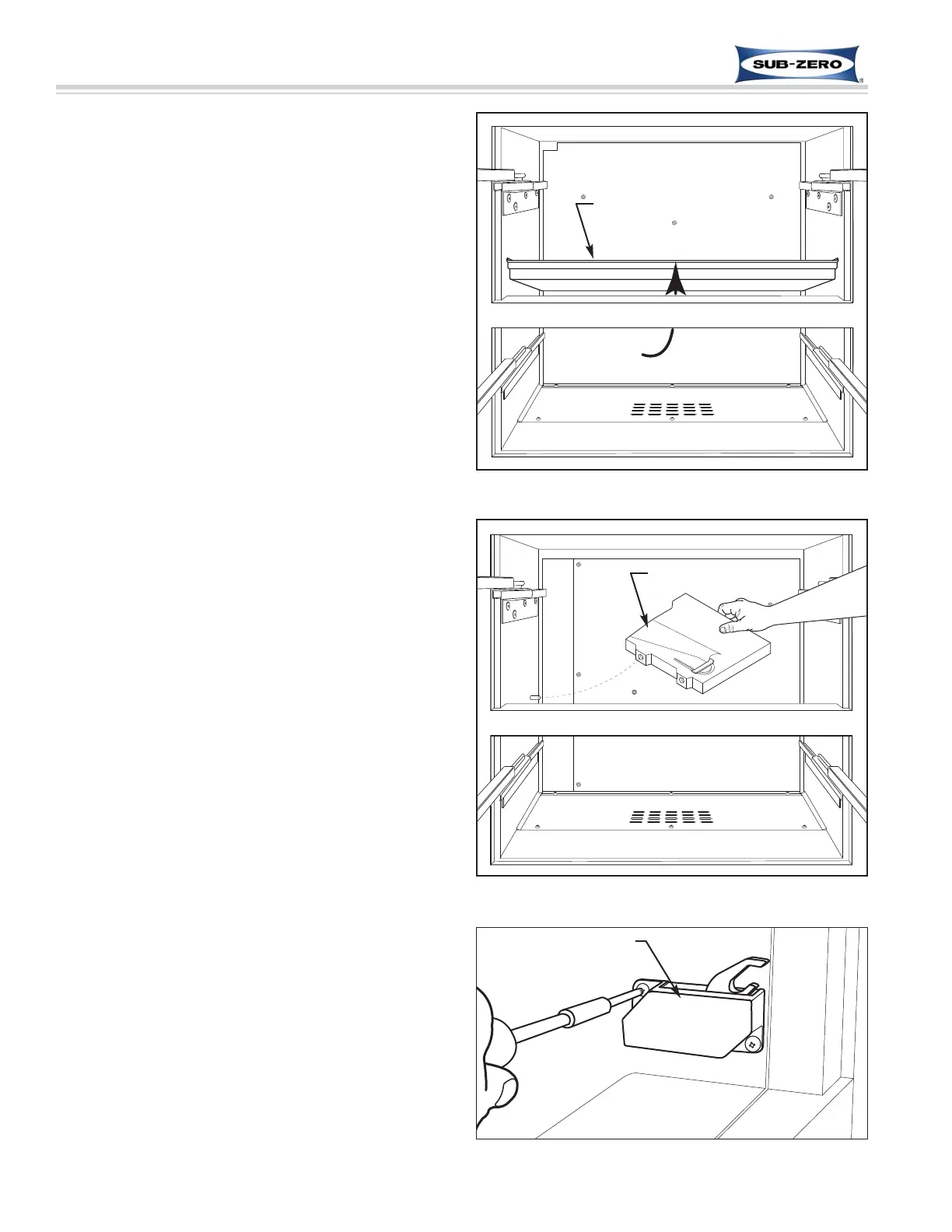

Figure 7-9. Mullion Divider Removal (ICB700BCI)
Push divider
upwards
Figure 7-11. Drawer Closer Assembly Removal
Drawer Closer Assy
Mullion Divider
Figure 7-10. Wire Tray Removal (ICB700BFI Shown)
Wire Tray
