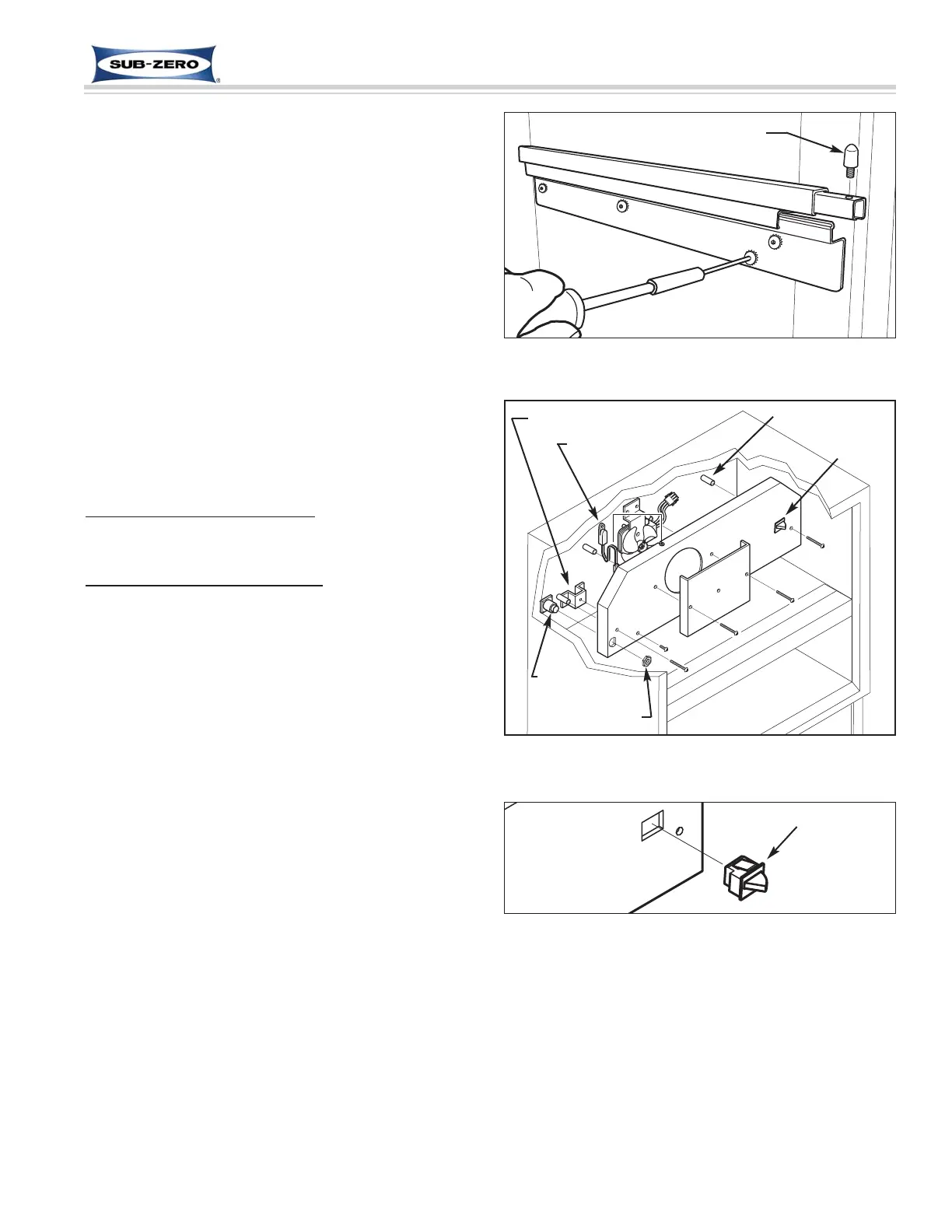

Figure 7-12. Drawer Slide Assembly & Pin
Drawer Slide Assy
White Thread Pin
Drawer Slide Assembly Removal (All Base Units)
There are four drawer slide assemblies, two on each
side wall. Drawer slide assemblies are attached to side
walls with Allen-head screws passing through the draw-
er slide bracket into blind threaded inserts.
To remove a drawer slide assembly, extract mounting
screws with a 5/32" Allen-head wrench, and pull drawer
slide assembly from wall. (See Figure 7-12)
NOTE: The white thread pins at end of drawer slides
are replaceable. Screw pins counterclockwise to
remove them. (See Figure 7-12)
Refrigerator Fan Baffle and Fan Shroud Removal
(ICB700BCI Only)
Screws pass though the refrigerator fan shroud and
baffle into screw grommet/stand-offs and a grounding
bracket to secure the shroud and baffle to back wall.
Refrigerator Fan Baffle Removal
(See Figure 7-13):
1. Extracting the two mounting screws.
2. Pull baffle forward.
Refrigerator Fan shroud Removal
(See Figure 7-13):
1. Extracting all mounting screws.
2. Remove nut from display wire harness Methode
connector and pull shroud forward slightly.
3. Remove thermistor from key-hole slot at top
4. Disconnect light switch electrical leads, and pull
shroud out.
Refrigerator Light Switch Removal (ICB700BCI
Only)
To remove the refrigerator light switch, the fan shroud
must be removed first. Then, at back side of fan
shroud, depress tabs on each side of switch while
pushing switch out. (See Figure 7-14)
Fan Baffle
Fan Shroud
Methode
Connector
Nut
Ground Bracket
Stand-off
Figure 7-13. ICB700BCI Fan Baffle & Shroud
Thermistor
Light
Switch
Light Switch
Fan Shroud
Figure 7-14. ICB700BCI Refrigerator Light Switch
