Subaru 2003 Forester - Fuses and circuits

12-6
Specifications

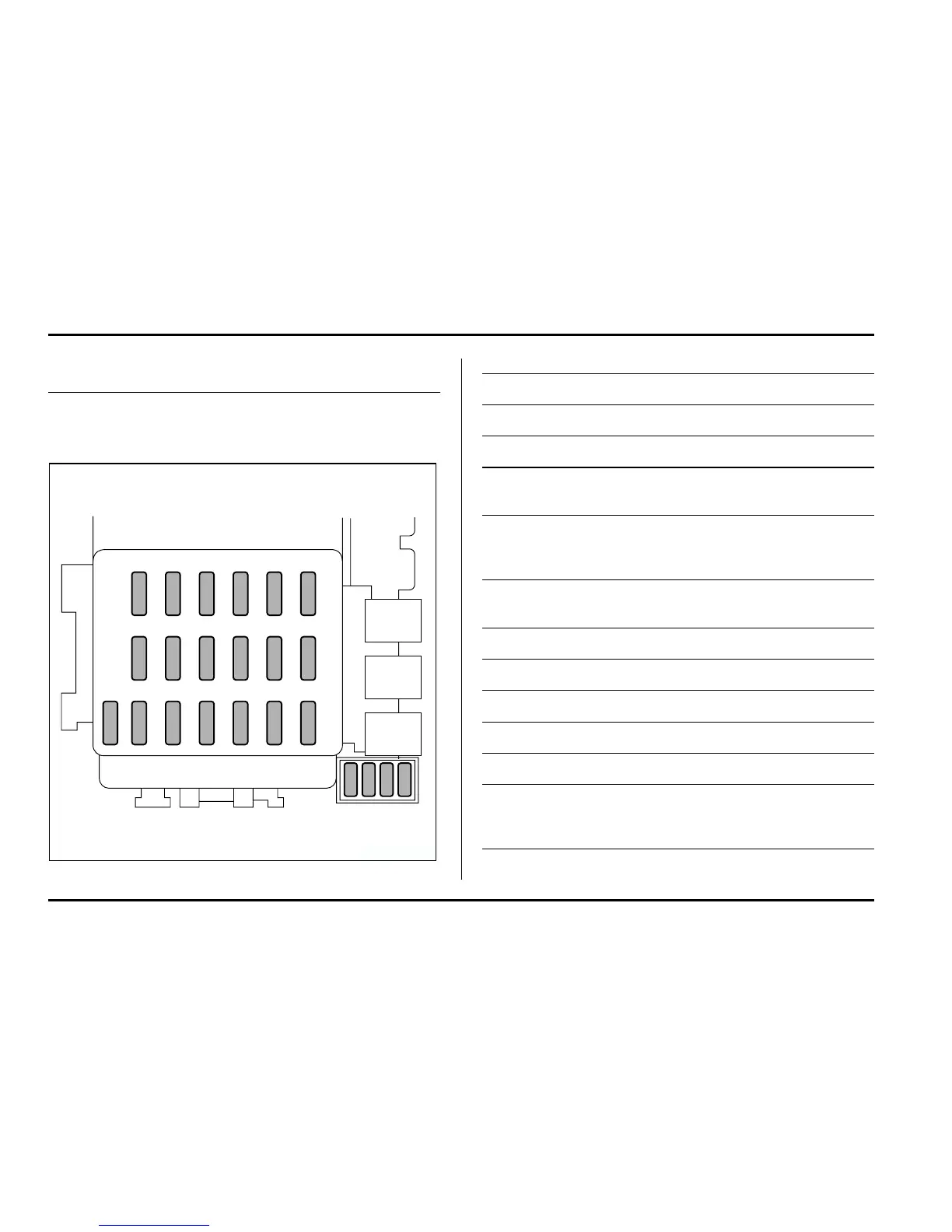

Fuses and circuits
 Fuse panel located behind the coin
tray
1
23456
78
910
11
12
13
14 15
16 17 18 19
20 21 22 23
HSC001BB
Fuse panel Fuse rating Circuit
1 15A y Heater fan
2 15A y Heater fan
3 15A y Power door lock
y Remote keyless entry
4 20A y Cigarette lighter
y Remote controlled rear
view mirrors
5 10A y Tail light
y Parking light
6 15A y SRS airbag
7 15A y Fog light
8 20A y ABS solenoid
9 15A y Radio
10 Empty
11 15A y Engine ignition system
y SRS airbag
y AT control system
