Seat, seatbelt and SRS airbags
The SRS side airbag is basically not designed to de-
ploy if the vehicle is involved in a frontal collision or is
struck from behind. Examples of such accidents are il-
lustrated.
1) First impact
2) Second impact

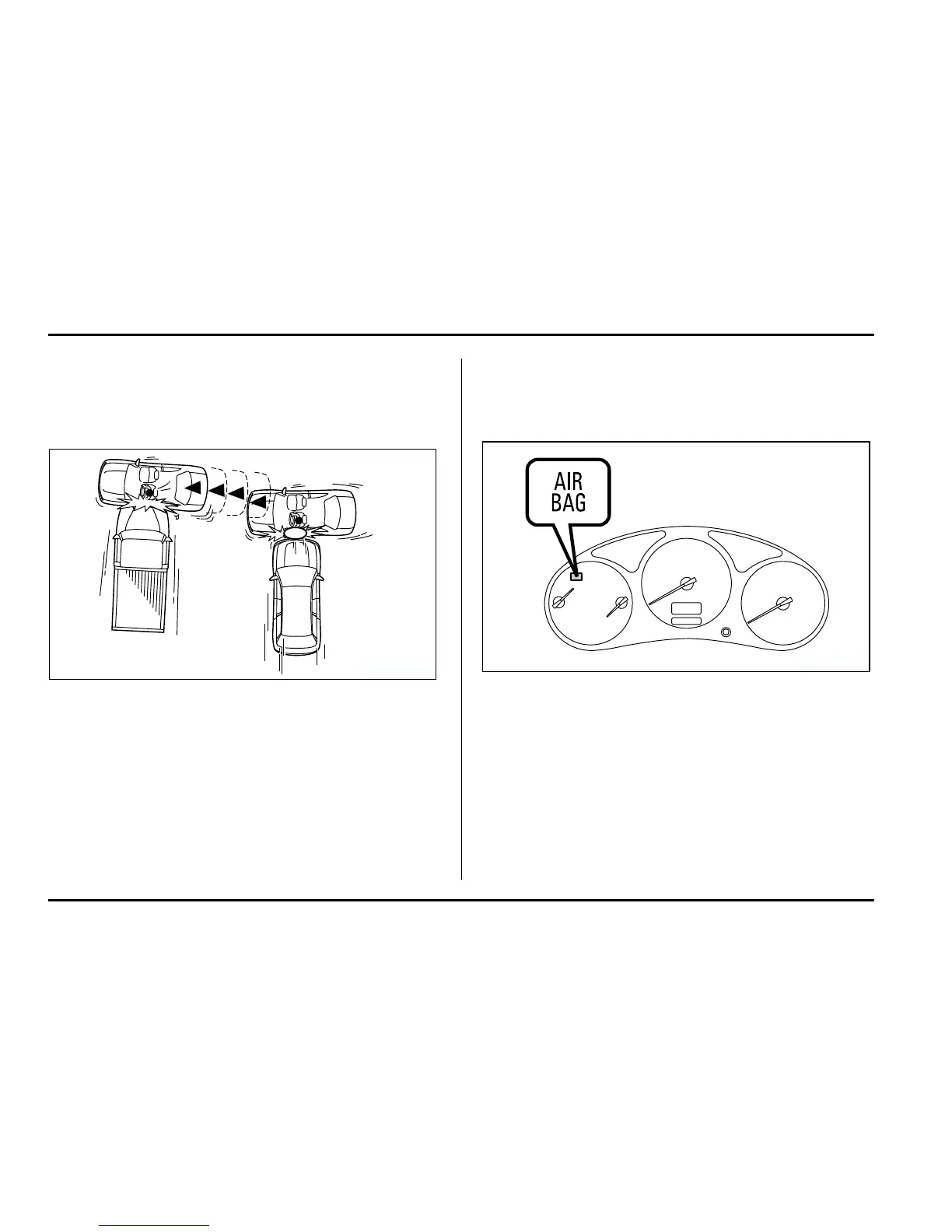

In an accident where the vehicle is struck from the side
more than once, the SRS side airbag deploys only
once.
Example: In the case of a double side impact collision,
first with one vehicle and immediately followed by an-
other from the same direction, once the SRS side air-
bag is activated on the first impact, it will not be
activated on the second.
SRS airbag system monitors
A diagnostic system continually monitors the readi-
ness of the SRS airbag system while the vehicle is be-
ing driven. The SRS airbag system warning light
“AIRBAG” will show normal system operation by light-
ing for about 6 seconds when the ignition key is turned
to the “ON” position.
The following components are monitored by the indi-
cator:
y Front sub sensor (Right hand side)
y Front sub sensor (Left hand side)
2
1
HS1102BB
HS1103BA
