Subaru 2007 Impreza - Page 38

* Refer to STIS (Subaru Technical Infromation System) *** New Feature
2007 Subaru B9 Tribeca Page 38
June 2006
2007 New Model Update (916)
Wire ColorWire Color
Wire ColorWire Color
Wire Color
DescriptionDescription
DescriptionDescription
Description
Value For Each TerminalValue For Each Terminal
Value For Each TerminalValue For Each Terminal
Value For Each Terminal

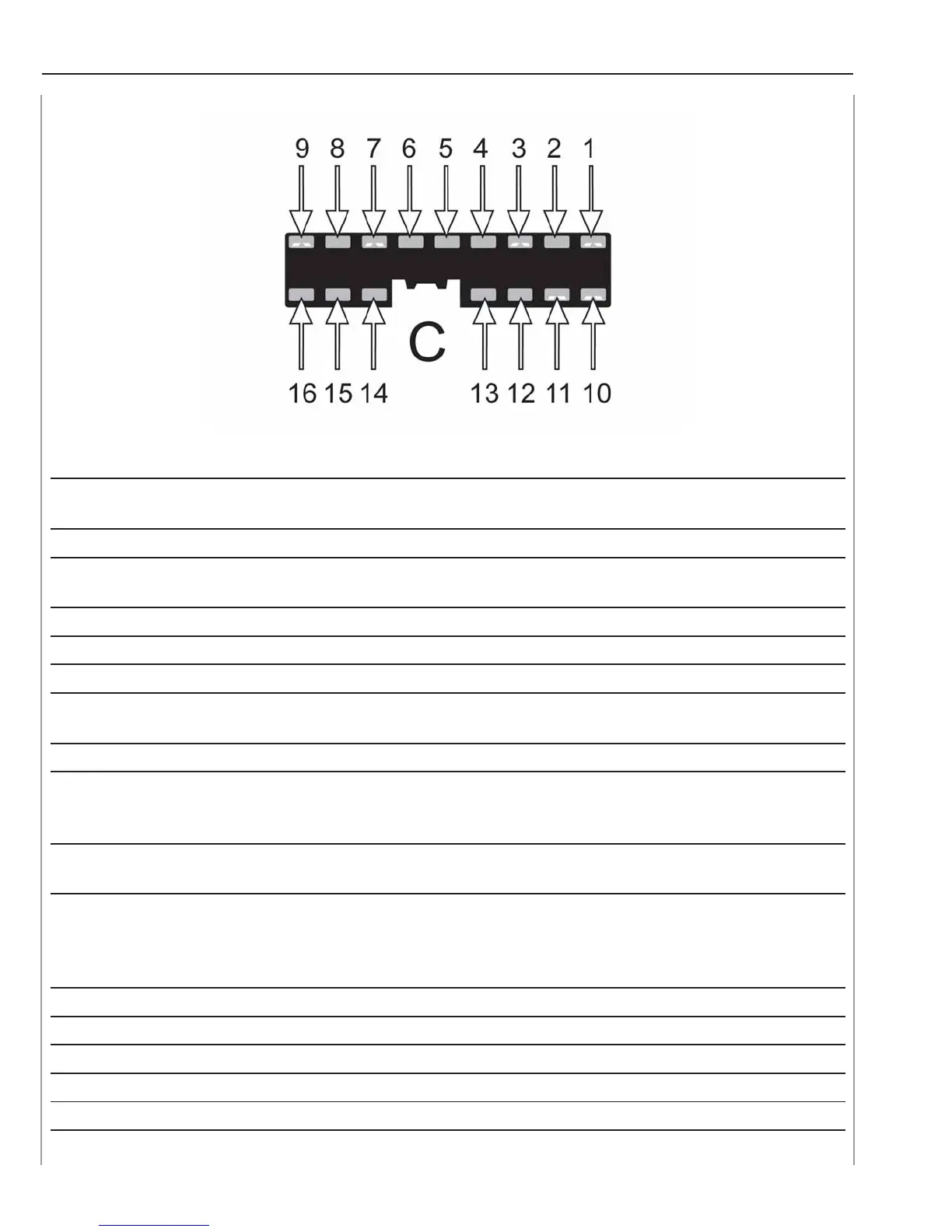

1. Red/Black Starter Motor Battery voltage normal start only
Tracer
2. Blank
3. Red/Black Starter Motor Battery voltage normal start only
Tracer
4. Blank
5. Blank
6. Blank
7. White/Black Rear Gate Motor Lock Battery voltage during opening of Rear
Tracer (Trunk Motor Lock) gate (trunk lock)
8. Blank
9. Brown/Red Battery voltage from Normal operation 0 volts
Power Windows relay RES operation battery voltage.
coils
10. Brown/Yellow Lock output Battery voltage. Momentarily drops to 0
Tracer during locking of the doors for RES
11. Black/Brown Immobilizer Interface Greater than 11 volts, dropping .75 volts during
RES start.
After RES start greater than 9.
Normal operation greater than 12.
