12-8 Specifications

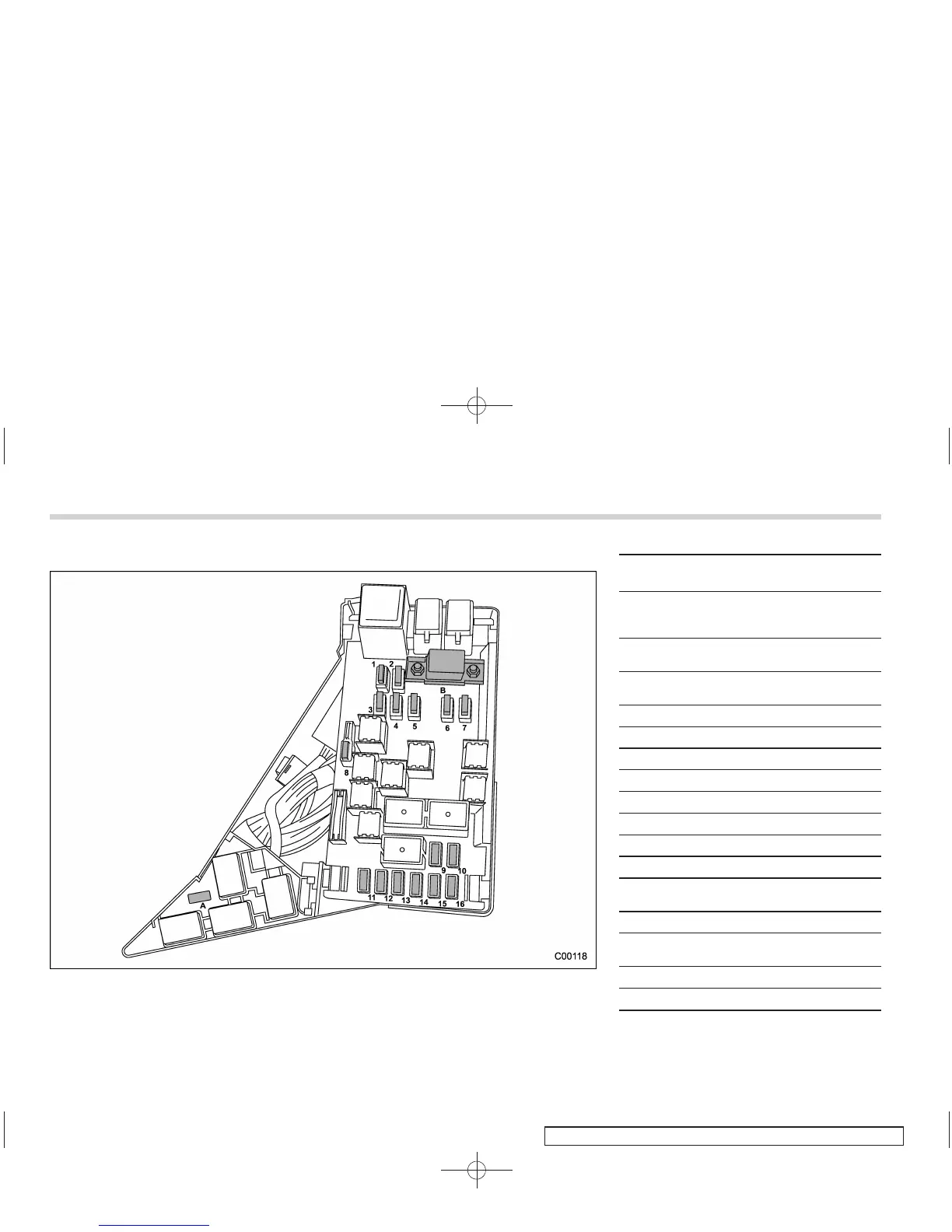

& Fuse panel located in the engine compartment
A) FWD socket (AT vehicles – except Turbo models and 3.0-liter models)
B) Main fuse
Fuse
panel
Fuse
rating
Circuit
1 30A
. ABS unit
. Vehicle dynamics control
unit
2 25A
. Main fan (3.0-liter mod-
els)
3 25A
. Sub fan (Except 3.0-liter
models)
4
25A
. Main fan
5
20A
. Audio
6
15A
. Headlight (right side)
7 15A
. Headlight (left side)
8 20A
. Backup light
9 15A
. Horn
10 25A
. Rear window defogger
11 15A
. Fuel pump
12 15A
. Automatic transmission
control unit
13 7.5A
. Engine control unit
14 15A
. Turn and hazard warning
flasher
15 20A
. Parking switch
16 7.5A
. Alternator
