4-3. Do-it-yourself maintenance
BRZ_EGE

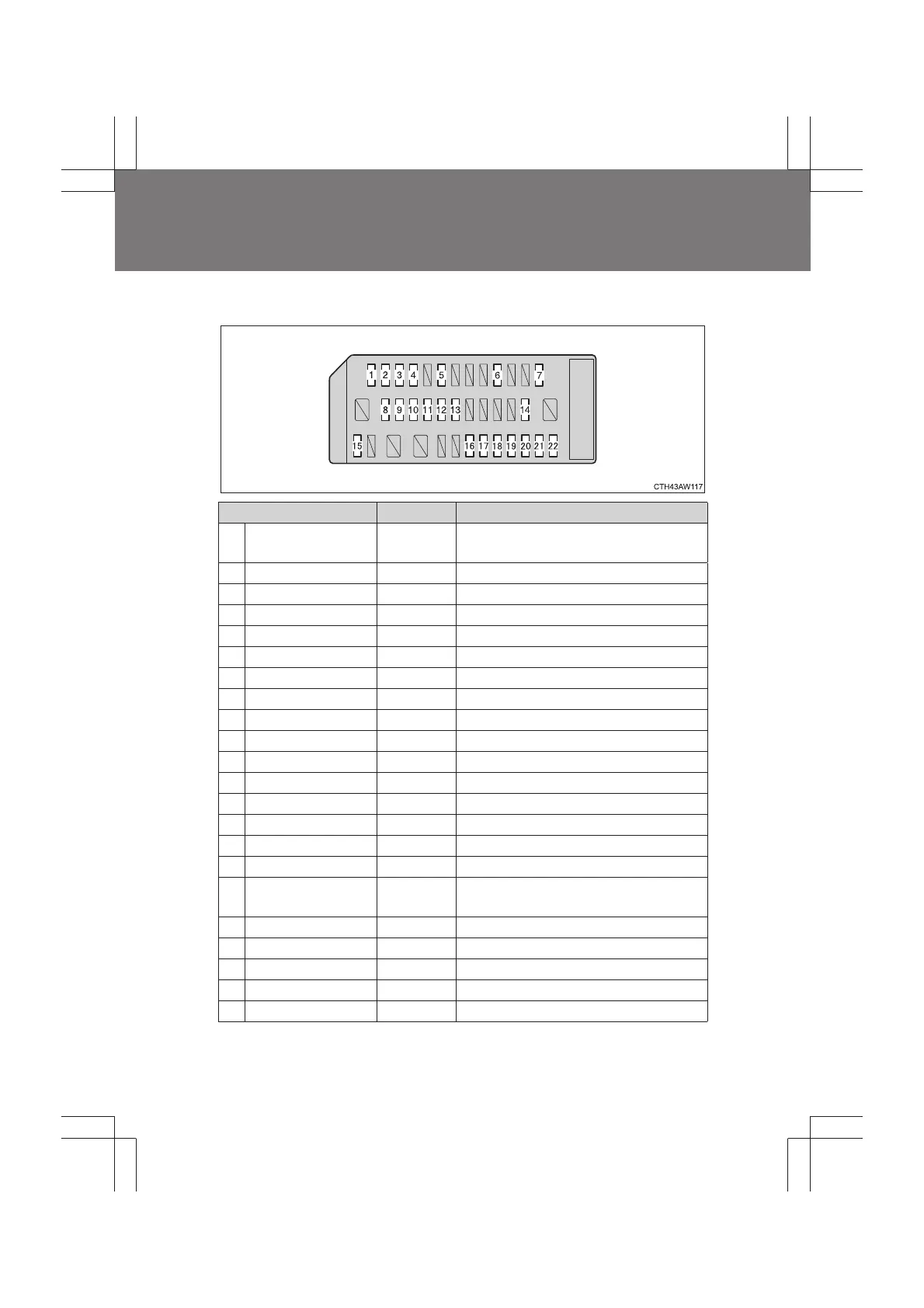

■ Instrument panel
Fuse Ampere Circuit
1
ECU ACC 10 A
Main body ECU, outside rear view
mirrors
2
P/POINT No.2 15 A Power outlet
3
PANEL 10 A Illumination
4
TAIL 10 A Tail lights
5
DRL 10 A Daytime running light system
6
STOP 7.5 A Stop lights
7
OBD 7.5 A On-board diagnosis system
8 HEATER-S 7.5 A Air conditioning system
9
HEATER 10 A Air conditioning system
10 FR FOG LH 10 A Left-hand front fog light
11
FR FOG RH 10 A Right-hand front fog light
12 BK/UP LP 7.5 A Back-up lights
13
ECU IG1 10 A ABS, electric power steering
14 AM1 7.5 A Starting system
15
AMP 15 A Audio system
16 AT UNIT 15 A Transmission
17
GAUGE 7.5 A
Gauge and meters, keyless access
with push button start system
18 ECU IG2 10 A Engine control unit
19
SEAT HTR LH 10 A Left-hand seat heater
20 SEAT HTR RH 10 A Right-hand seat heater
21
RADIO 7.5 A Audio system
22 P/POINT No.1 15 A Power outlet
