PREPARATION - BEFORE INSTALLATION:
SUBARU OF AMERICA
PAGE
2/10
DATEISSUE
00
Remove liner from Sill Plate. After removal of part liner, to prevent
contamination, limit touching adhesive side of Sill Plate by handling
on the edges.
2
3
4
Notes to the Installer
1. Read the entire installation instructions prior to beginning the
installation of the accessory.
2. Ensure that the vehicle is properly protected in the area that
the accessory is to be installed.
3. To prevent vehicle damage, never place tools on top of painted
surfaces, seats, dash pad, console or floor carpet / mat.
4. Always wear appropriate safety gear to include gloves and eye
protection when required.
1. This product should be installed with proper installation tools.
2. Install this product while observing all warnings and precautions
stated in this instruction booklet.
3. VERY IMPORTANT: Thoroughly wash vehicle with Soap and
Water.
4. Parts storage should be flat at room temperature and in a clean
dry place. Care should be taken to avoid a dusty environment.

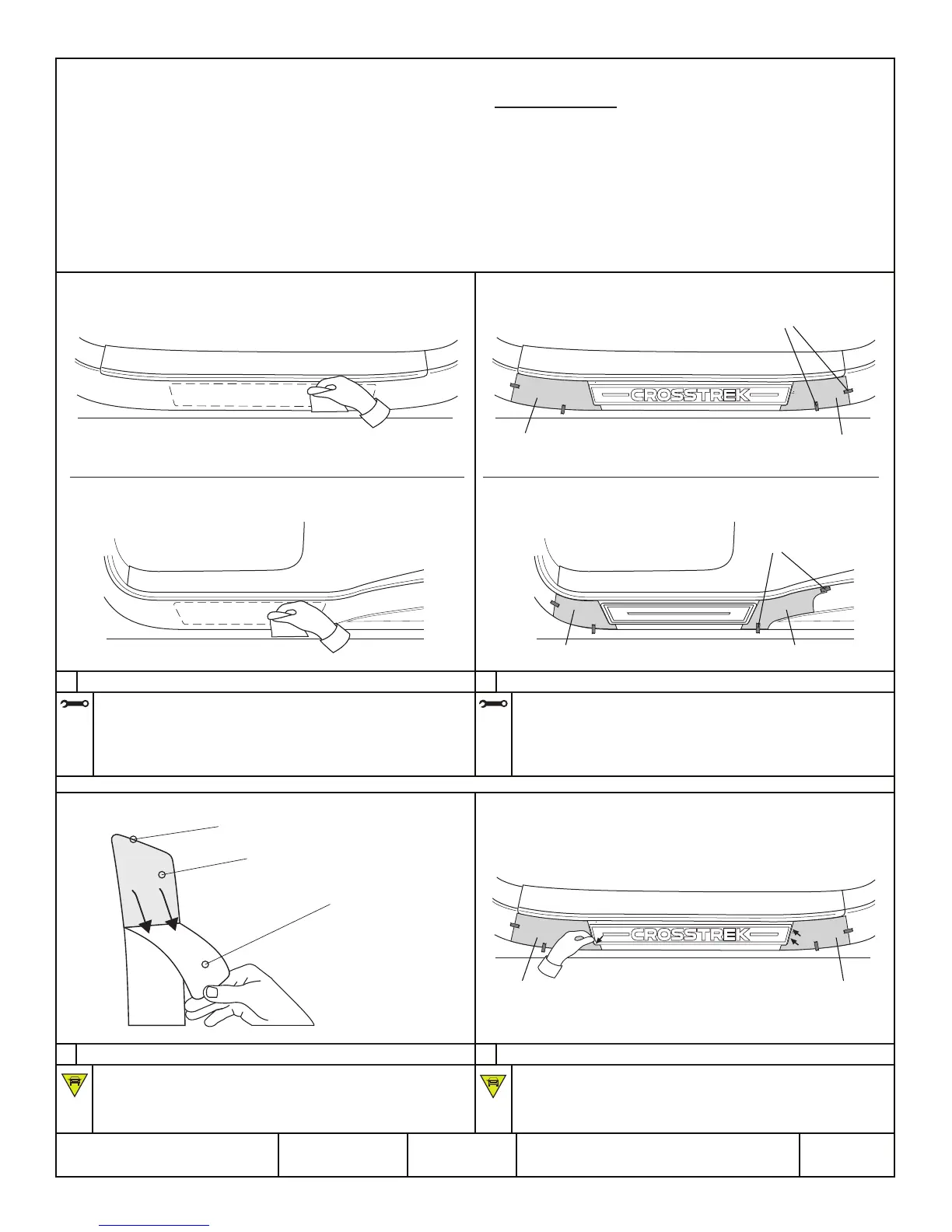

Dry Fit
Thoroughly wash vehicle with a soft lint-free cloth. Wipe front
and rear sill areas where the Sill Plates will be installed with
alcohol wipes. Allow the area to dry completely.
1
Alcohol
Separate Liner
02/10/17
Liner
Sill Plate
Adhesive side of Sill Plate
Sill Plate Alignment
Cut out supplied templates. Slide templates under plastic panel.
Line up edges of the plastic panel with the lines on the templates.
Use masking tape to secure templates into place. Locate front and
rear Sill Plates into place using the templates as shown above.
NOTE: Sill Plate should remain on flat surface only, not on radius.
Start by aligning the edge of Sill Plate with the template as shown.
Make sure the top edge of the Sill Plate is aligned with the plastic
panel and lay into position.
NOTE: If mislocated, lift straight up and reposition into correct location.
DESCRIPTION
Side Sill Plate
Left Front Door Sill
Left Rear Door Sill
Plastic Panel
FRT Sill Plate Rear TemplateFRT Sill Plate Front Template
RR Sill Plate Front Template RR Sill Plate Rear Template
Masking
Tape
Left Front Door Sill
Left Rear Door Sill
Plastic Panel
Plastic Panel
Masking
Tape
Plastic Panel
FRT Sill Plate Rear Template
FRT Sill Plate Front Template
Left Front Door Sill
Plastic Panel
To Next Page
