19
-

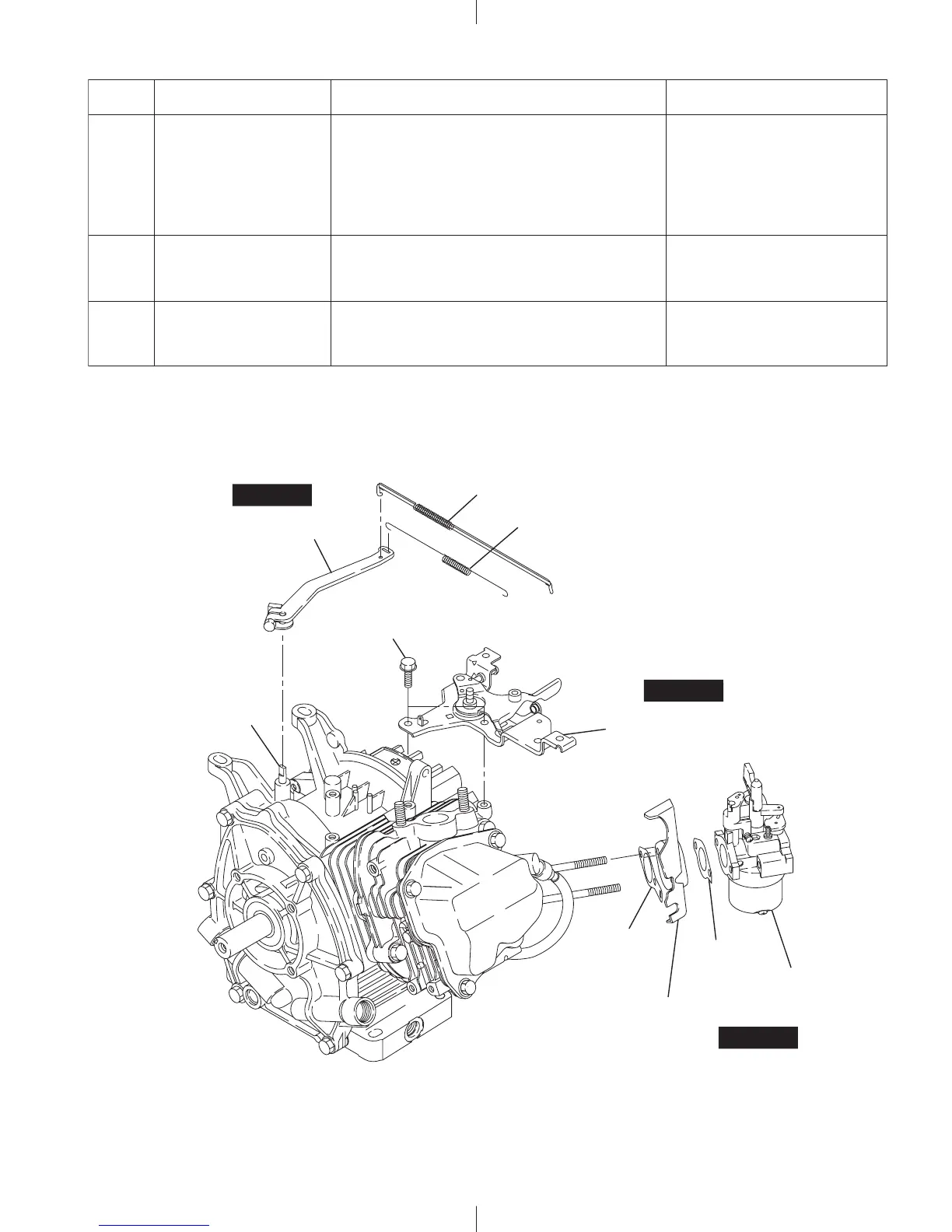

Fig.5-7
Step Parts to remove
Remarks and procedures
Fasteners
9
Governor system (1) Loosen the bolt and remove the governor
lever from the governor shaft. There is no
need to remove the bolt.
(2) Remove the governor spring.
(3) Remove the governor rod and the rod
spring from the carburetor.
10 mm box spanner or
spanner
M6 × 30mm : 1 pc.
10
Carburetor, Insulator Remove the carburetor from the cylinder head.
Remove the insulator.
11
Speed control lever and
Bracket
Remove the speed control lever and bracket
from the cylinder head.
10 mm box spanner
M6 × 12mm : 2 pcs.
STEP 9
STEP 10
STEP 11
GOVERNOR LEVER
GOVERNOR ROD
and ROD SPRING
GOVERNOR SPRING
SPEED CONTROL LEVER
and BRACKET
INSULATOR
GASKET
GASKET
M6 x 12 BOLT : 2 pcs.
CARBURETOR
GOVERNOR SHAFT
To Next Page
