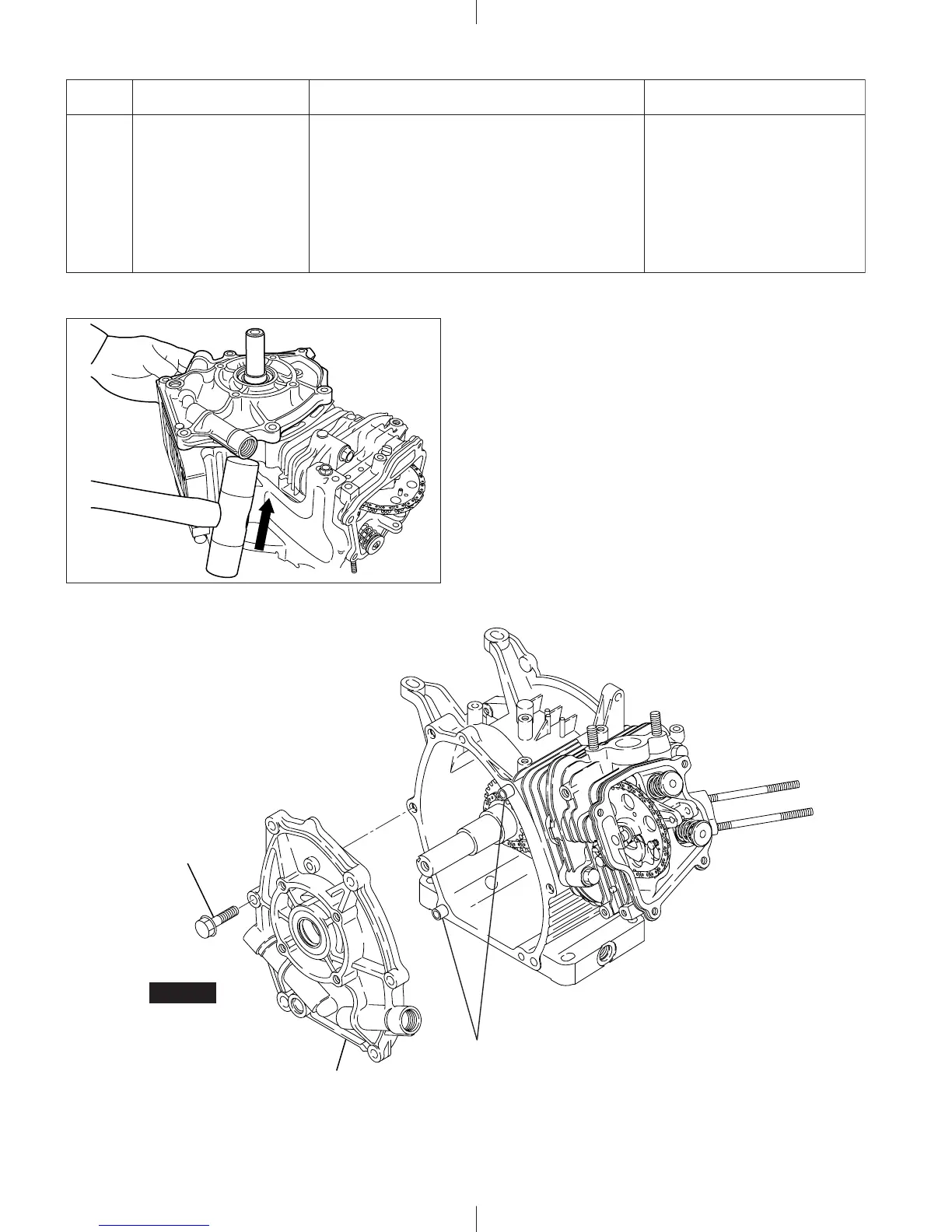

Fig. 5-16
Step Parts to remove Remarks and procedures Fasteners
21
Main bearing cover (1) Remove the flange bolts of main bearing
cover from the crankcase.
Remove the main bearing cover while
tapping gently around the cover using
a plastic hammer or similar tool.
(See Fig. 5-16)
Be careful not to damage the oil gauge
or oil seal or not to lose the pipe knocks.
12 mm box spanner
M8 × 35mm : 6 pcs.
(Models EX13, 17 and 21)
M8 × 35mm : 7 pcs.
(Model EX27)
Fig. 5-15
MAIN BEARING COVER
M8 x 35mm : 6 pcs.
(MODELS EX13,
17 AND 21)
M8 x 35mm : 7 pcs.
(MODEL EX27)
PIPE KNOCK
STEP 21
