62
-
GREASE
SHAFT HOOK
Position where the inner end of the
spring touches to the rib of the bearing
13-1-2 REASSEMBLY PROCEDURE
(1) Put the reel back into the case
-1 Apply grease to the surface of the case.
(Fig.13-3)
-2 Adjust the position of the inner end of the
spring in the reel. (Fig. 13-4)
-3 Hold the reel in such a way that the inner end
of the spring hooks onto the shaft hook and
then place the reel carefully back into the case.
-4 Turn the reel gently counterclockwise to
confirm that the spring is hooked.

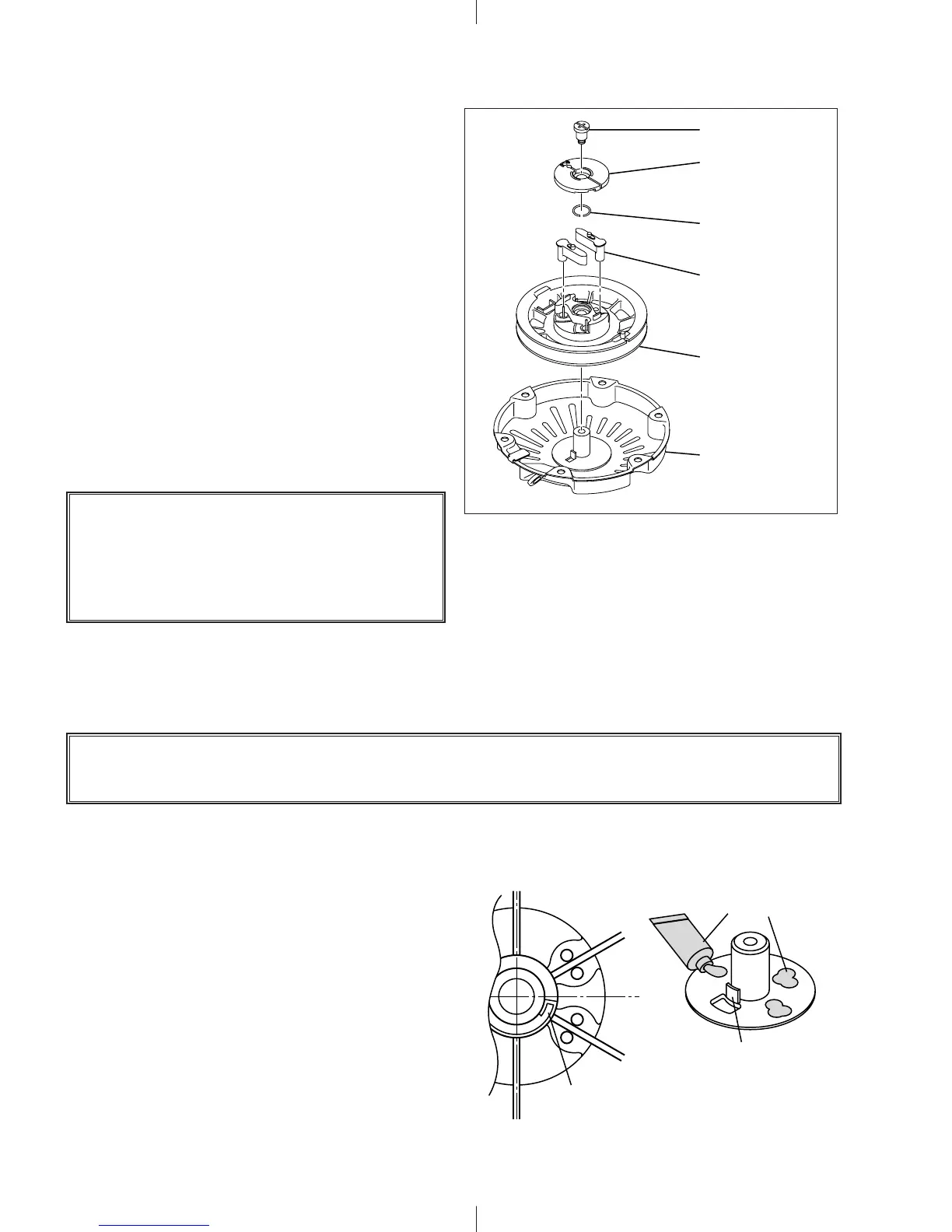

Fig. 13-2
Fig. 13-4
Fig. 13-3
(2) Remove the components. (Fig. 13-2)
-1 Grip the case and loosen the set screw.
-2 Take out the set screw, the ratchet guide,
the friction spring and the ratchet in that
order.
(3) Remove the reel. (Fig. 13-2)
-1 Hold down the reel gently to keep it from
escaping from its case and rotate it slowly
back and forth by quarter turns until it moves
smoothly.
-2 Lift the reel up little by little and take it out of
the case.
-3 If the spring is about to pop out of the reel,
repeat steps (3)-1 and (3)-2.
Disassembly is completed.
NOTE:
Put on the protective glasses prior to start reassembly.
NOTE:
Since the spring is stored in the reel, make sure
not to drop or shake the reel after removing it.
Place it on a level surface such as a table.
SET SCREW
RATCHET
GUIDE
FRICTION
SPRING
RATCHET
REEL
STARTER CASE
