Subaru EX40 - Step 28: Crankshaft; Step 29: Oil sensor

- 26 -
Step Parts to remove Remarks and procedures Fasteners
28
Crankshaft (1) Remove the woodruff key (for the flywheel
magneto).
(2) Remove the crankshaft from the crankcase
by tapping its magneto side end with a plastic
hammer, taking care not to damage the oil seal.
(See Fig. 5-27)
Plastic hammer
29
[MODEL WITH
OIL SENSOR TYPE]
Oil sensor
(1) Remove the clamp.[Model without charge coil type]
(See Fig. 5-28)
(2) Remove the oil sensor from the crankcase.
M6 x 10mm : 1 pc.
M6 x 16mm : 2 pcs.

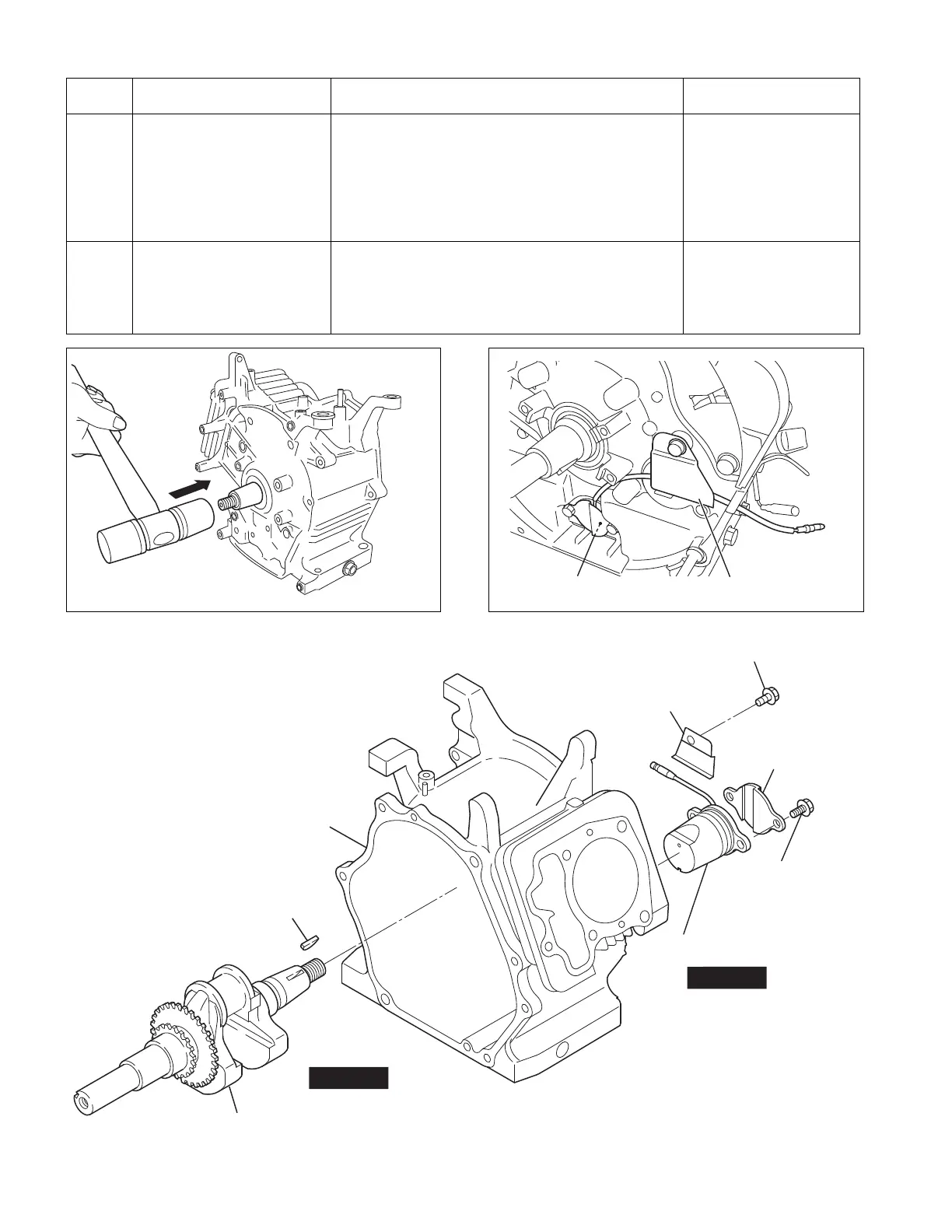

Fig.5-26
Fig.5-27 Fig.5-28
OIL SENSOR
WIRE CLAMP
CRANKSHAFT
WOODRUFF KEY
CRANKCASE
M6 x 16 BOLT and
WASHER : 2 pcs.
SHIELD PLATE
(For charge coil only)
OIL SENSOR
M6 x 10 TAPPING BOLT : 1 pc.
WIRE CLAMP
STEP 29
STEP 28
