(18) BAFFLE 1 (CASE)
The projection (upper) on the baffle 1 with the
crankcase and mount it (under) with the bolt.
[MODEL WITHOUT ELECTRIC STARTER]
M8× 12 mm bolt : 1 pc.
[MODEL WITH ELECTRIC STARTER]
Mount the electric starter and the charging coil,
referring to the illustrations of disassembly.
(17) SPARK PLUG
Remove any carbon deposits from the spark plug
and inspect the electrode for damage before
mounting. Replace with a new one, if necessary.
Spark plug : NGK BR-6HS (21 mm plug wrench)
(16) ROCKER COVER
Replace the gasket with a new one, and mount
the rocker cover.
M6 × 12 mm flange bolt : 4 pcs.

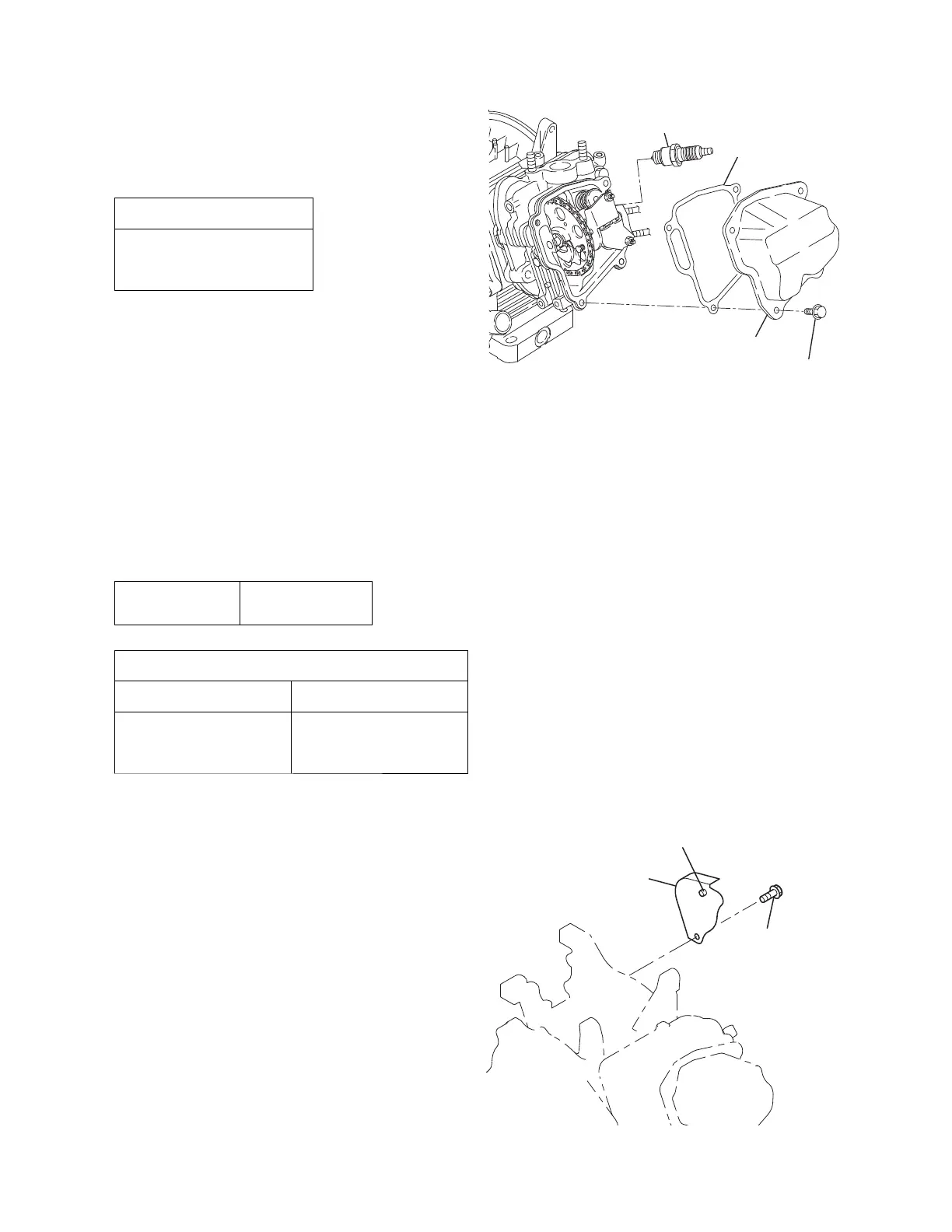

Fig.5-53
M8 x 12 BOLT : 1 pc.
PROJECTION
BAFFLE 1 (CASE)
Fig.5-52
SPARK PLUG
ROCKER COVER
GASKET
(ROCKER COVER)
M6 x 12 BOLT : 4 pcs.
Tightening torque
New spark plug Re-tightening torque
12.0 - 15.0 N
・
m
(120 - 150
kgf
・
cm
)
(8.7 - 10.8 ft
・
lb.)
23.0 - 27.0 N
・
m
(230 - 270
kgf
・
cm
)
(16.6 - 19.5 ft
・
lb.)
Electrode gap
0.6 - 0.7 mm
(0.024 - 0.028 in.)
Tightening torque
5.0 - 7.0 N
・
m
(50 - 70
kgf
・
cm
)
(3.6 - 5.1 ft
・
lb.)
