Subaru EX40 - (28) FUEL TANK and FUEL STRAINER; (29) MUFFLER

- 42 -
(2) Mount the muffler cover on the muffler.
M6 × 8 mm Bolt : 4 pcs.

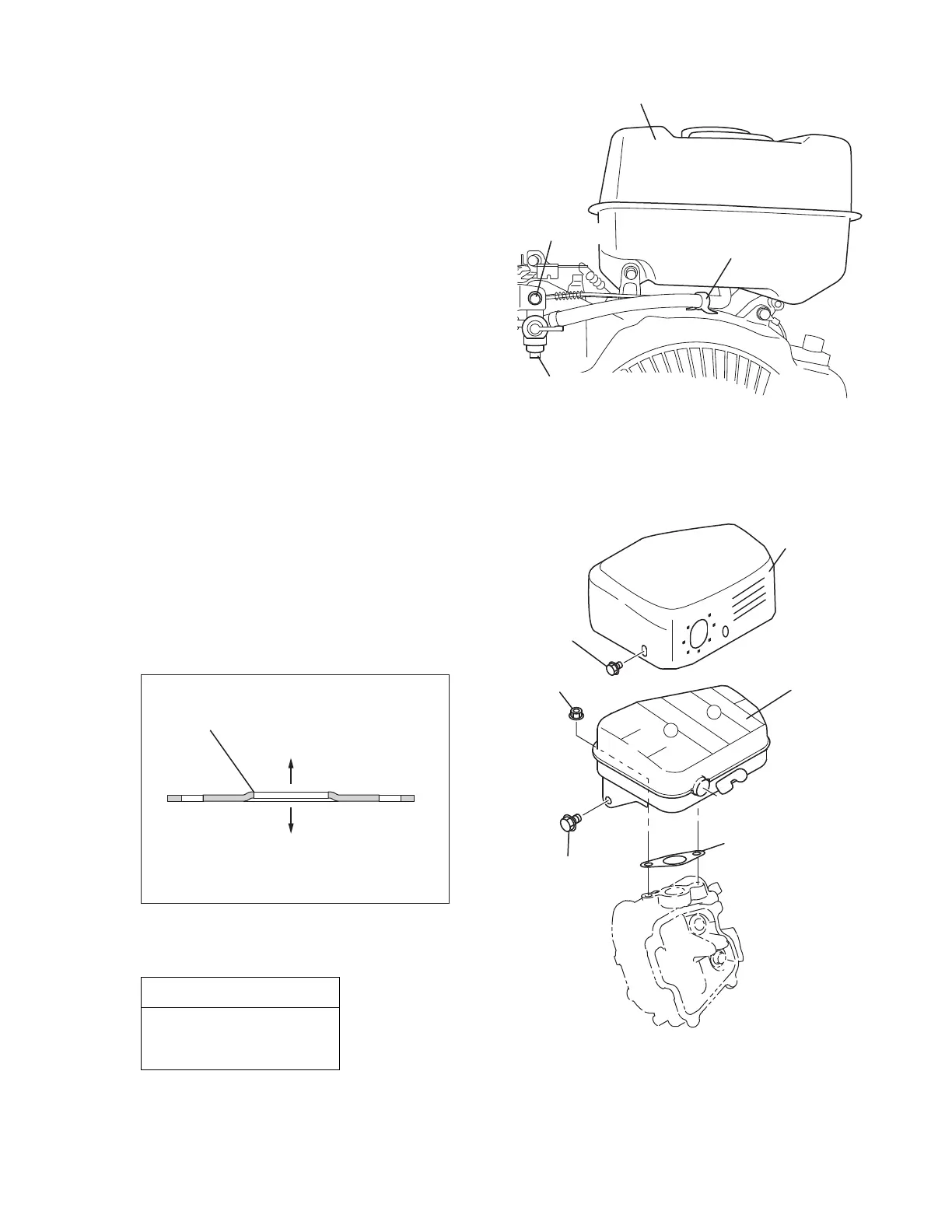

Fig.5-64
(29) MUFFLER
 (1)Mountthemufflerandthegasketonthe
cylinderhead.
NOTE : Be sure to remove any tape or cloth
used to cover the exhaust port
when the engine was disassembled.
M8 × 12 mm Bolt : 1 pc.
M8 Nut : 2 pcs.
MUFFLER SIDE
GASKET
(Attention to the direction of bulge forming)
Bulge forming
CYLINDER SIDE
 Take utmost care not to cut your hand
with the muffler gasket
MUFFLER
COVER
MUFFLER
GASKET
(Attention to the
direction of bulge
forming)
M8 x 12 BOLT
: 1 pc.
M8 NUT : 2 pcs.
M6 x 8 BOLT
: 4 pcs.
(28) FUEL TANK and FUEL STRAINER
(1) Mount the fuel tank to the crankcase, and
connect the fuel pipe to the fuel tank and the
fuel strainer. Hold the fuel pipe with the
clamp on the brower housing, and then
tighten the bolts and nuts for the fuel tank.
M8 nut : 2 pcs.
M8 × 25 mm bolt : 2 pcs.
(2) Connect the fuel pipe to the fuel strainer and
the carburetor. Mount the fuel strainer to the
speed control bracket.
M6 × 12 mm Bolt : 1 pc.
Clamp on the
brower housing
FUEL TANK
M6 x 12
BOLT : 1 pc.
FUEL STRAINER
Fig.5-63
Tightening torque
18.0 - 22.0 N
・
m
(180 - 220 kgf
・
cm )
(13.0 - 16.2 ft
・
lb.)
