Subaru Forester 2007 - Fuse Panel Located in the Engine Compartment

12-8 Specifications

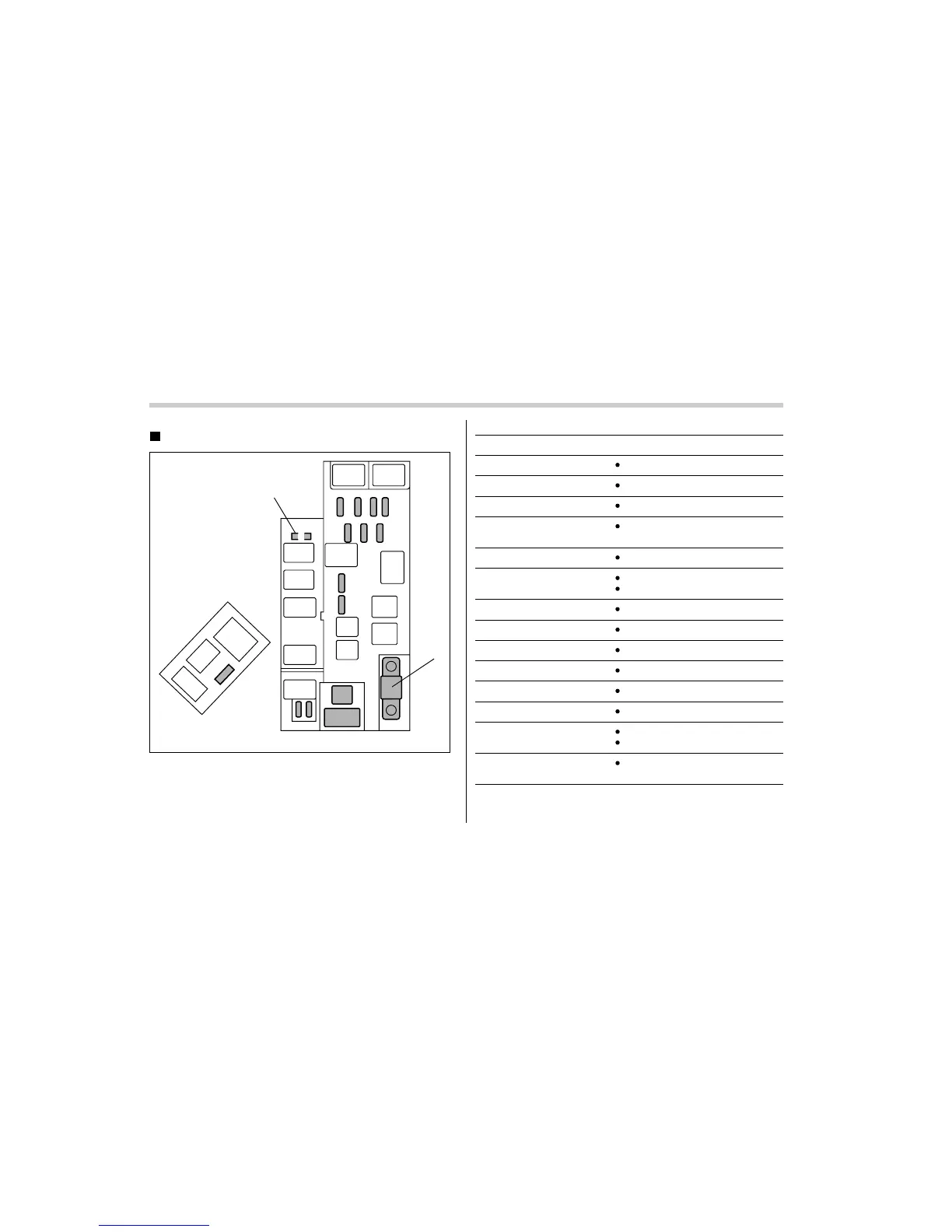

Fuse panel located in the engine compartment
A) FWD socket
B) Main fuse
A
1 2
4
3
B
5
6
7 8 9
10 11 12 13
C00105
1
4
Fuse panel Fuse rating Circuit
1 30A Radiator cooling fan (Main)
2 30A Radiator cooling fan (Sub)
3 30A ABS motor
4 30A Engine sensor (Non-turbo models
only)
5 20A Rear window defogger
6 15A Hazard warning flasher
Horn
7 15A Turn signal lights
8 10A Automatic transmission control unit
9 10A Alternator
10 15A Headlight (right side)
11 15A Headlight (left side)
12 20A Lighting switch
13 15A Clock
Interior light
14 10A Secondary air combination valve
(Turbo models only)
