2) The number of poles or pins, presence of a lock, and pin
number of each terminal are indicated in the sketch of each
connector.

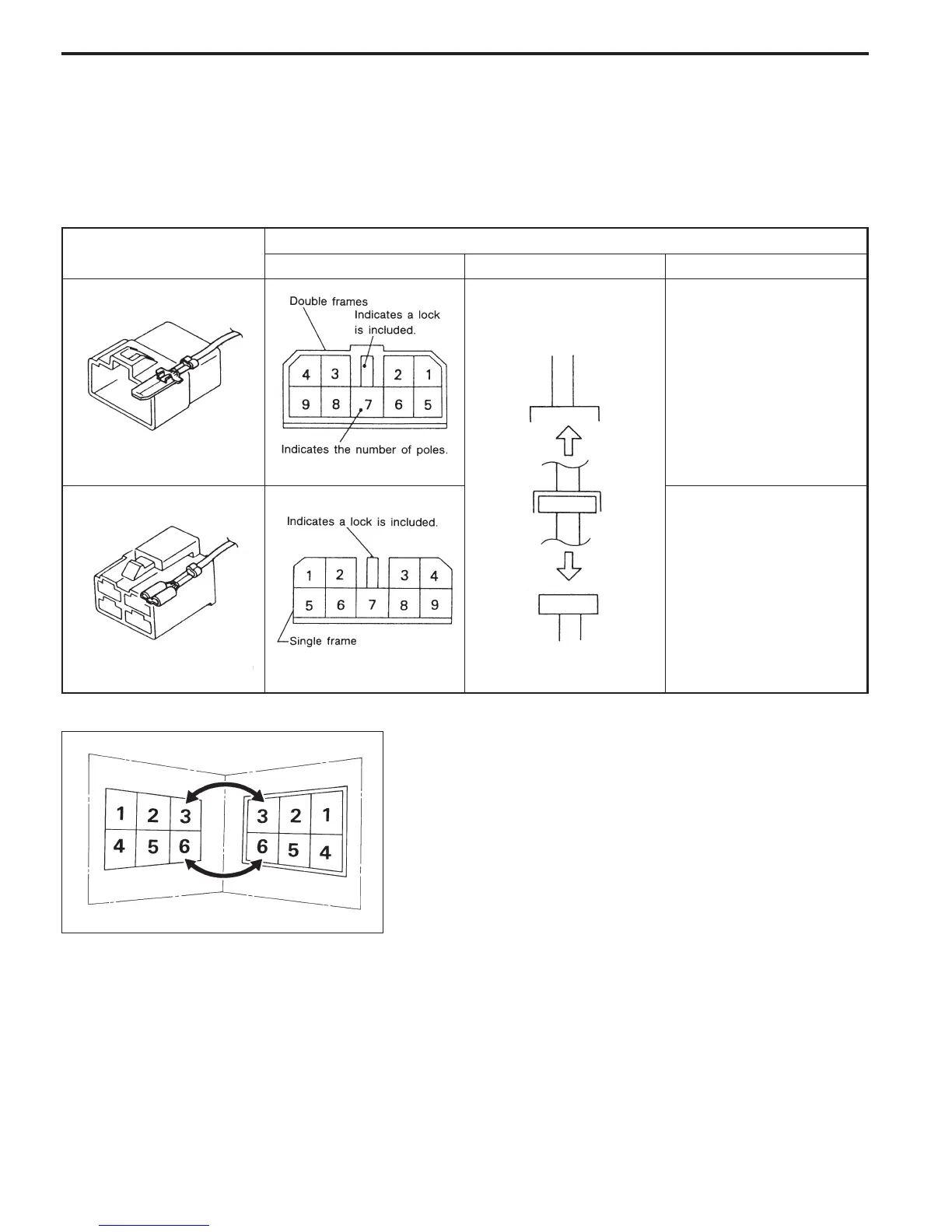

In the sketch, the highest pole number refers to the num-
ber of poles which the connector has. For example, the
sketch of the connector shown in figure indicates the con-
nector has 9 poles.
Connector used in vehicle
Connector shown in wiring diagram
Sketch Symbol Number of poles
G6M0194
G6M0196
G6M0198
Numbered in order from
upper right to lower left.
G6M0195
G6M0197
Numbered in order from
upper left to lower right.
G6M0199
When one set of connectors is viewed from the front side,
the pole numbers of one connector are symmetrical to
those of the other. When these two connectors are con-
nected as a unit, the poles which have the same number
are joined.
3) Electrical wiring harness
The connectors are numbered along with the number of
poles, external colors, and mating connections in the
accompanying list.
3
6-3WIRING DIAGRAM
1. General Description
