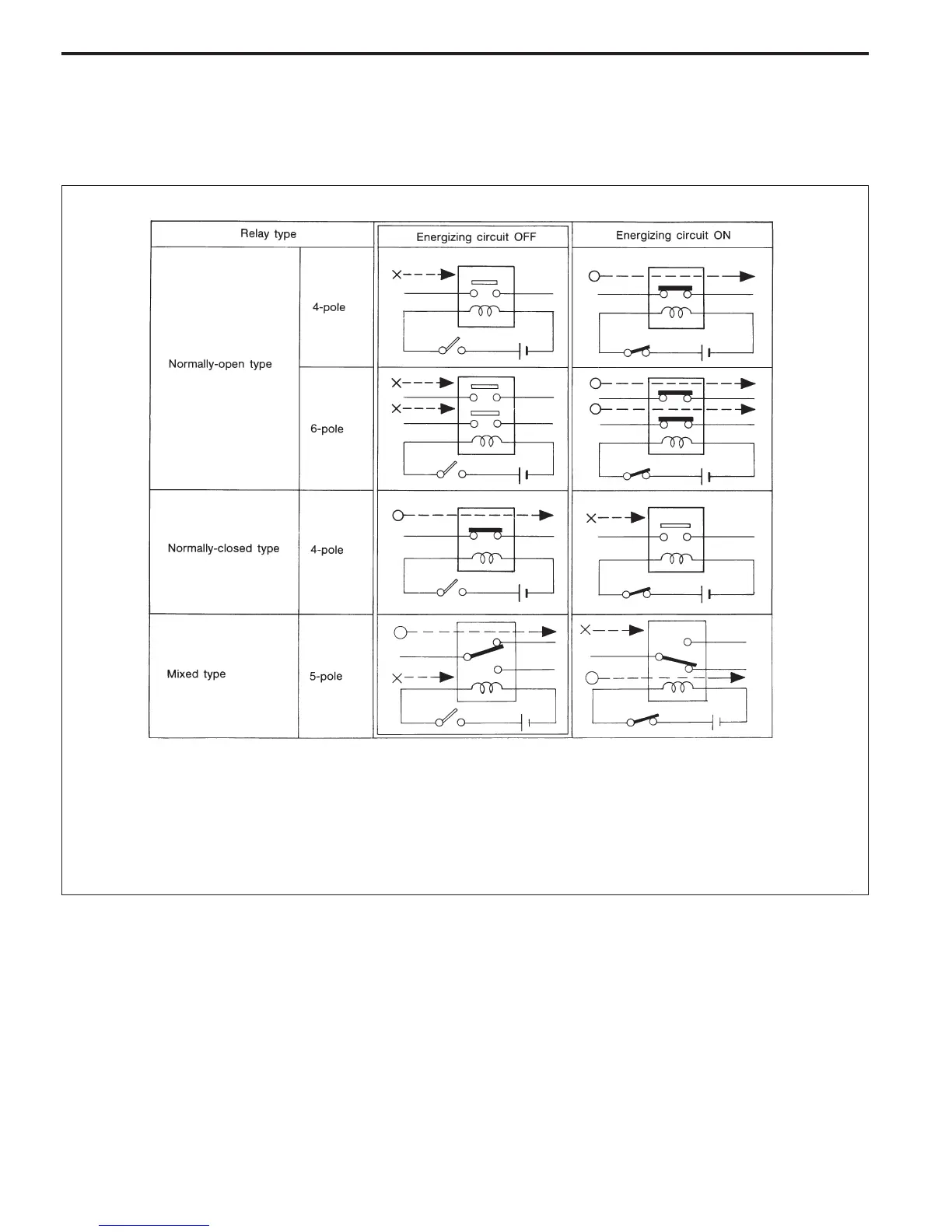

10) Relays are classified as normally-open or normally-
closed.
The normally-closed relay has one or more contacts.
The wiring diagram shows the relay mode when the ener-
gizing circuit is OFF.
G6M0204
Key to symbols:
쎻 → : Current flows.
X → : Current does not flow.
6
6-3 WIRING DIAGRAM
1. General Description
