NOTE :
When the AC circuit breaker turns off during operation, the generator is over
loaded or the appliance is defective. Stop the generator immediately, check
the appliance and / or generator for overloading or detect and have repaired as
necessary by Robin America dealer or service shop.

To take power out from the TWIST
LOCK RECEPTACLE, insert the
plug into the receptacle, and turn it
clockwise to the lock position.

Be sure to ground the generator if
the connected electrical device Is
grounded.
TWIST

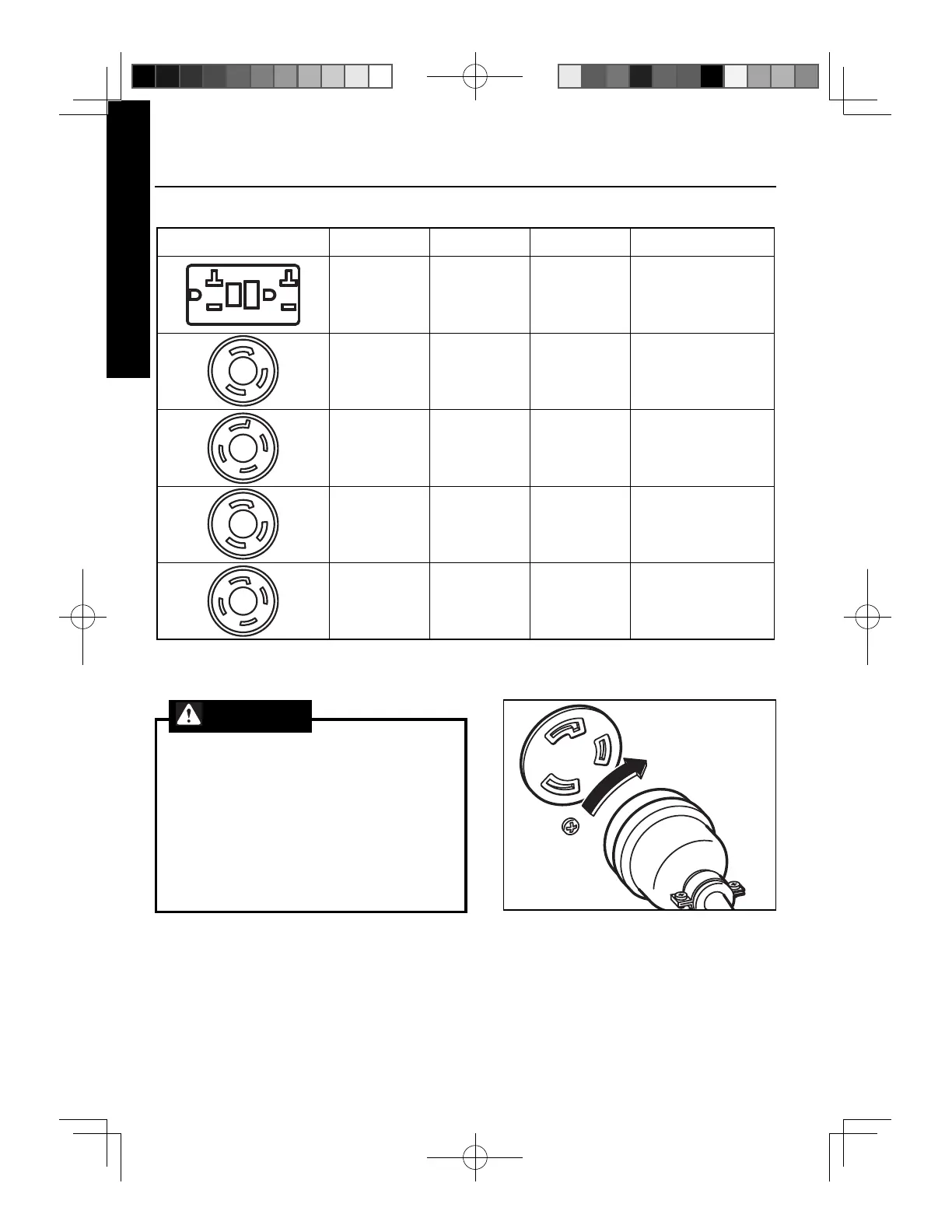

Style Ampere Receptacle AC plug Description
up to 20A
NEMA
5-20R
NEMA
5-20P
GFCI (Ground Fault
Circuit Interrupter)
Receptacle, duplex
up to 20A
NEMA
L5-20R
NEMA
L5-20P
Locking Receptacle
up to 20A
NEMA
L14-20R
NEMA
L14-20P
Locking Receptacle
up to 30A
NEMA
L5-30R
NEMA
L5-30P
Locking Receptacle
up to 30A
NEMA
L14-30R
NEMA
L14-30P
Locking Receptacle
TABLE 1
