Due to high temperatures, the unit should be located out of trafc and
away from furniture and draperies.
Children and adults should be alerted to the hazards of high surface
temperatures and should stay away to avoid burns or clothing ignition.
Young children should be carefully supervised when they are in the same
room as the unit.
Clothing or other ammable material should not be placed on or near
the unit.
Any safety screen or guard removed for servicing the unit must be
replaced prior to operating the unit.
The area around the unit must be kept clear from combustible materials,
gasoline and other ammable vapors and liquids.
Installation and repairs should be done by a qualied service person. The
unit should be inspected before use and at least annually by a qualied
service person. More frequent cleaning may be required due to excessive
lint from carpeting, bedding material, etc. It is imperative that control
compartments, burners, and circulating air passageways of the unit be
kept clean.

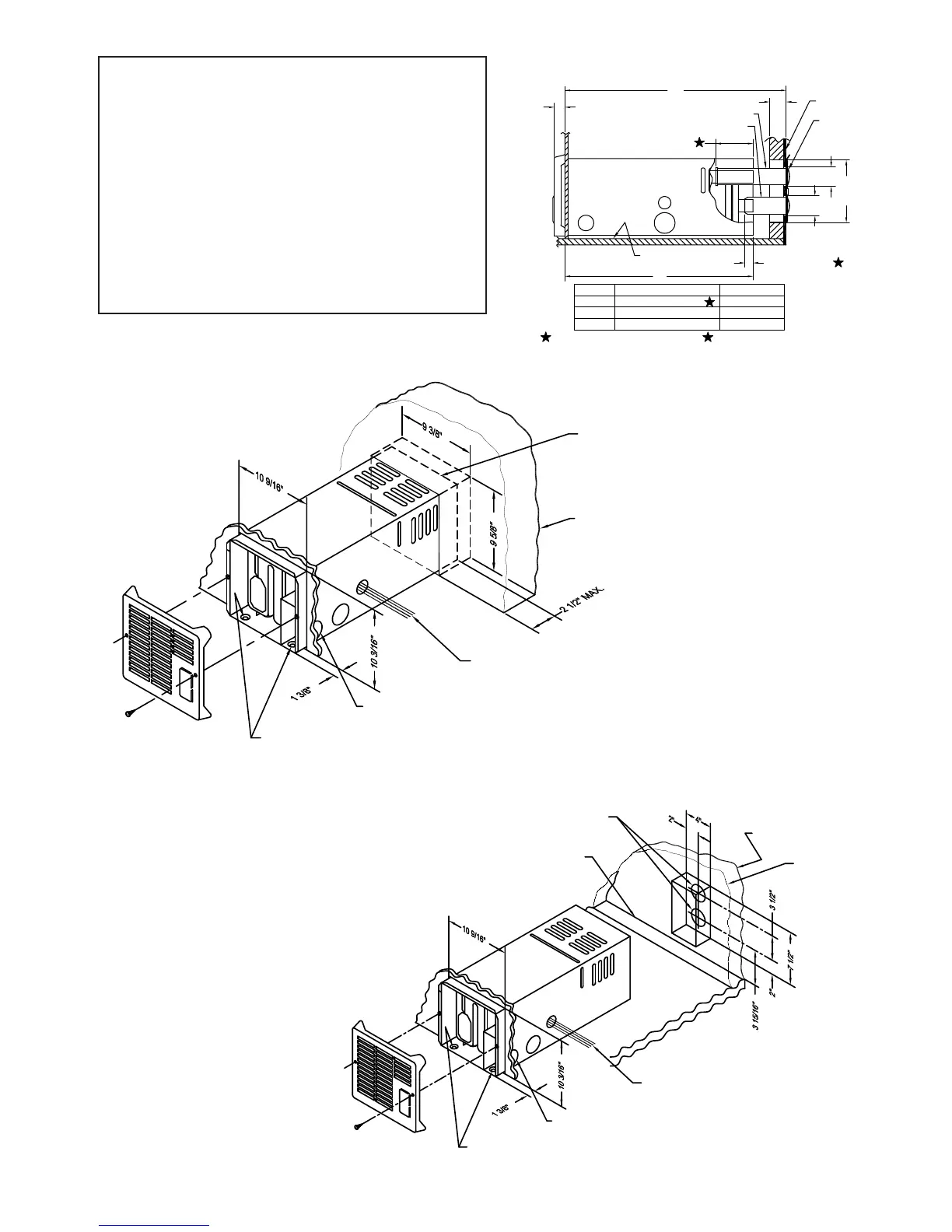

VENT TUBE INSTALLATION
VENT TUBE (INTAKE) SEE CHART
MOUNTING SURFACE
VENT TUBE (EXHAUST) 8" X 2" O.D.
2" O.D. X 2 3/4" SPECIAL
2" O.D. X 5" *STANDARD
2' O.D. X 7 1/4" SPECIAL
INTAKE TUBE LENGTH ONLY
STANDARD TUBE FURNISHED WITH FURNACE.
THE SPECIAL TUBES, IF NEEDED, MUST
BE ORDERED.
PART NO.
NEVER INSTALL VENT TUBES
ON INTAKE & 1 1/4" ON EXHAUST
WITH LESS THAN 1/2" OVERLAP
X050708
X050711
X050712
1 1/4" MIN. OVERLAP
"X"
"X" DIMENSION
25 1/2" TO 27 3/4"
21" TO 23 1/4"
23 1/4" TO 25 1/2"
TRAILOR SKIN
2 1/4"
VENT CAP
1/2" MIN. OVERLAP
DIA.
2 1/4"
Y"
7 1/2"
DIA.
21"
OF INTAKE TUBE
ON EXHAUST
1 3/8"
Figure 1
POWER SUPPLY & THERMOSTAT WIRES
GAS INLET FOR ELECTRIC IGNITION MODELS
SECURE UNIT IN PLACE
WITH (2) SCREWS
BACK OF FURNACE CABINET
TRAILER SKIN
Figure 2
POWER SUPPLY & THERMOSTAT WIRES
GAS INLET FOR ELECTRIC IGNITION MODELS
SECURE UNIT IN PLACE
WITH (2) SCREWS
TRAILER SKIN
2 1/4" DIA. TWO HOLES THROUGH TRAILER
SKIN
MOUNTING SURFACE
INSIDE WALL
Figure 3
