Suburban SFV-30 Service Training Manual

10

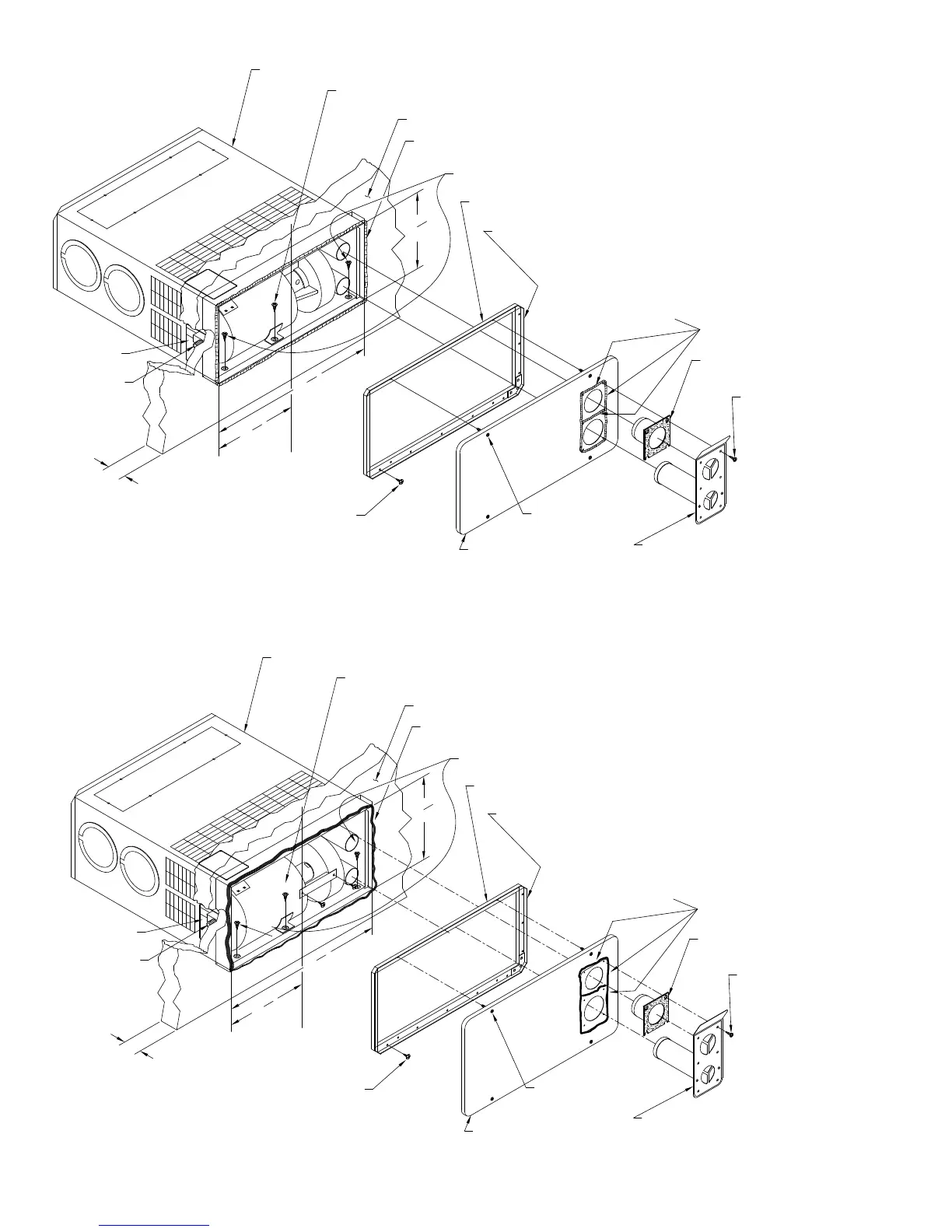

Figure 3 • SF & SFQ MODELS
Figure 3A • SH & SHD-2542 MODELS
VENT ASSEMBLY INSTALLATION
2" MAX.
C
L
9
7
64
18
32
7
8
9
32
FURNACE
TIE-DOWN SCREW
(FURNACE TO CABINET)
OUTSIDE SKIN
CAULK ALONG THE EDGE OF THE CUTOUT
(ALL THE WAY AROUND)
ANCHOR FURNACE CABINET TO COACH
FLOOR (2) PLACES AS ILLUSTRATED
BACK OF CABINET MUST BUTT
AGAINST THIS EDGE OF THE FRAME
DOOR FRAME
AIR INTAKE TUBE
WITH GASKET
6 SCREWS
(SUPPLIED)
VENT CAP & EXHAUST TUBE
4 SCREWS
DOOR MOUNTING
FURNACE ACCESS DOOR
SECURE FRAME TO
OUTER PANEL WITH SCREWS
(16 PLACES)
GAS
CONNECTION
ELECTRICAL
CONNECTION
CAULK BEHIND VENT CAP AS SHOWN TO SEAL
BETWEEN EXHAUST AND INTAKE AND TO PREVENT
MOISTURE INSIDE FURNACE COMPARTMENT. APPLY
CAULKING GENEROUSLY AROUND PERIMETER OF
VENT CAP AND ACROSS CENTER AS SHOWN. CENTER
PUTTY STRIP IS ESSENTIAL.
2" MAX.
C
L
9
7
64
18
32
7
10
1
32
FURNACE
TIE-DOWN SCREW
(FURNACE TO CABINET)
OUTSIDE SKIN
CAULK ALONG THE EDGE OF THE CUTOUT
(ALL THE WAY AROUND)
ANCHOR FURNACE CABINET TO COACH
FLOOR (2) PLACES AS ILLUSTRATED
BACK OF CABINET MUST BUTT
AGAINST THIS EDGE OF THE FRAME
DOOR FRAME
AIR INTAKE TUBE
WITH GASKET
6 SCREWS
(SUPPLIED)
VENT CAP & EXHAUST TUBE
4 SCREWS
DOOR MOUNTING
FURNACE ACCESS DOOR
SECURE FRAME TO
OUTER PANEL WITH SCREWS
(16 PLACES)
GAS
CONNECTION
ELECTRICAL
CONNECTION
CAULK BEHIND VENT CAP AS SHOWN TO SEAL
BETWEEN EXHAUST AND INTAKE AND TO PREVENT
MOISTURE INSIDE FURNACE COMPARTMENT. APPLY
CAULKING GENEROUSLY AROUND PERIMETER OF
VENT CAP AND ACROSS CENTER AS SHOWN. CENTER
PUTTY STRIP IS ESSENTIAL.
