39
MAINTENANCE
-
1.
2. Dirty burner.
NOT SO!

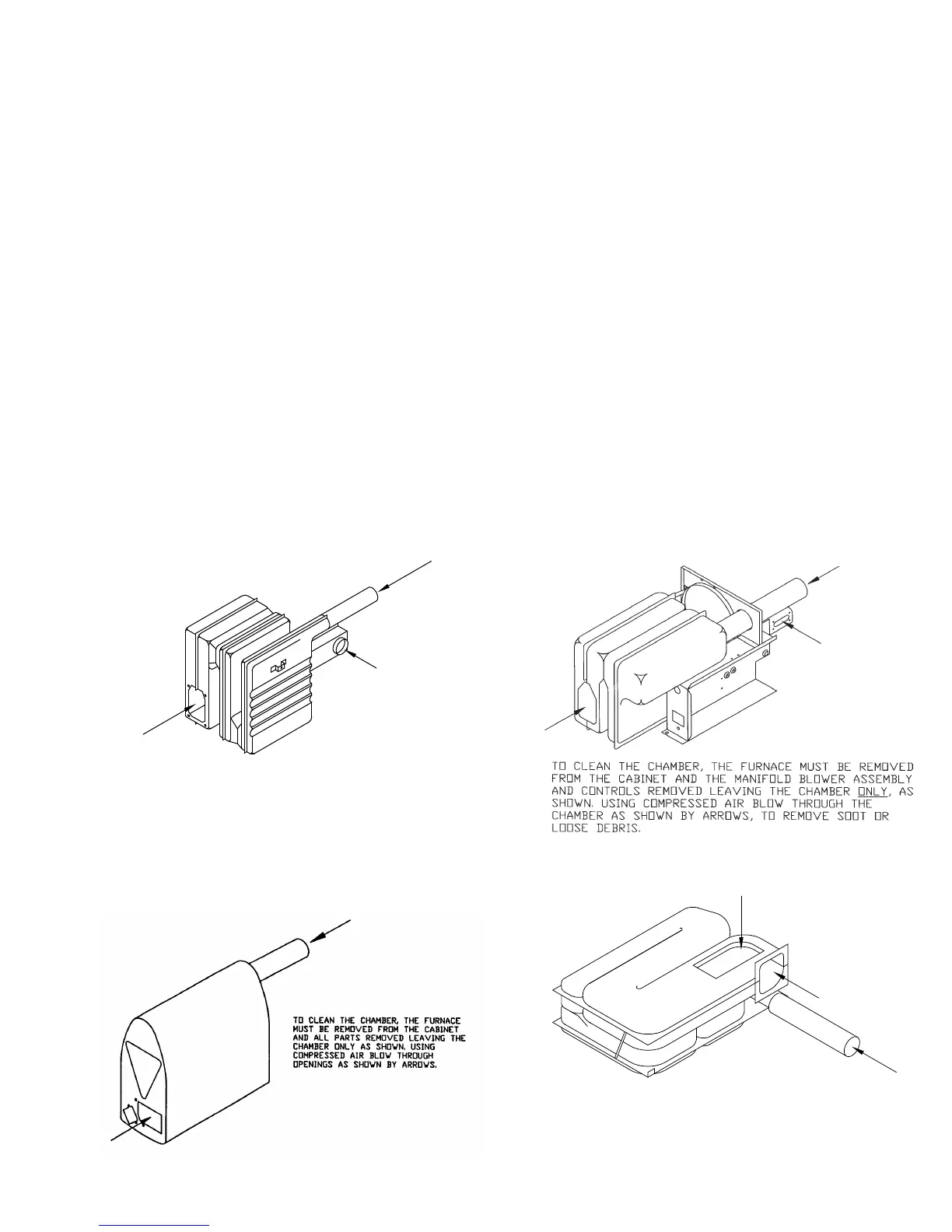

TO CLEAN THE CHAMBER, THE FURNACE MUST BE
REMOVED FROM THE CABINET AND THE MANIFOLD,
BLOWER ASSEMBLY AND CONTROLS REMOVED,
LEAVING THE CHAMBER ONLY AS SHOW ABOVE.
USING COMPRESSED AIR, BLOW THROUGH THE
CHAMBER, AS SHOWN BY ARROWS, TO REMOVE
SOOT OR LOOSE DEBRIS.
TO CLEAN THE CHAMBER, THE FURNACE MUST BE REMOVED FROM THE CABINET
AND THE MANIFOLD. BLOWER ASSEMBLY AND CONTROLS REMOVED LEAVING THE
CHAMBER ONLY, AS SHOWN. USING COMPRESSED AIR, BLOW THROUGH THE
CHAMBER, AS SHOWN BY ARROWS, TO REMOVE SOOT OR LOOSE DEBRIS.
Figure 33 Figure 35
Figure 34 Figure 36
