Subzero AMPLIFIER Series User Manual

4
SZ-ZA240 100V LINE ZONE AMPLIFIER
REP EATFOLDERMODE
0
–5
–10
–15
–20
ON
MASTER
MIC 1
IRSD
100
MIC 2
100
MIC /LINE 1
100
MIC /LINE 2
100
LINE 3
100
LINE 4 /USB
100
BASS
ZONE 1 ZONE 2 ZONE 3 ZONE 4 ALL
10–10
TREBLE
10–10

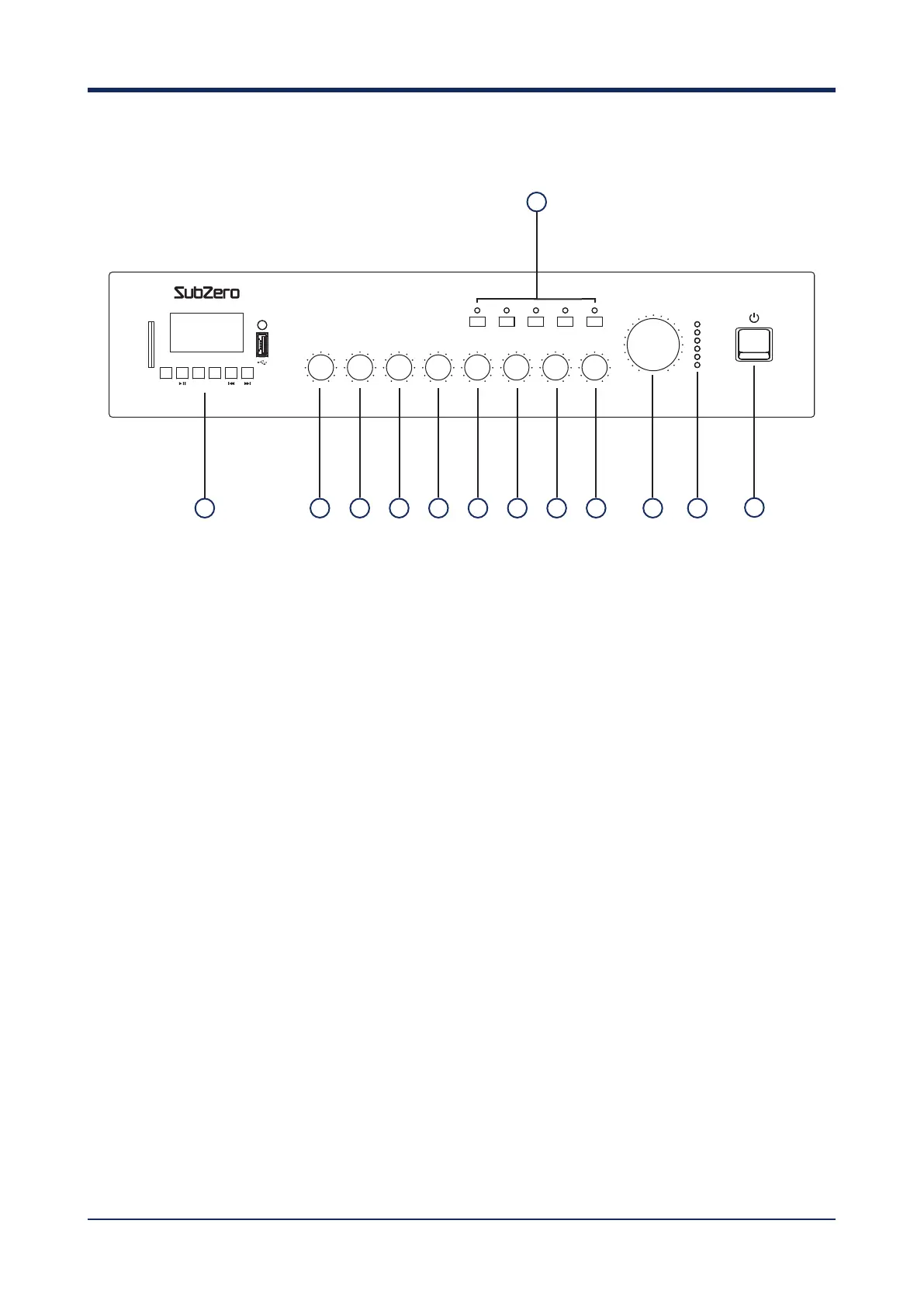

OVERVIEW
FRONT PANEL
1. MEDIA PLAYER
Media Player with USB/SD/Bluetooth (see Media
Player section below).
2. MIC 1
Increases or decreases the volume of MIC 1
input.
3. MIC 2
Increases or decreases the volume of MIC 2
input.
4. MIC / LINE 1
Increases or decreases the volume of MIC / LINE
1 inputs.
5. MIC / LINE 2
Increases or decreases the volume of MIC / LINE
2 inputs.
6. LINE 3
Increases or decreases the volume of LINE 3
input.
7. LINE 4 / USB
Increases or decreases the volume of LINE 4 /
USB input.
1 2 3 4 5 6 7 8
13
9 10 11
12
8. BASS EQ CONTROL
Increases or decreases the amount of the low/
bass frequencies by 10dB.
9. TREBLE EQ CONTROL
Increases or decreases the amount of the high/
treble frequencies by 10dB.
10. MASTER VOLUME CONTROL
Increases or decreases the master output
volume.
11. OUTPUT LEVEL METER
Visual display of the output volume.
12. POWER ON/OFF SWITCH
Turns the amplifier on or off.
13. SPEAKER ZONE SELECTOR BUTTONS
(SZ-ZA240 Only)
Selects which zones are active. Pressed in = On,
pressed out = Off.

Subzero AMPLIFIER Series Specifications

General

Brand	Subzero
Model	AMPLIFIER Series
Category	Speaker System
Language	English
