5
LINE OUT LINE 4 LINE 3 MIC 4 / LINE 2 MIC 3 / LINE 1 MIC 2 MIC 1
MIC 4 / LINE 2
MIC 3 / LINE 1
PHANTOM
VOX
MIC
LINE
OFF
ON
ZONE 1 ZONE 2 ZONE 3 ZONE 4
100VEQCOM
24V DC
+ -
100V 100V 100V
DC INPUT SPEAKER OUTPUT
IN- / OUTPUTS

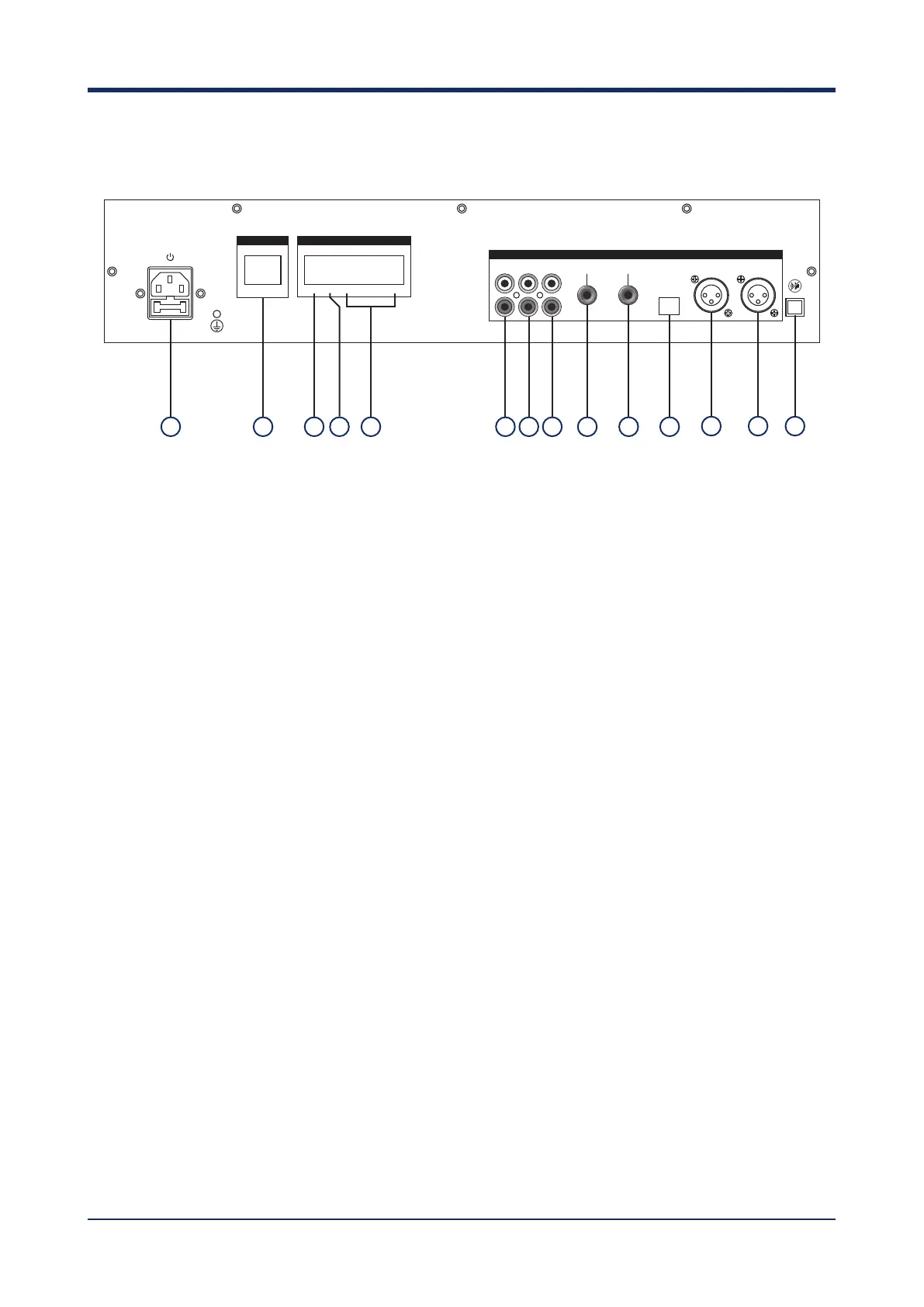

REAR PANEL
14. IEC MAINS INLET & FUSE HOLDER
Connect the supplied power cable here.
15. DC24V POWER TERMINALS
Connect a DC24V power supply here (such as a
battery).
16. COM SPEAKER TERMINAL
Connection for COM line to speakers (see
Connection & Set Up guide below).
17. 8Ω SPEAKER TERMINAL
Connection for 8ohm line to speakers (see
Connection & Set Up guide below).
18. 4 ZONE 100V SPEAKER TERMINALS (ZA240
ONLY)
Connection for 100V line to speakers in to
zones 1 to 4 (see Connection & Set Up guide
below).
19. LINE OUT CONNECTORS (RCA PHONO)
Output connection for linking to further
amplifiers (simulates master output).
20. LINE 4 INPUT (RCA PHONO)
Input for line devices (i.e. CD Players).
14 15 16 17 18 19 20 21 22 23 24
25 26 27
21. LINE 3 INPUT (RCA PHONO)
Input for line devices (i.e. CD Players).
22. MIC/LINE 2 INPUT (6.3MM TS JACK)
Input for line devices (i.e. CD Players) or
dynamic microphone.
23. MIC/LINE 1 INPUT (6.3MM TS JACK)
Input for line devices (i.e. CD Players) or
dynamic microphone.
24. DIP SWITCHES
(See DIP Switches section below).
25. MIC 2 INPUT (BALANCED XLR)
Input for dynamic or condenser microphones
(to provide +24v phantom power to condenser,
see DIP Switches section below).
26. MIC 1 INPUT (BALANCED XLR)
Input for dynamic or condenser microphone
(to provide +48v phantom power to condenser,
see DIP Switches section below).
27. 24V MUTE CONTACTS
Connection for emergency mute function.
To Next Page
