OVERVIEW

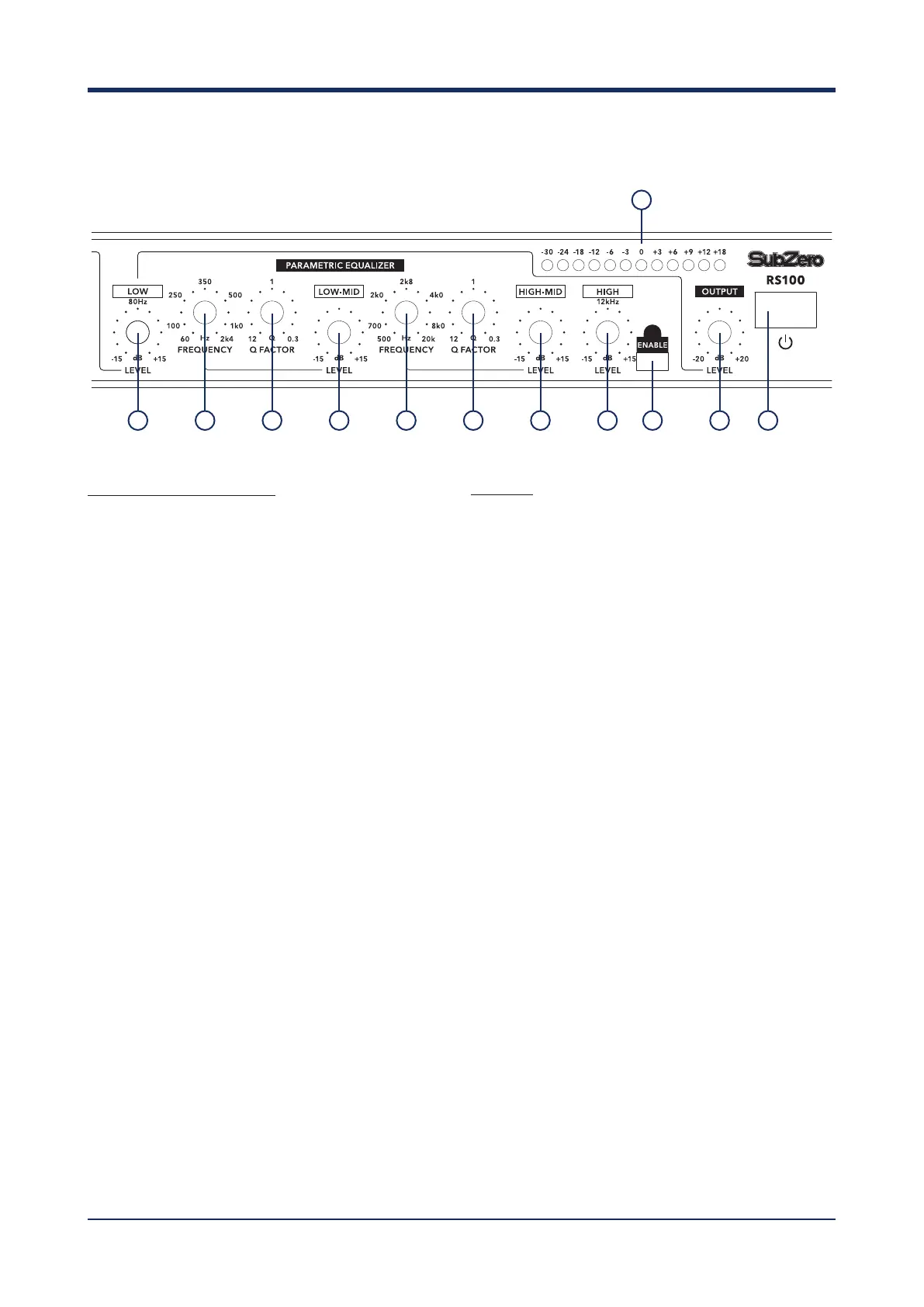

PARAMETRIC EQUALIZER
29. EQ LOW LEVEL
Controls the low frequency level at 80Hz by
-/+15dB.
30. EQ LOW-MID FREQUENCY
Controls the frequency of the low-mid range
between 60Hz and 2.4KHz.
31. EQ LOW-MID Q FACTOR
Controls the Q factor of the low-mid range
between 12 and 0.3.
32. EQ LOW-MID LEVEL
Controls the low-mid frequency level as set by
the low-mid EQ frequency (30) by -/+15dB.
33. EQ MID-HIGH FREQUENCY
Controls the frequency of the mid-high range
between 500Hz and 20kHz.
34. EQ MID-HIGH Q FACTOR
Controls the Q factor of the mid-high range
between 12 and 0.3.
35. EQ MID-HIGH LEVEL
Controls the mid-high frequency level as set by
the low-mid EQ frequency (33) by -/+15dB.
36. EQ HIGH LEVEL
Controls the high frequency level at 12KHz by
-/+15dB.
37. EQ ENABLE
Enables the EQ. Button pressed = EQ Active,
button un pressed = EQ bypassed.
OUTPUT
38. OUTPUT LEVEL LED MONITOR/METER
12bit LED output monitor displaying from
-30dB to +18dB.
39. MAIN OUTPUT LEVEL
Controls the main outout level by -/+20dB.
40. POWER ON/OFF SWITCH
Turns the power on or off.
29
8
30 31 32 33 34 35 36 37 39 40
38
