41. AC INLET AND FUSE HOLDER
Use the supplied AC cord to connect the unit
to AC mains. Make sure voltage and frequency
stated and set on the unit comply with your
local AC supply. The fuse can be accessed by
the small drawer at the AC inlet. To change the
fuse, unplug the AC cord first, pull out the fuse
drawer and replace the fuse ONLY with a fuse
of SAME voltage and rating. If the fuse blows
again after replacement, hand over the unit to
qualified service personnel.
42. CHANNEL XLR INPUT
This is a balanced XLR connector wired in
parallel with the TRS connector (43).
43. CHANNEL TRS INPUT
This is a balanced TRS connector wired in
parallel with the XLR connector (42).
44. SIDECHAIN SEND
This is the unbalanced sidechain output, which
allows you to route the audio signal to other
devices for external processing.
45. SIDECHAIN RETURN
The sidechain input allows you to use an
external signal or the processed (e.g. with
an equalizer) audio signal routed from the
SIDECHAIN SEND jack for external control.
46. CHANNEL XLR OUTPUT
This is a balanced XLR connector wired in
parallel with the TRS connector (47).
47. CHANNEL TRS OUTPUT
This is a balanced TRS connector wired in
parallel with the XLR connector (46).

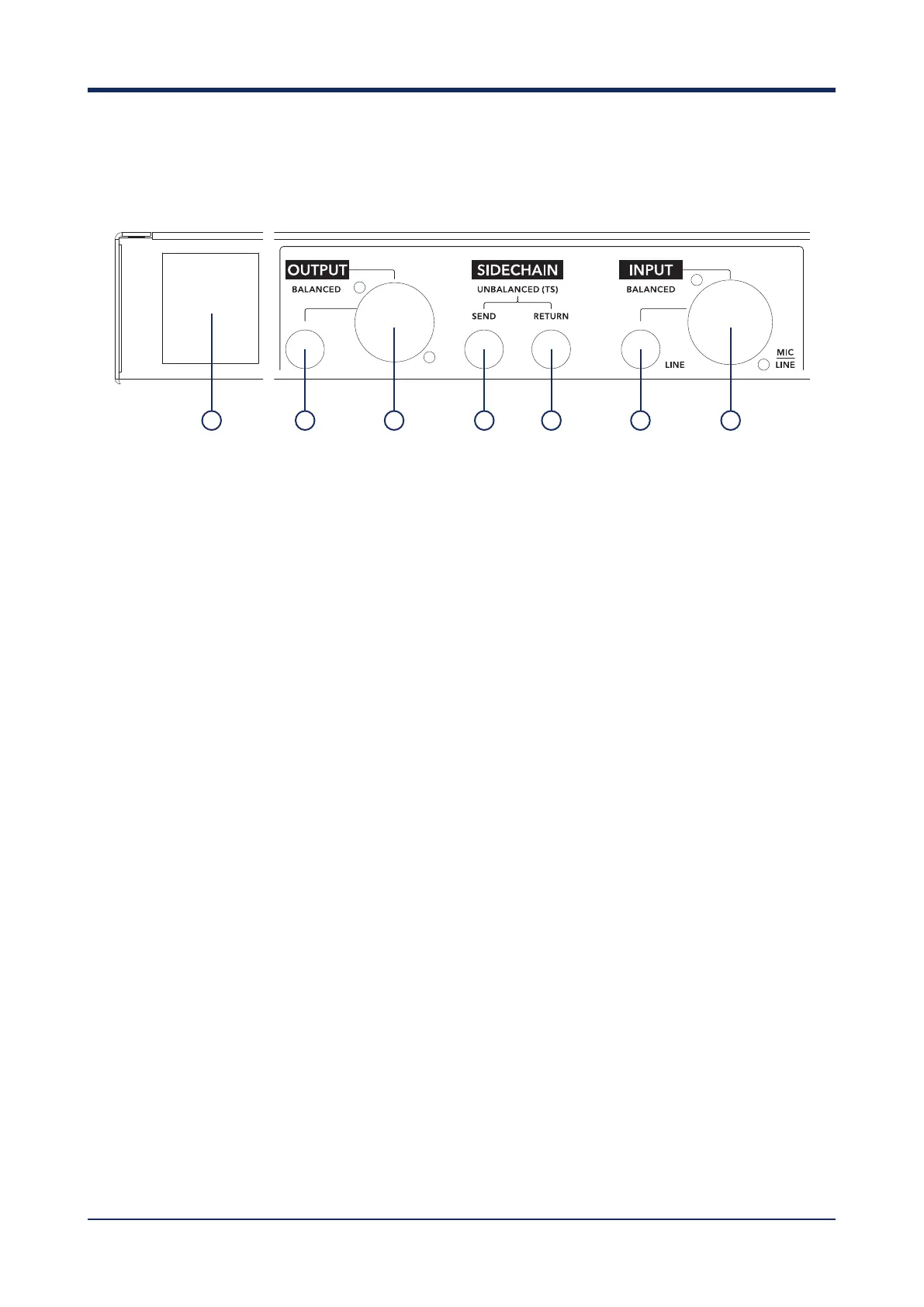

9
41 47 46 44 45 43 42
