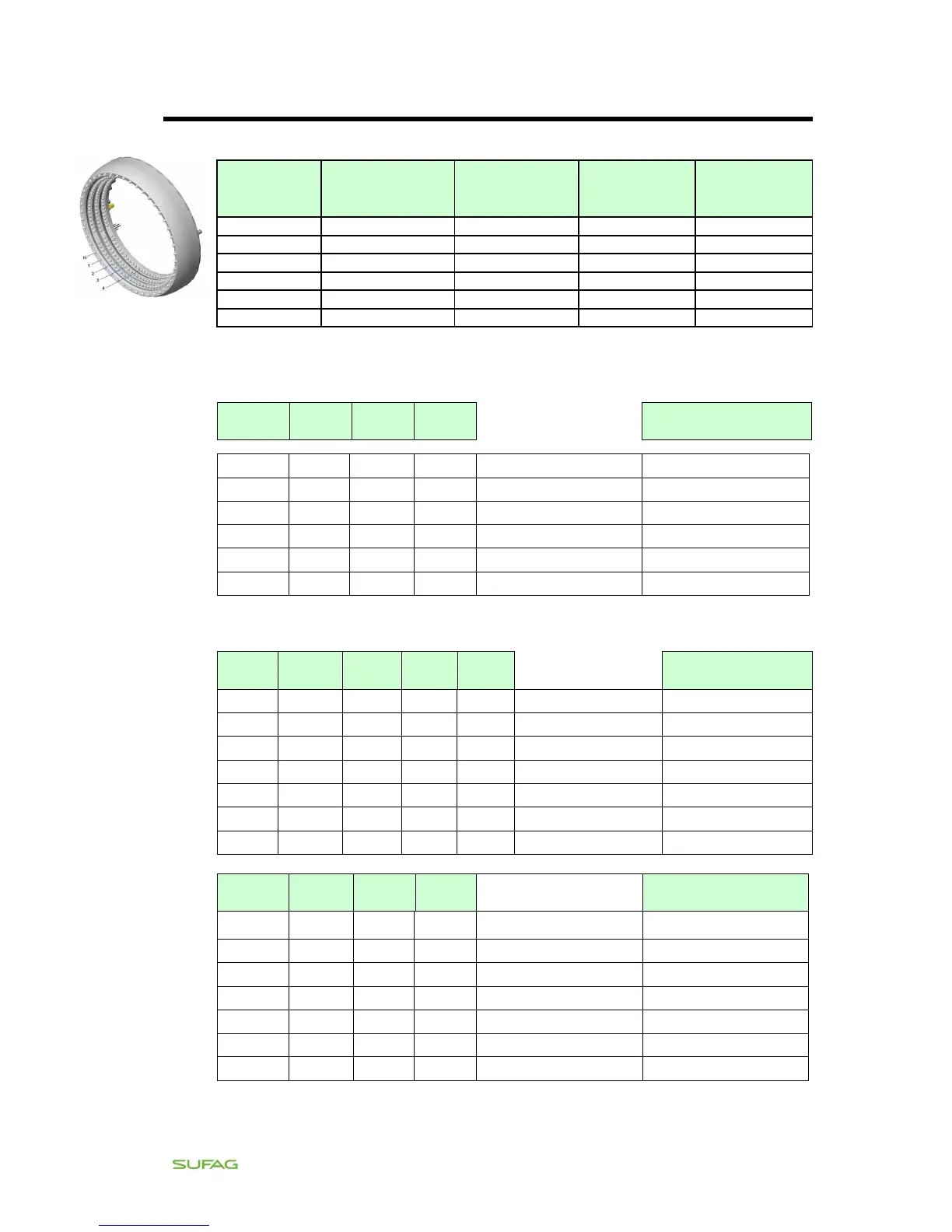

Operating Manual access/eco/peak/power/silent Page
13
2
O
PERATION
Ring
Peak
N 20 nozzles fix 20 nozzles fix 45 nozzles fix 45 nozzles fix
0,5.R 31 nozzles BV 5 nozzles BV x x
1.R 44 nozzles MV 3 nozzles MV 45 nozzles MV
2.R 75 nozzles MV 8 nozzles MV 45 nozzles fix 90 nozzles MV
3.R 75 nozzles MV 8 nozzles MV 90 nozzles MV
4.R 75 nozzles MV 8 nozzles MV 90 nozzles MV
With the shown combinations of nozzle rings and an operating pressure between 8
bar and 40 bar you can have the following water flows:
1.R 2.R 3.R 4.R 266 nozzles
Ring 2 (always on) 41 – 80 l/min
Ring 1+2 72 – 149 l/min
Ring 2+3 104 – 219 l/min
Ring 1+2+3 134 – 288 l/min
Ring 2+3+4 166 – 358 l/min
Ring 1+2+3+4 196 – 426 l/min
0.5 R + 1.R together form the first ring of nozzles.
0,5.R
1.R 2.R 3.R 4.R 310 nozzles
Ring 1+2 131 – 279 l/min
Ring 2+3 171 – 369 l/min
Ring 1+2+3 211 – 459 l/min
Ring 2+3+4 251 – 549 l/min
Ring 1+2+3+4 291 – 639 l/min
1.R 2.R 3.R 4.R
300 nozzles
Ring 2 85 – 125 l/min
Ring 1+2 120 – 170 l/min
Ring 2+3 160 – 210 l/min
Ring 1+2+3 195 – 275 l/min
Ring 2+3+4 260 – 305 l/min
Ring 1+2+3+4 290 – 520 l/min
