FUNCTIONAL DESCRIPTION

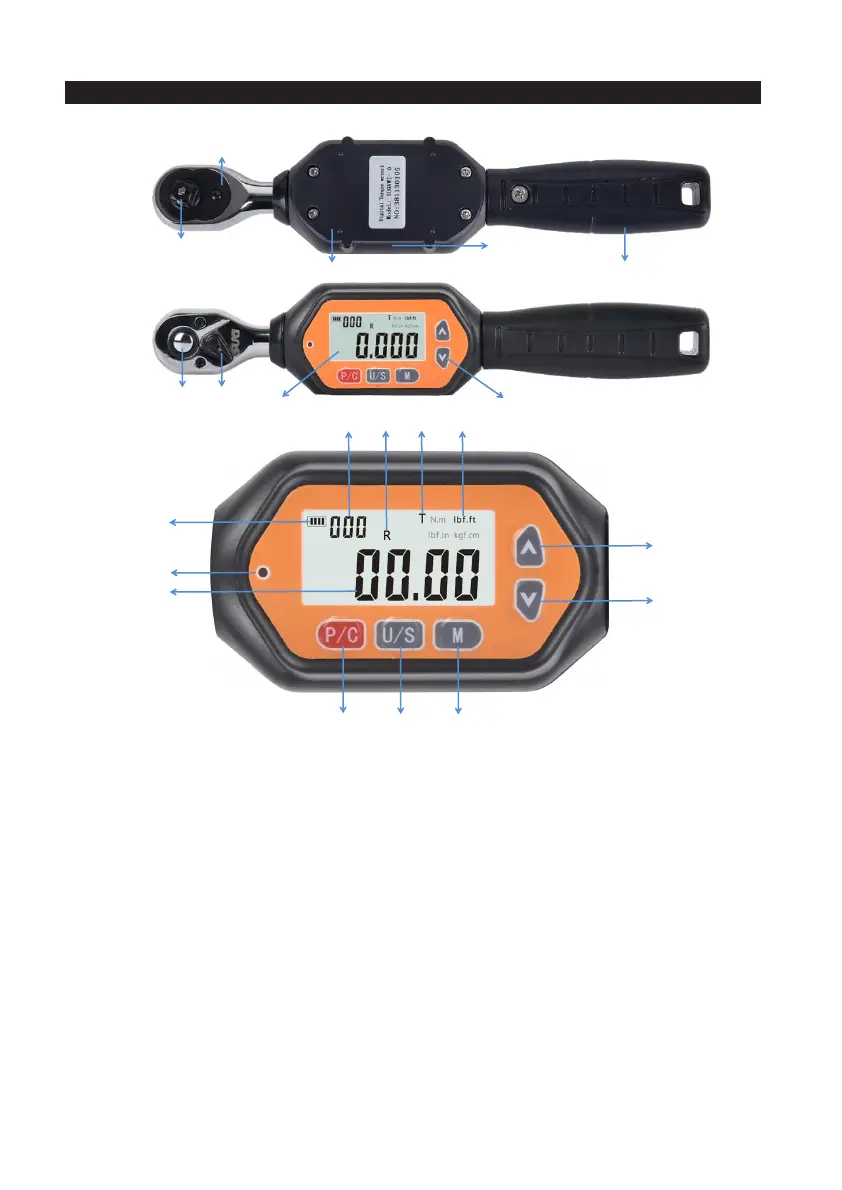

CONTROLS AND COMPONENTS:
1. Reversible Ratchet 2. Quick Release Button 3.Forward and reverse selection lever
4.1/4" / 3/8" 1/2"/Square Drive 5.Battery Cover 6.Handle
7.LED Indicator 8.Buzzer 9.LCD Panel
10.Button 11.Power/Reset Button 12.Unit Selection Button
13.Mode Selection Button 14.Up Button 15.Down Button
16.Torque Value Display 17.Mode Display (*1) 18.Unit Display (*2)
19.Battery Level Display 20.Memory Group Number Display 21.Torque Direction Display
*1 Modes: T: Trace Mode P: Peak Mode
*2 Unit: N.m: Newton Meter lbf.ft: Foot Pound
lbf.in: Inch Pounds kgf.cm: Kilogram Centimeter
1
4
5
8
6
2
3
9
10
7
19
20
17
21
18
14
16
15
13
11
