Suiden SS-22DD-8A - Exterior and Control Panel Components

3
3
Parts
∆ Note:
The service cover contains fuses. See
page 10 for more detailed information.
∆ Note:
See page 7 for further information regarding
how to connect the unit to a power source.
∆ Note:
Suitable for electric cords ≤ Ø 6,8mm. If you use cords thicker than 6,8mm,
you can not fasten them with the cord clamp attached to the unit. In that
case, please acquire a suitable cord clamp and use it instead.
Caster wheel with brake
Drain tank
Filter cover
Electric cord (earthed)
(2.0m, complete with plug)
Caster wheel
Earth terminal
Service box
Handle
Control panel
Filter (Interior part)
Filter extract handle
Cold air duct
Duct elbow
Hot air exhaust duct
Cord clamp

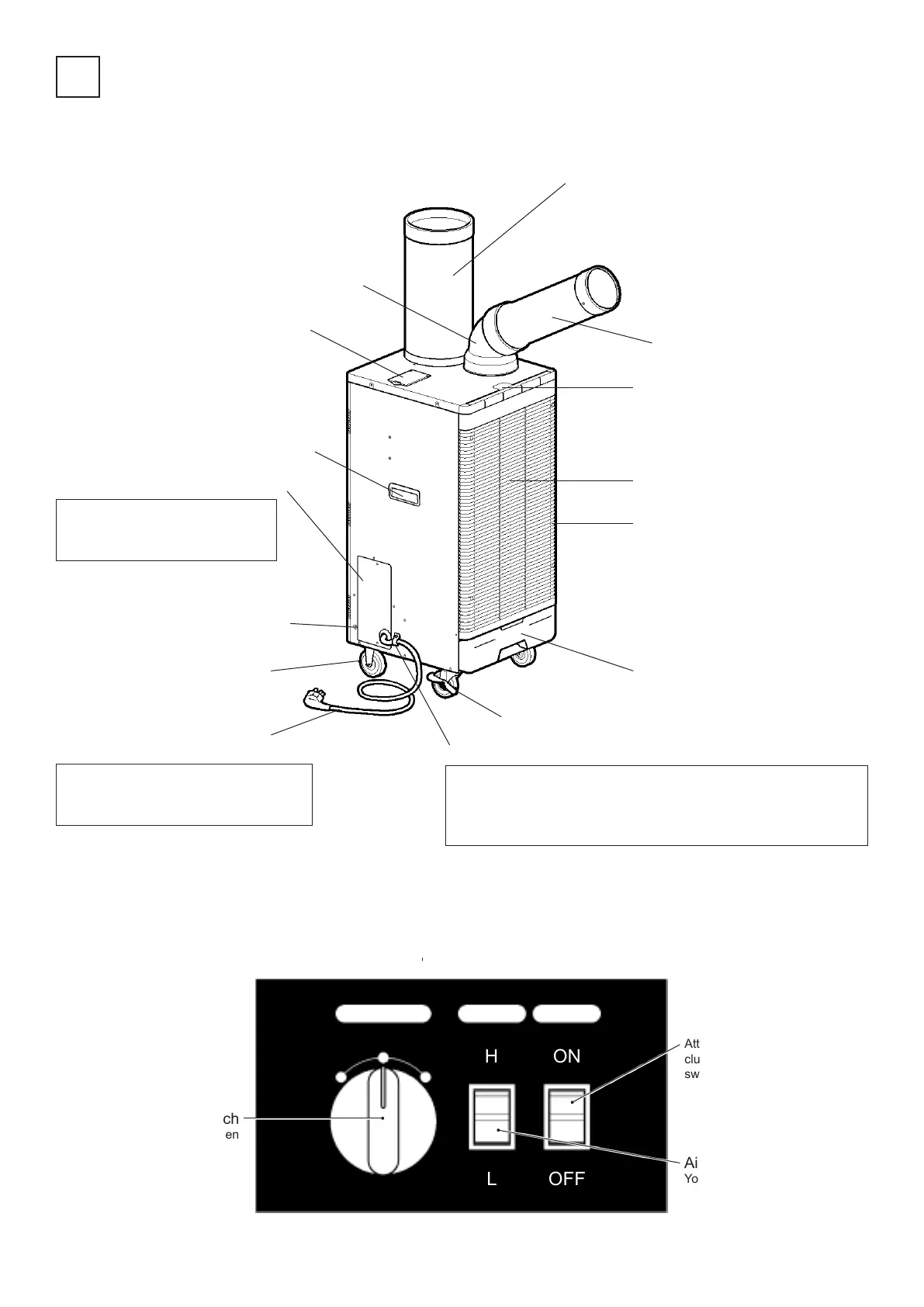

The exterior
The control panel
Airow velocity switch
You can choose weak (L) or
strong (H) airow.
Power switch
You can choose between
“Air“, “Cool” and “Stop”.
Cool air duct swivel switch
Attention! This switch is only in-
cluded in models with automatic
swivel. (Not SS-22ED-8A)
H
STOP
OFFL
ON
COOL
AIR
MODE
TURN
FAN
