11

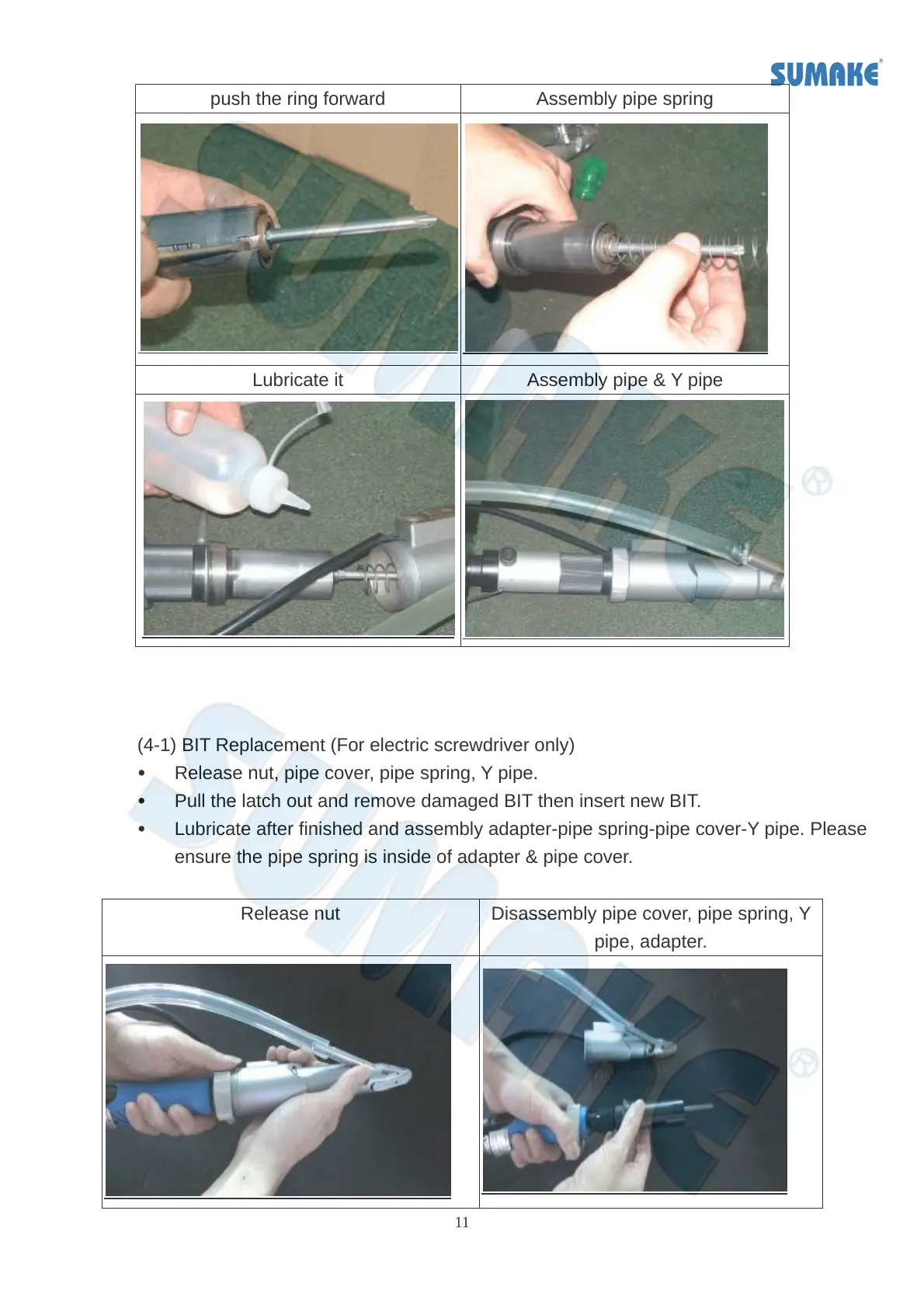

push the ring forward Assembly pipe spring
Lubricate it Assembly pipe & Y pipe
(4-1) BIT Replacement (For electric screwdriver only)
 Release nut, pipe cover, pipe spring, Y pipe.
 Pull the latch out and remove damaged BIT then insert new BIT.
 Lubricate after finished and assembly adapter-pipe spring-pipe cover-Y pipe. Please
ensure the pipe spring is inside of adapter & pipe cover.
Release nut Disassembly pipe cover, pipe spring, Y
pipe, adapter.
