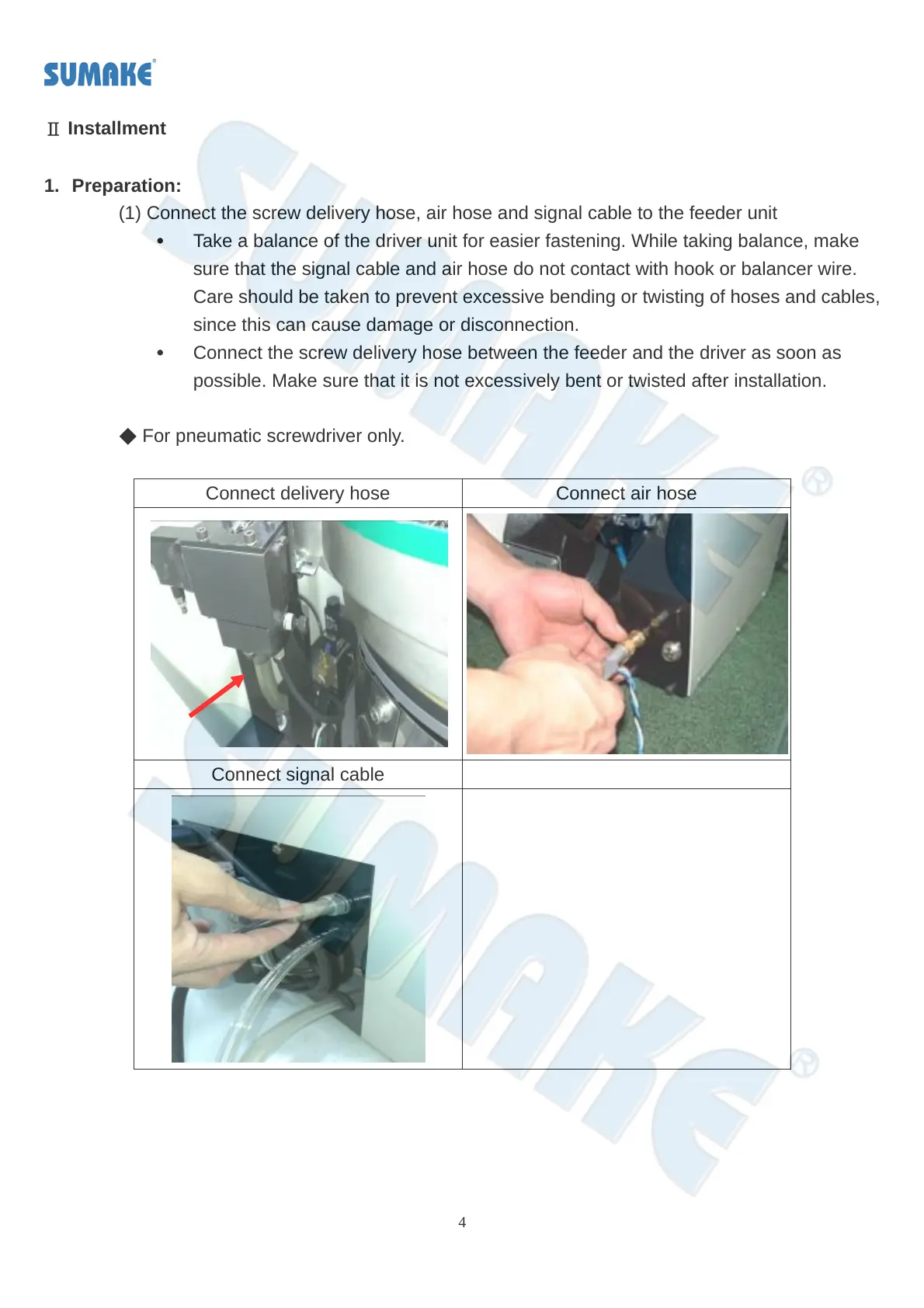

Ⅱ Installment
1. Preparation:
(1) Connect the screw delivery hose, air hose and signal cable to the feeder unit
Take a balance of the driver unit for easier fastening. While taking balance, make
sure that the signal cable and air hose do not contact with hook or balancer wire.
Care should be taken to prevent excessive bending or twisting of hoses and cables,
since this can cause damage or disconnection.
Connect the screw delivery hose between the feeder and the driver as soon as
possible. Make sure that it is not excessively bent or twisted after installation.
◆ For pneumatic screwdriver only.
Connect delivery hose Connect air hose
Connect signal cable
