No. Parts No. Description Q'ty No. Parts No. Description Q'ty
1A 6615-01A Nosepiece 4.8mm (3/16") 1 30 6615-30 Trigger Pin (3x24) 1
1B 6615-01B Nosepiece 4.0mm (5/32") 1 31 6615-31 Rod Pin (3x6) 1
1C 6615-01C Nosepiece 3.2mm (1/8") 1 32 6615-32 Trigger Rod 1
1D 6615-01D Nosepiece 2.4mm (3/32") 1 33 6615-33 Trigger Lever 1
2 6615-02 Frame Head 1 34 6615-34 Rod Pin (3x6) 1
3 6615-03 Jaw Case 1 35 6615-35 Lever Pin (3x18) 1
4 6615-04 Jaw Case Joint 1 36 6615-36 Air Cylinder 1
5 6615-05 Jaw (5x10) 2 37 6615-37 Valve Pusher O Ring (P7x1.9) 1
6A 6615-06A Jaw Pusher 1 38 6615-38 Brass Valve Pusher 1
7 6615-07
Jaw Pusher Spring (1.0X8.4X28X11N)
1 39 6615-39
Valve Pusher Spring (1.2x9.4x43x13N)
1
8 6615-08 Jaw Case Washer Ring 1 40 6615-40 Valve Pusher Brass Collar 1
9 6615-09 Jaw Case Lock Nut 1 41 6615-41 Valve Pusher O Ring (P6x2) 1
10 6615-10 Frame O Ring (P12x2.4) 1 42 6615-42 Valve (13.5mm) 1
11 6615-11 Frame O Ring (P12x2.4) 1 43 6615-43 Valve Spring (1.0x9.7x24x6N) 1
12 6615-12 Frame Back Up Ring (P12x1.2) 1 44 6615-44 Valve Cap O ring (P12x2.4) 1
13 6615-13 Frame 1 45 6615-45 Valve Cap 1
14 6615-14 Oil Piston 1 46 6615-46 Frame Lock Nut (35x6mm) 1
15 6615-15 Oil Piston O Ring (P22x3.5) 1 47 6615-47 Rubber Cushion 1
16 6615-16 Oil Piston Back Up Ring (P22x1.2) 1 48 6615-48 Air Piston Stem 1
17 6615-17 Return Spring A (2x15.2x57x10N) 1 49 6615-49 Iron Plate Washer (67x2.5) 1
18 6615-18 Return Spring B (2.6x22.5x52x7N) 1 50 6615-50 Air Piston Iron Plate (30x3) 1
20 6615-20 Hanging Clip 1 51 6615-51 Air Piston Ring (70.5x29.5) 1
21 6615-21 Frame Cap 1 52 6615-52 Iron Plate Washer (55x2.0) 1
22 6615-22 Saftey Cap 1 54 6615-54 Air Piston Lock Nut (Nonskid) 1
23 6615-23 Frame Cap Nut 1 55 6615-55 Air Cylinder O Ring (68x2.5) 1
26 6615-26
Frame Joint Back Up Ring (P12x1.2)
1 56 6615-56 Air Cylinder Cap 1
27 6615-27 Frame Joint O Ring (P12x2.4) 1 57 6615-57 Spanner Gauge (17mm, 14mm) 1
28 6615-28 Frame Joint O Ring (P12x2.4) 1 58 6615-58 Spanner (15mm, 10mm, 24mm) 1

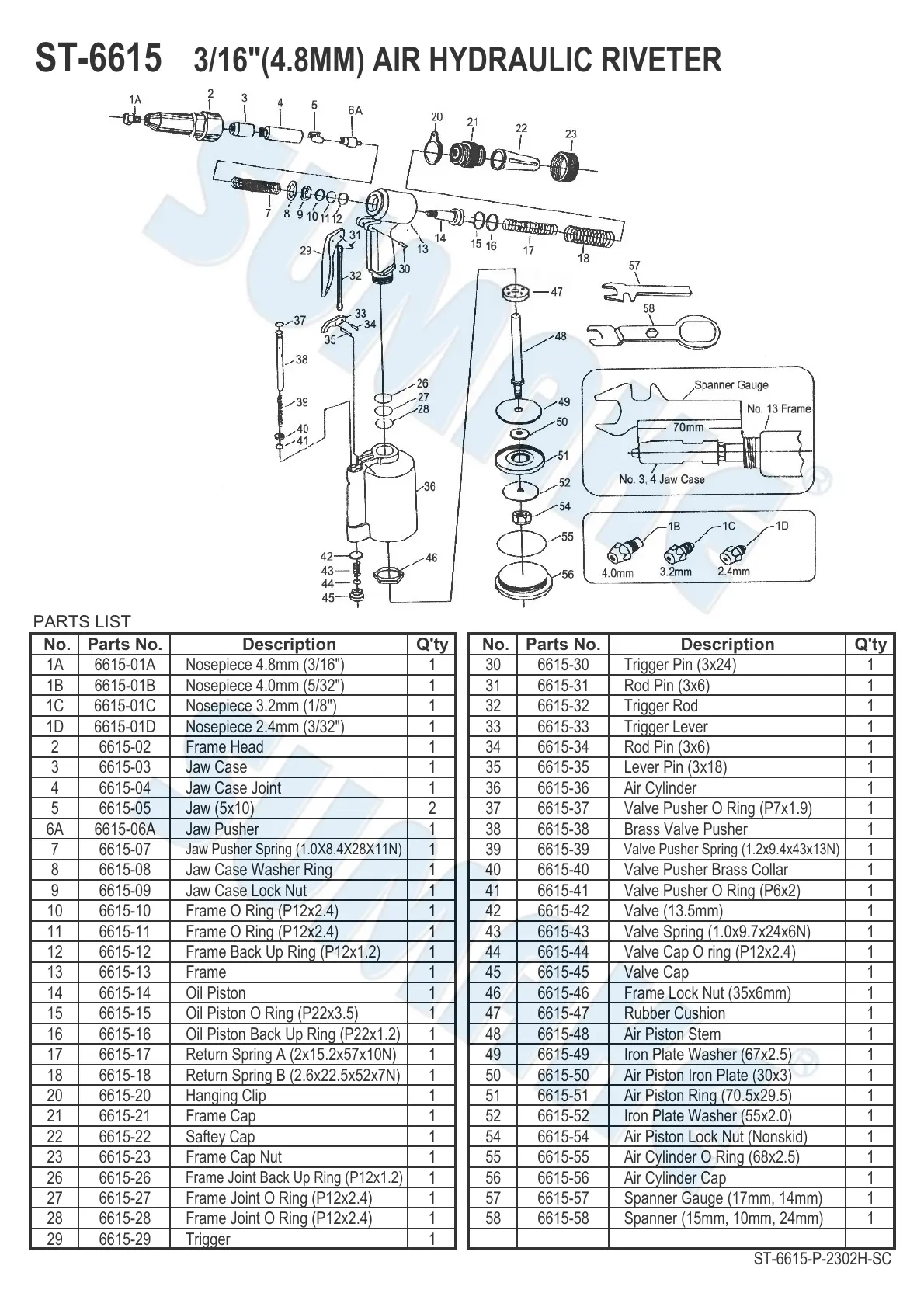

ST-6615 3/16"(4.8MM) AIR HYDRAULIC RIVETER
To Next Page
