Owner’s Manual
®
16
4.2 Adjusting the seat width
The seat width can be adjusted from 50cm to 65cm in 3cm increments.
4.2.1. First remove the seat and back and loosen the “hook and loop” straps for the seat and back rest.
4.2.2. The crossbar is telescopic to achieve following seat widths: 50 / 53 / 56 / 59 / 62 / 65cm.
For a seat width of 50cm, all 4 allen bolts at the top and bottom of the crossbar should be at the
innermost of the 6 available mounting holes (see fig. 25 solid holes).
4.2.3. First remove the two allen bolts with a 4mm allen key at the bottom of the crossbar and pull
out both inner tubes to the desired seat width (e.g. seat width 59cm = 4th hole from the top, see
drawing: solid marks) and screw the crossbar in this position. Note: The lower inner tubes are each
provided with only one hole (see fig. 26).
e.g. this hole (4th hole from the top)
has to be used for seat width 59cm

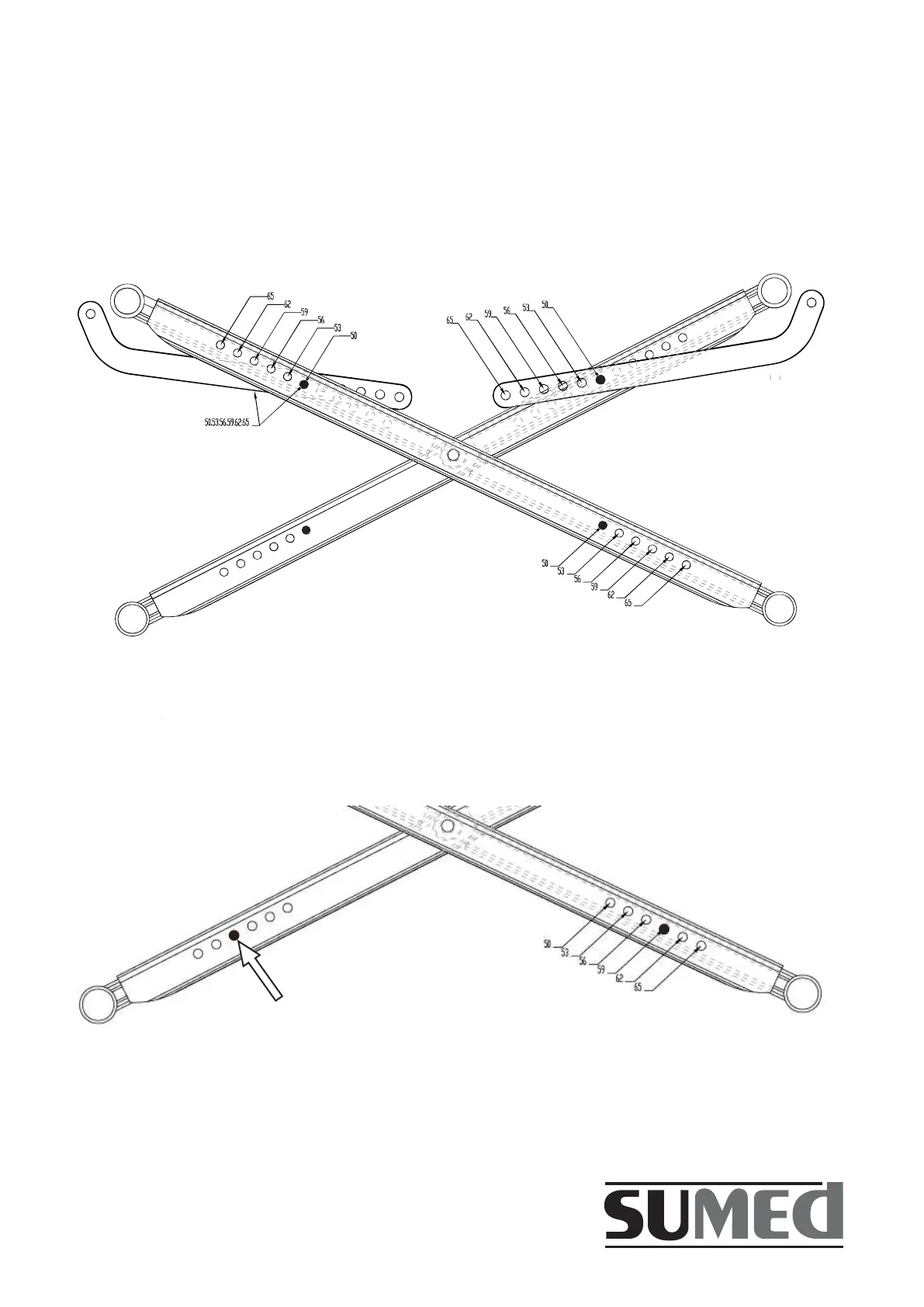

fig.25
fig.26
