Sumitomo Drive Technologies HYPONIC DRIVE - Inspection Upon Delivery

3
1. Inspection Upon Delivery
CAUTION
 Unpack the unit after verifying that it is positioned right side up; otherwise, injury may
result.
 Verify that the unit received is in fact the one you ordered. Installing the wrong unit may
result in personal injury or equipment damage.
 Do not remove the rating plate.
Verify the items listed below upon receiving the gearmotor. If a nonconformity or problem is
found, contact our nearest agent, distributor, or sales office.
(1) Does the information on the rating plate conform to what you ordered ?
(2) Was there any part broken during transport ?
(3) Are all bolts and nuts tightened firmly ?
1–1) How to Refer to the Rating Plate
COMMON
1.Inspection Upon Delivery
2Reduction ratio
・Motor capacity
・Motor Characteristics
・ Currentofabrake
foramotorwithbrake
3Serial No.
2Reduction ratio
・Service factor
・Input capacity
・Speed
・Output torque
3Serial No.
4Motor type (Refer to page 6.)
5Type of a brake
for a motor with brake
(Refer to page 6 Tabel 1.)
・ Brake torque for a motor with brake
・Motor capacity
[Nameplate of motor]
[Nameplate of reducer]
1Type of gearmotor (Refer to page 4.)/Spec code (Refer to page 5.)
Note1
1Type of gearmotor (Refer to page 4.)/Spec code (Refer to page 5.)
Note 1
4 Motor type (Refer to page 6.)
5
Type of a brake
for a motor with brake
(Refer to page 6 Tabel 1.)
・ Motor Characteristics
・ Brake torque for a motor with brake
・ Current of a brake for a motor with brake
・ Motor shaft bearing No.
・  Serial No.
5Type of a brake
for a motor with brake
(Refer to page 6 Tabel 1.)
4 Motor type (Refer to page 6.)
・ Brake torque for a motor with brake
・Motor capacity
・Motor Characteristics
・ Current of a brake
for a motor with brake
・Motor shaft bearing No.
・Serial No.
MODEL
B.AMP
M.AMP
r/min
SERIAL No.
Hz
VOLTS
RATIO
P Ø
OUTPUTRATING
TYPE
RATING
B.TORQUE
FRAME
SF
N・m
N・m
JISC4034-1
M/BTHERMAL
JAPAN
INPUT
MODEL
OUTPUT
TORQUE
N･m
JAPAN
kW
r/min
SERIAL
No.
RATIO S．F．
There are two types of nameplates, TypeⅠand TypeⅡ. Some typical plates are shown below;
refer to the proper one.
(1) Nameplate Type
Ⅰ: Nameplate indicating for a reducer and a motor together
(2) Nameplate Type
Ⅱ: Individual nameplate indicating for a reducer and a motor separately

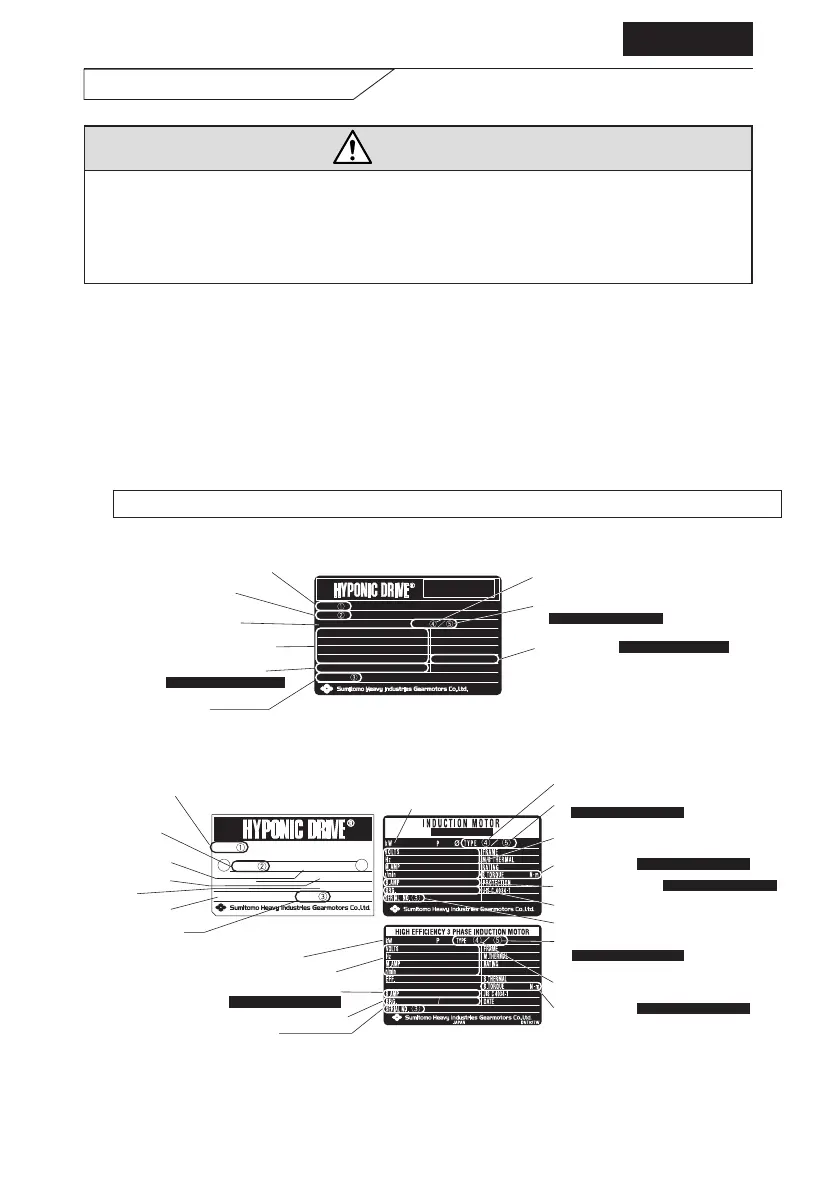

Fig. 1-a Nameplate of Gearmotor (TypeⅠ)
Fig. 1-b Nameplate of Gearmotor (Type Ⅱ)
When making an inquiry, advise us of 1 the type of gearmotor/spec code, 2 reduction ratio, and 3 serial No.
Note 1.Spec code is not necessarily indicated.
2.Nameplate of a motor is varied according to type of a motor.
3.Motor meeting overseas standard is manufactured by Sumitomo Heavy Industries, Ltd.
