Sumitomo Drive Technologies HYPONIC DRIVE - Construction Drawings

52
No. Part name
1 Hypoid gear
2 Output shaft
3 Oil seal
4 Casing
5 Cover
6 Seal cap
No. Part name
7 Gear
8 Pinion shaft
9 Gear
10 Pinion shaft
11 Hypoid pinion shaft
12 Stationary core
No. Part name
13 Rotor core
14
Rotor conductor short circuit ring
15 Stator windings
16 End bracket
17 Bearing metal
18 Bearing metal

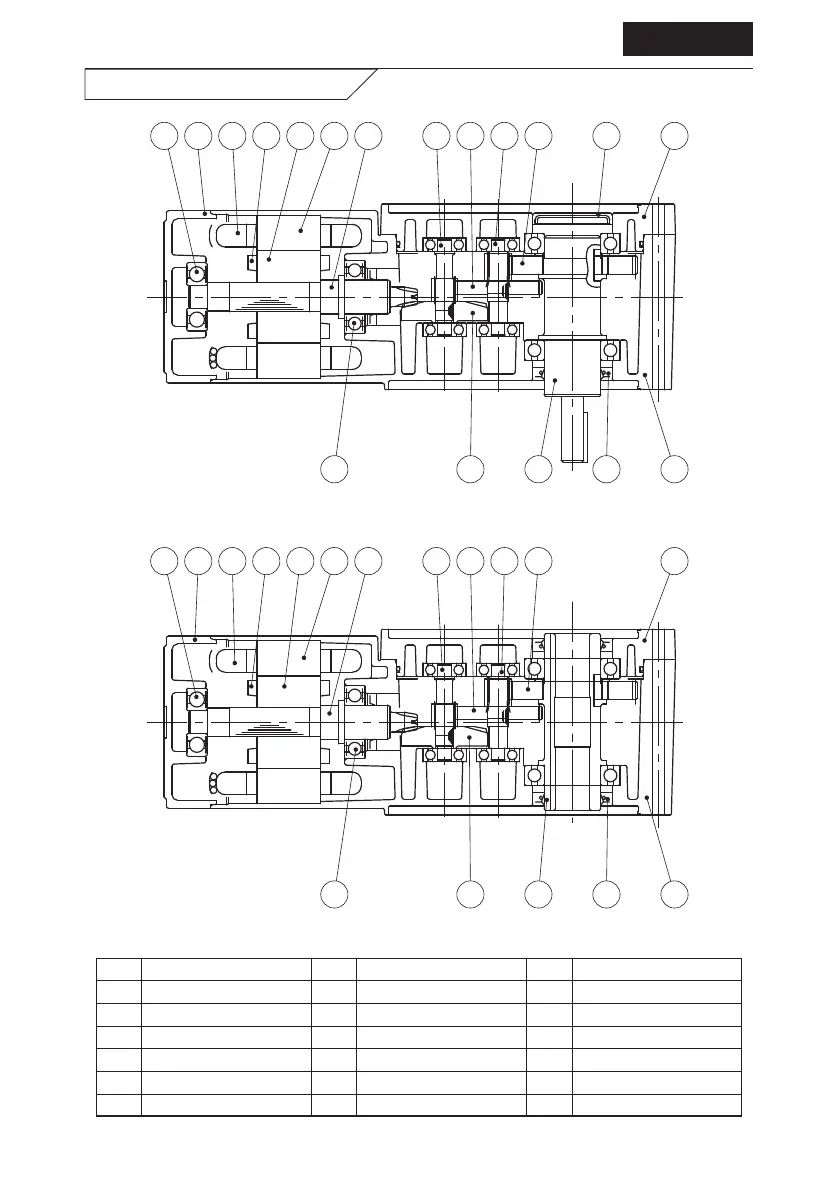

11. Construction Drawings
Fig.44 RNFM0025-03L-240
Fig.45 RNYM0025-03-240
1234
567891011121314151617
18
11121314151617 578910
123418
COMMON
11. Construction Drawings
