Sumitomo Drive Technologies HYPONIC DRIVE - Page 54

53
No. Part name
1 Hypoid gear
2 Output shaft
3 Oil seal
4 Case (1)
5 Case (2)
6 Gear
No. Part name
8 Gear
9 Pinion shaft
10 Hypoid pinion shaft
11 Motor frame
12 Stationary core
13 Rotor core
No. Part name
15
Rotor conductor short circuit ring
16 Fan
17 Fan cover
18 End bracket
19 Bearing metal
20 Bearing metal
7 Pinion shaft 14 Stator windings 21 Cyclo flange bracket

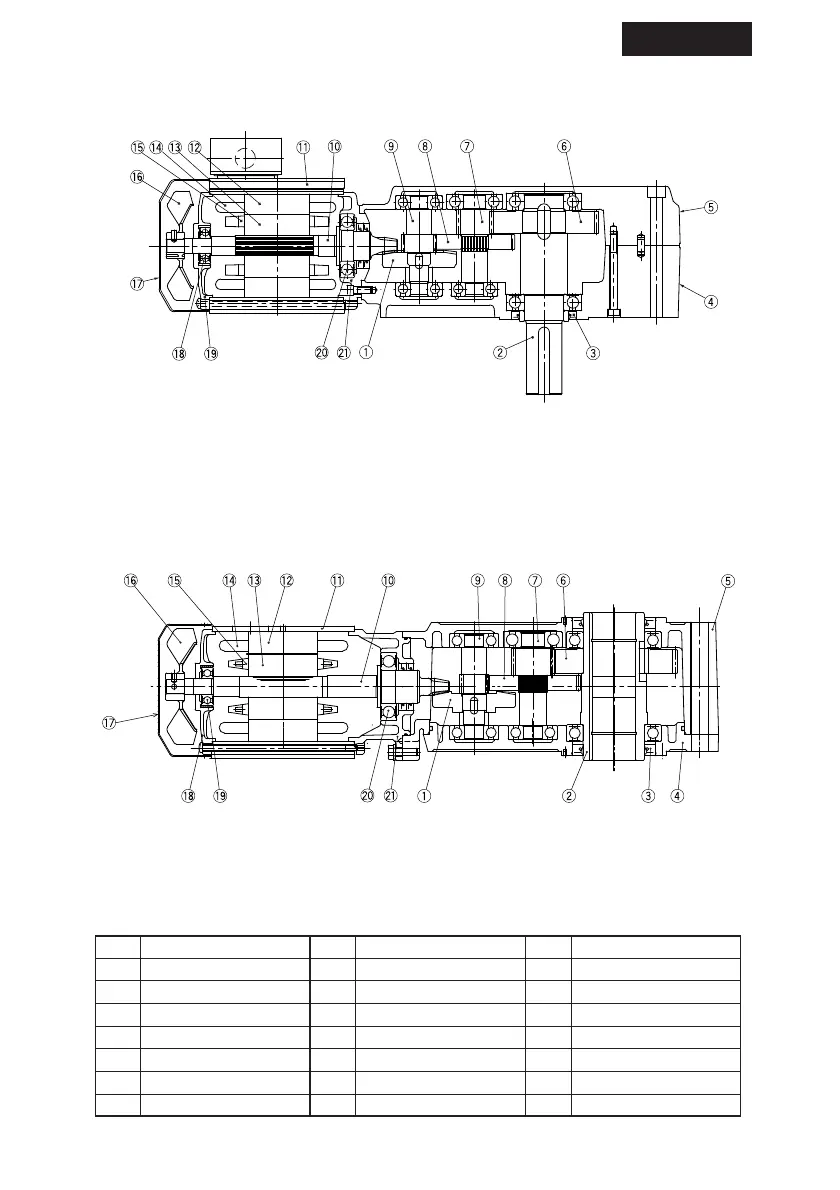

Fig.46 RNFM1-50R-120
Fig.47 RNYM1-1530-120
COMMON
11. Construction Drawings
