SummerAire SHRV115RD - SHRV115 RD Specifications; Ventilation and Energy Performance

2
3
ENERGY PERFORMANCE
LATENT
RECOVERY/
MOISTURE
TRANSFER
SUPPLY
TEMPERATURE
NET
AIR FLOW
SUPPLY
EXHAUST
FLOW RATIO
POWER
CONSUMED
WATTS
SENSIBLE
RECOVERY
EFFICIENCY
APPARENT
SENSIBLE
EFFECTIVENESS C° F° L/S CFM
HEATING
0 +32 30 63 1.03 80 68 82 0.01
0 +32 46 98 1.00 118 63 74 0.02
0 +32 55 118 1.00 136 61 71 0.02
-25 -13 32 69 .91 102 59 82 .04

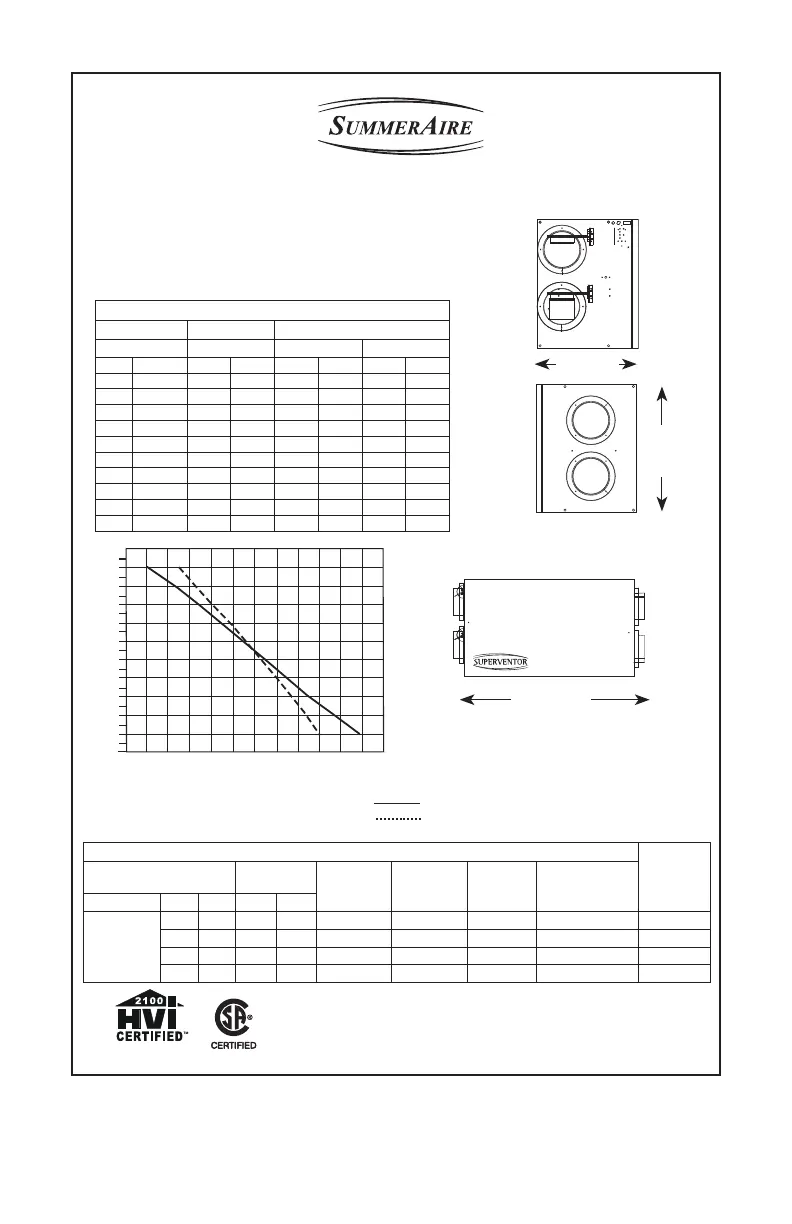

SPECIFICATIONS HEAT RECOVERY VENTILATORS PERFORMANCE RATINGS
SUMMERAIRE MFG., PETERBOROUGH, ONTARIO K9J 7B1
MODEL: SHRV115RD
Electrical: 120 V - 1.12 Amp
Exhaust Air Transfer Ratio: 0.04 @ 0.4 in wg. (100 Pa)
Low Temp. Reduction Factor: 17.8% Supply - 13.8% Exhaust
Low Temp. Imbalance Factor: 0.86
Home Ventilating Institute
ALL DUCT CONNECTIONS
6 IN. (152MM)
STALE AIR
TO
OUTSIDE
FRESH AIR
TO
HOUSE
STALE AIR
FROM
HOUSE
FRESH AIR
FROM
OUTSIDE
VENTILATION PERFORMANCE
EXT. STATIC NET SUPPLY GROSS AIR FLOW
PRESSURE AIR FLOW SUPPLY EXHAUST
Pa in. wg L/S CFM L/S CFM L/S CFM
25 0.1 71 151 74 157 64 136
50 0.2 65 138 68 144 61 130
75 0.3 60 127 62 133 58 123
100 0.4 55 117 57 122 55 117
125 0.5 50 107 52 111 52 110
150 0.6 45 96 47 100 48 102
175 0.7 41 87 43 90 44 94
200 0.8 36 76 37 79 41 87
225 0.9 32 68 33 70 37 79
250 1.0 24 52 26 54 34 72
%XT$IFFERENTIAL0RESSURE0ASCALS












'ROSS!IRFLOW,3
#UBIC&EET0ER-INUTE#&-

Gross Supply
Gross Exhaust
C US
28-1/4
14 1/4
20
