Summerset SIZZLER - Page 21

13 7/8"
23 1/2"
10 7/8"
8 3/4"
11 1/2"
18 5/8"
LID HANDLE
LID
GRATE
IGNITER
BURNER
ORIFICE
BURNER BASE
BODY
VALVE
MANIFOLD
KNOB BEZELS
FRONT PANEL
KNOBS
FLEX TUBE
200mm
FLEX TUBE
400mm
21
22
T-FITTING
RUBBER HOSE
LED LIGHT WIRE
LED LIGHT BASE

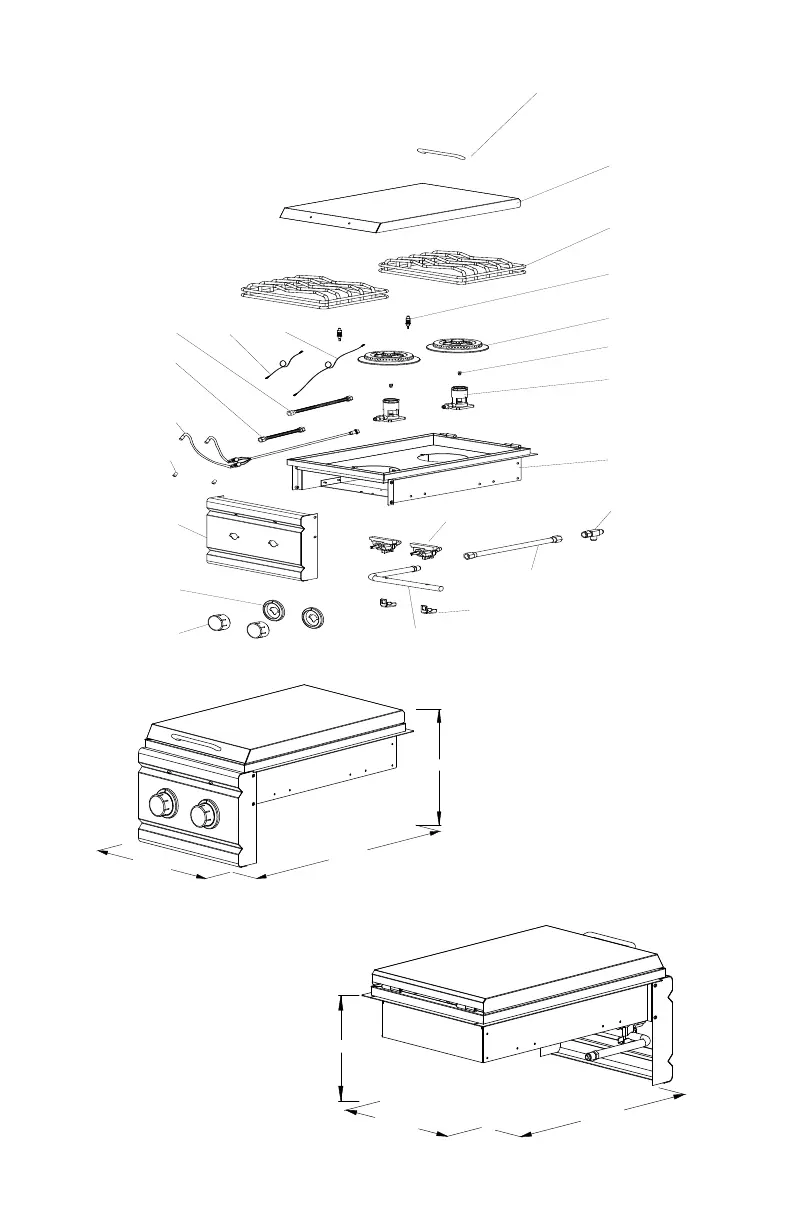

TRL DOUBLE SIDE BURNER
PARTS LIST & LINE DRAWING
VALVE LATCH
18
