Summit RG200W - Dimensions and Clearances

22
40 1/2
Models
20 Wide
24 Wide
A
36
A
20
24
B
20 3/8
24 3/8
C
2
2
D
41
41
D
Minimum to wall on
either side of range
above 36 height
C
Minimum
30
B
18
Minimum to
cabinets on
either side
of range
36
Maximum depth
for cabinets above
countertops
13
Front edge of
the range side
panel forward
from the
cabinet.
1/4
To cabinets below
cooktop and at the
range back
0
Installation Instructions

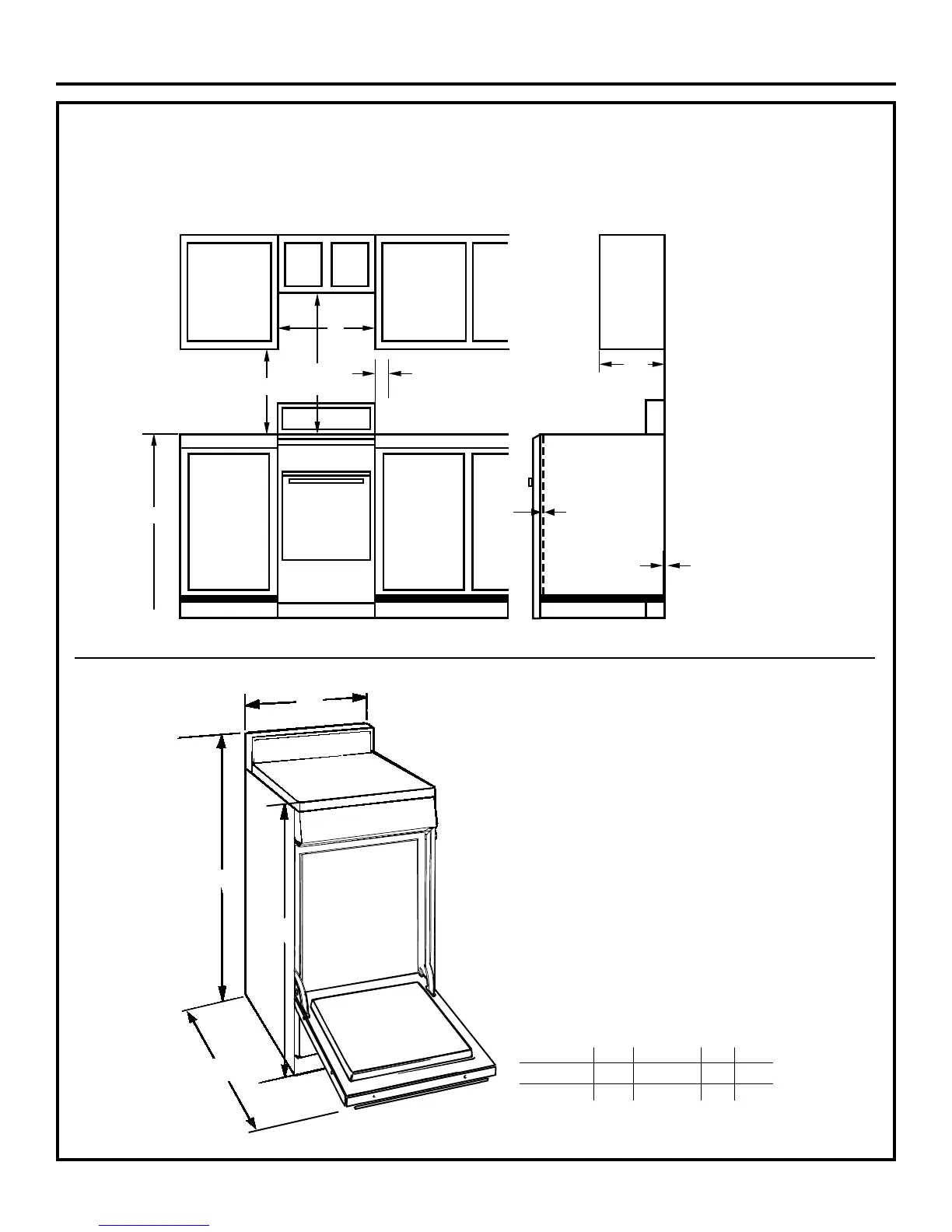

DIMENSIONS AND CLEARANCES
Provide adequate clearances between the range and adjacent combustible surfaces. These dimensions must be met
for safe use of your range.
The range may be placed with 0" clearance below cooktop and at the back wall.
