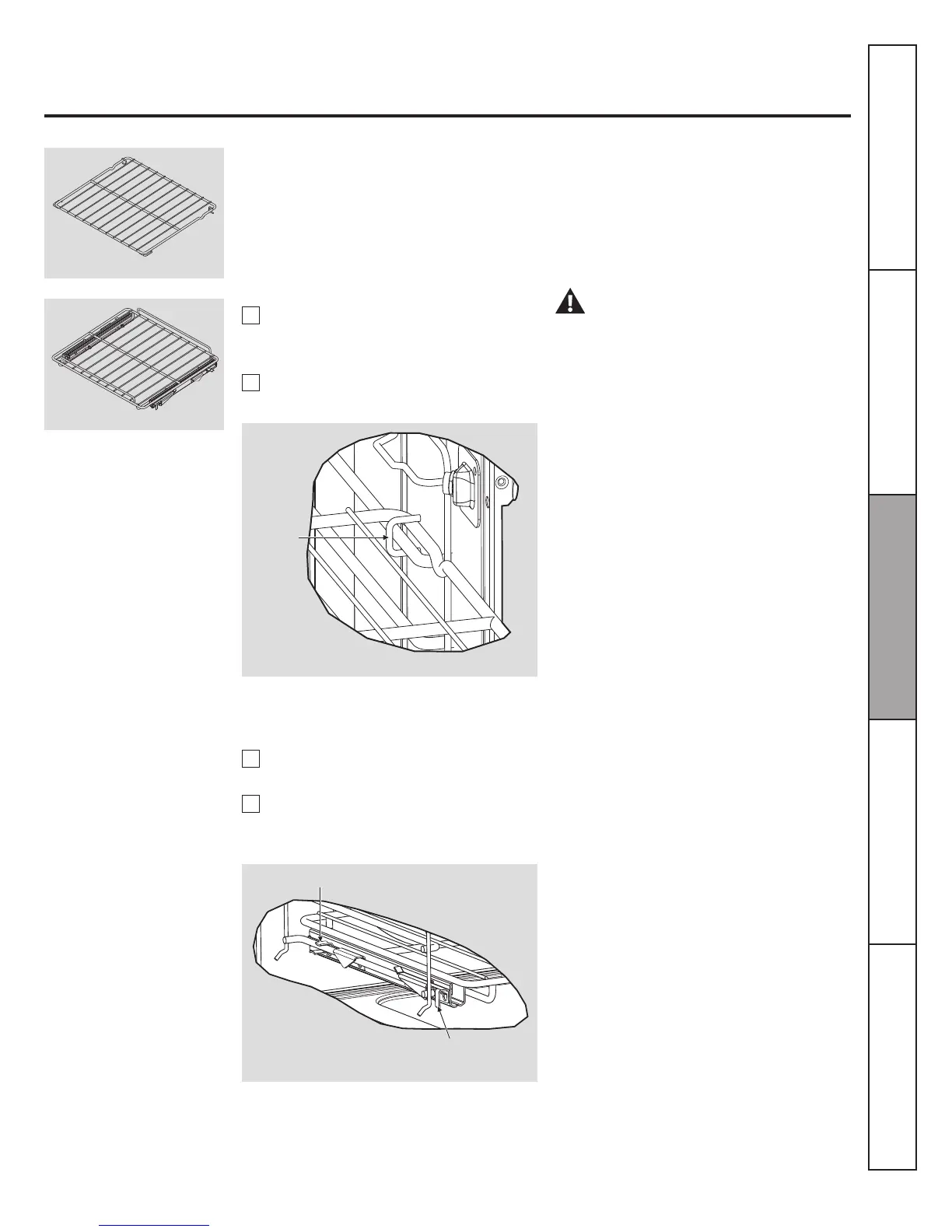

Removing and Installing Oven Racks
Oven Racks
The flat conventional rack (fig. 1) and the
full-extension rack (fig. 2) can be installed at
any level position into cavity.
WARNING!
Always place the broiler pan on the oven rack.
Locate broiler pan
The wall oven has a broiler pan. Use this for
roast the food.
Installing full extension racks
1
2
Slide the rack. Be sure the wire stop is in
the cut of the slides. The rails must be
fixed.
Insert guide of sliders on wires of oven
rack supports. (Fig. 4).
Oven Rack and Accessories.
Installing conventional rack
1
2
Insert guides "C" in sides support, these
guides are located in the rear of the flat
rack. See (fig. 3).
Pull flat rack into oven cavity.
Fig. 3
Guide "C"
Fig. 4
Slider Guides
Wire stop into cut of the slices
Fig. 2
Fig. 1
