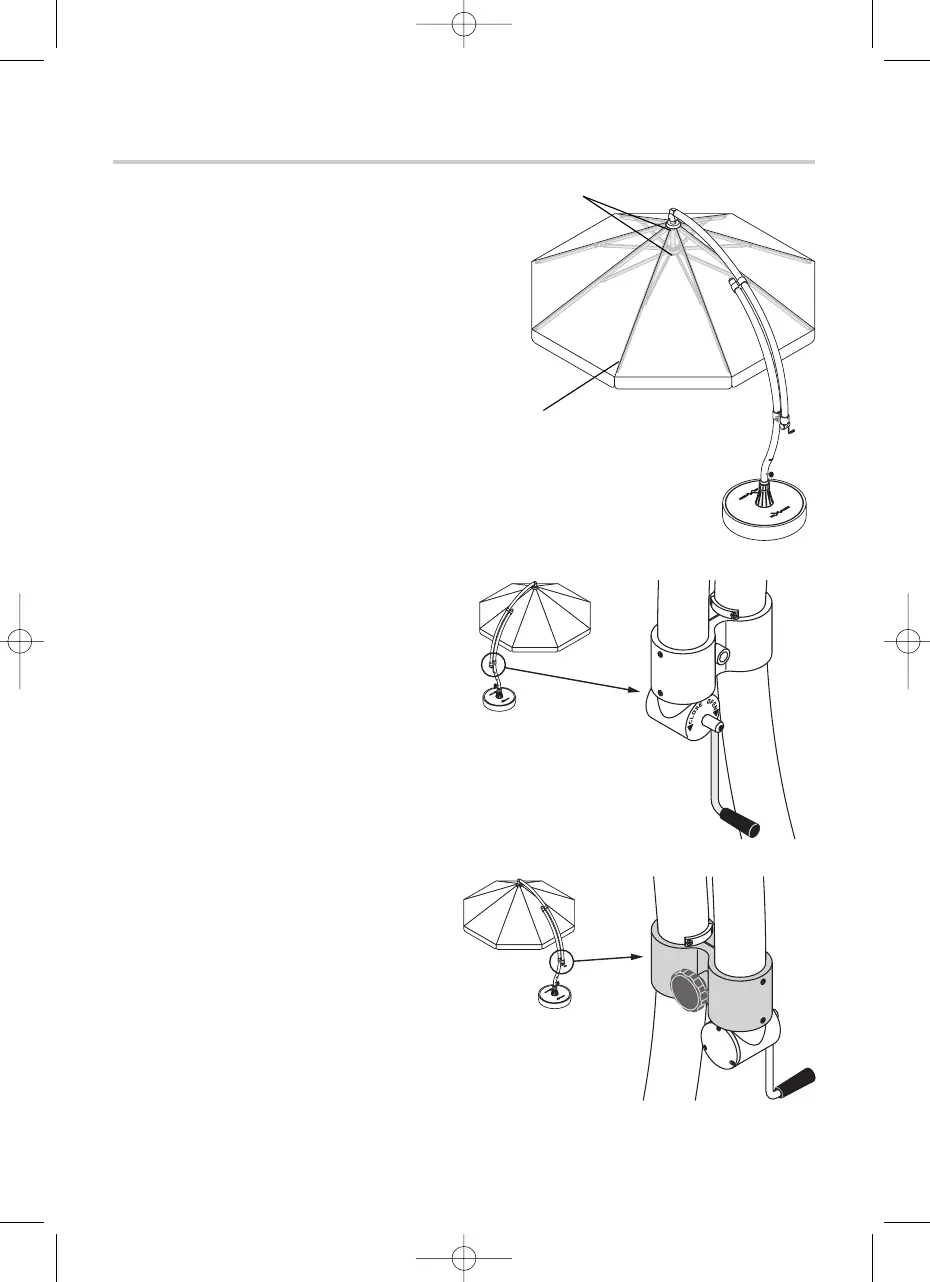

4.4 Sunshade frame
The sunshade frame is used to tension the canopy
material. It consists of the frame arms and two frame
seats.
The canopy material is fixed to the sunshade frame
with velcro bands and screws. Opening the frame is
done by a cable which is operated by the winch
handle.
4.5 Operating elements: the winch handle
The winch handle, manufactured in stainless steel, is
used to open and close the sunshade. Handling is
improved by the winch handle having a rotating
handle on bearings.
The winch handle length is designed so that the
sunshade can be opened or closed without needing
too much strength..
4.6 Operating elements: the block
The sunshade sliding tube is held in the required
position by the block.
After loosening the locking screw the sunshade
inclination can be altered and adapted to the angle of
the sun.
frame seats
Sunshade frame
