Setting up the Sunshade / Fitting the winch handle
9

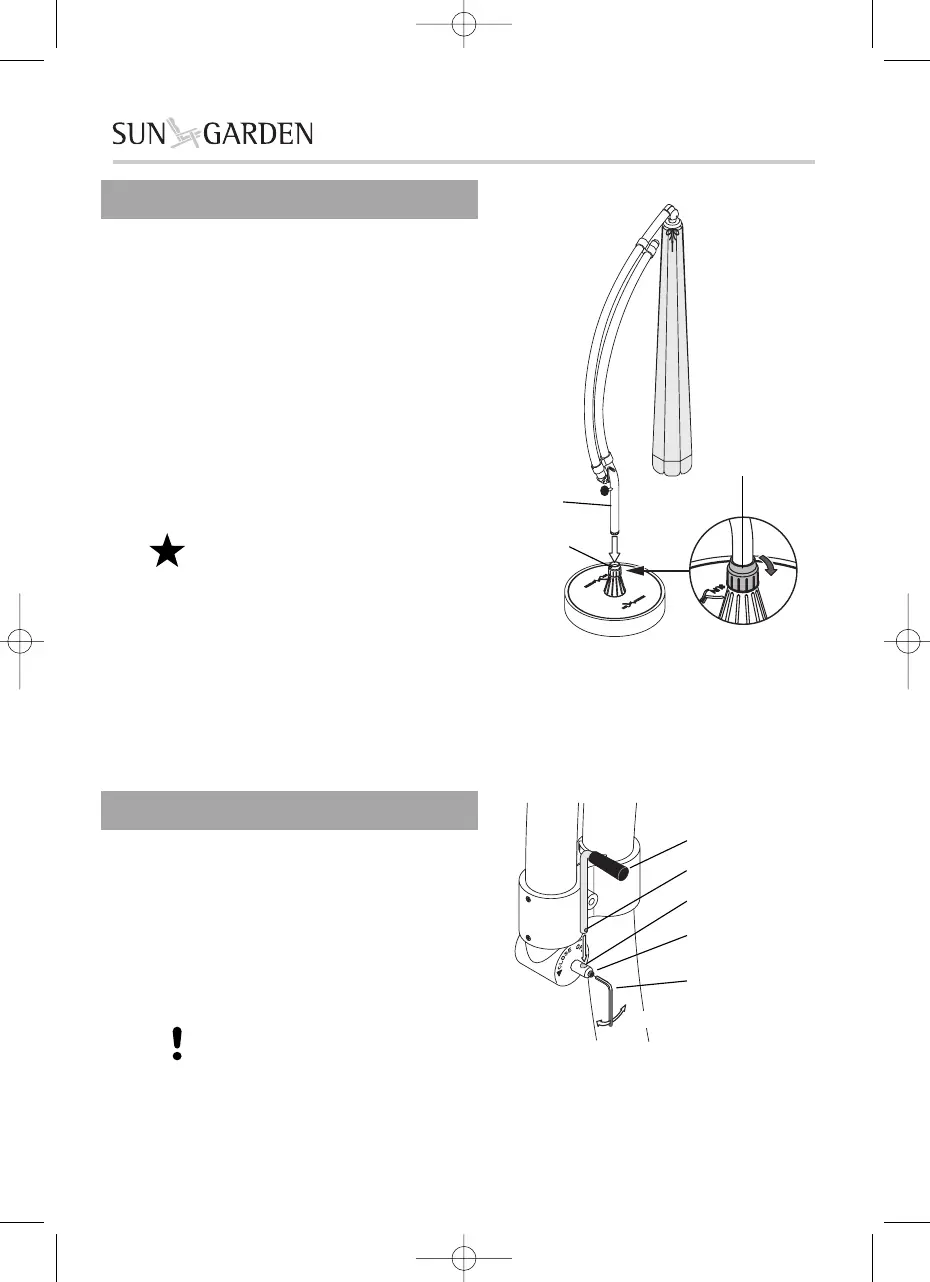

6. Setting up the Sunshade
Caution:
Danger of accident!
It is easier if you can get a second person to help
when setting up the sunshade.
Ensure that the Parasol base or Bottom pole is
secure and stable before setting up the
sunshade.
➤
Place the sunshade with its stand tube into the
stand tube seat of the Parasol base or Bottom pole.
➤
Push the stand tube in as far as the stop in the
stand tube seat.
➤
Turn the sunshade backwards and forwards until
the floor sleeve engages in the stand tube seat
(centred).
Note
If the floor sleeve has engaged correctly, the
sunshade can no longer be turned.
➤
Clamp the sunshade by tightening the union nut in
the stand tube seat.
7. Fitting the winch handle
➤
Place the winch handle in the location hole so that
the recess in the handle is facing the grub screw.
➤
Tighten grub screw.When tightening, ensure that
the grub screw engages exactly into the recess.
➤
Loosen grub screw with Allen key (SW 4 mm,
0.15´´).
Note
Overtightening of the grub screw causes
damage to the Allen screw.
Securing the
sunshade by
tightening the
union nut
Winch handle
Recess
Location hole
Grub screw
Allen key
(SW 4 mm, 0.15´´)
Stand tube
Stand tube
seat
tighten
loosen
