Sun-Mar Excel CSEL-01001 - Compact Specifications; Compact Explosion Diagram & Part Numbers; Compact Electrical Specifications

COMPACT SPECIFICATIONS
1 Toilet Seat White 11 Drum Locker Release Button 21 Humus Deflector Left
2 Bowl Liner 12 Compact Drawer 22 Compact Tank
3 Top Front Cover 13 Rubber U Channel 23 Air Intake Vent
4 Handle Kit 14 Heater Tray 24 Compact Drum
5 Compact Top 15 Insulation 25 Compact Shaft
6 Drum Door 16 Aluminum Sheet 26 Nylon Drive Gear
7 Compact Drum 17 Thermostat 27 Fan & Motor Kit
8 Drum Locker Release 18 Heating Element 28 Toilet Seat Screw
9 Front Bearing Plate 19 Electric Box
EElleeccttrriiccaall SSppeecciiffaaccaattiioonnss CCoommppaacctt 111155VV CCoommppaacctt 224400VV
Maximum Amps 2.0 1.0
Fan Watts
35 req.
(Required) 35 req.
Heater Watts
200 200
(When on)
Average Power Use 125 125
In Watts (Heater on
1/2 time)
- 20 -

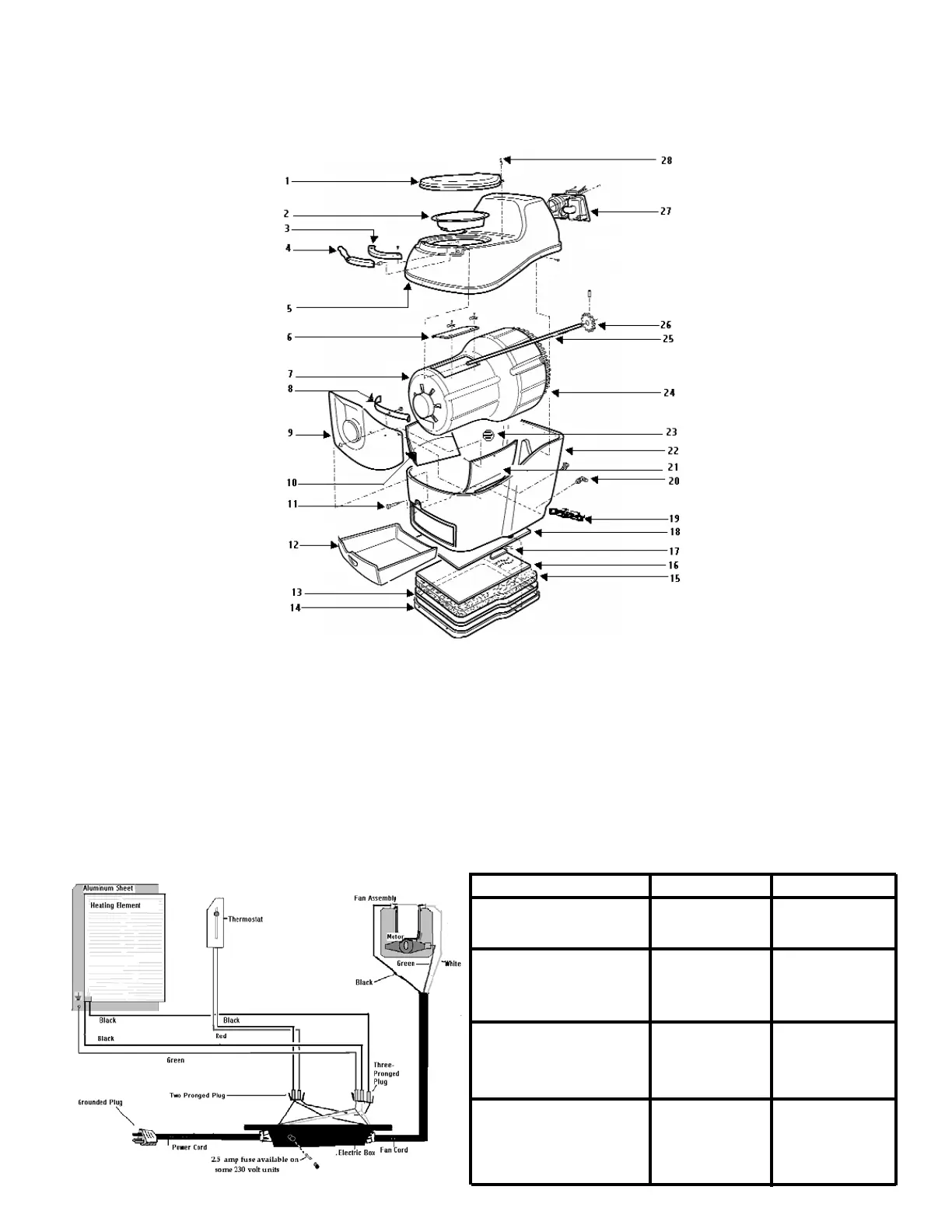

COMPACT EXPLOSION DIAGRAM & PART NUMBERS
