Chapter 4 Battery FRUs 4-9

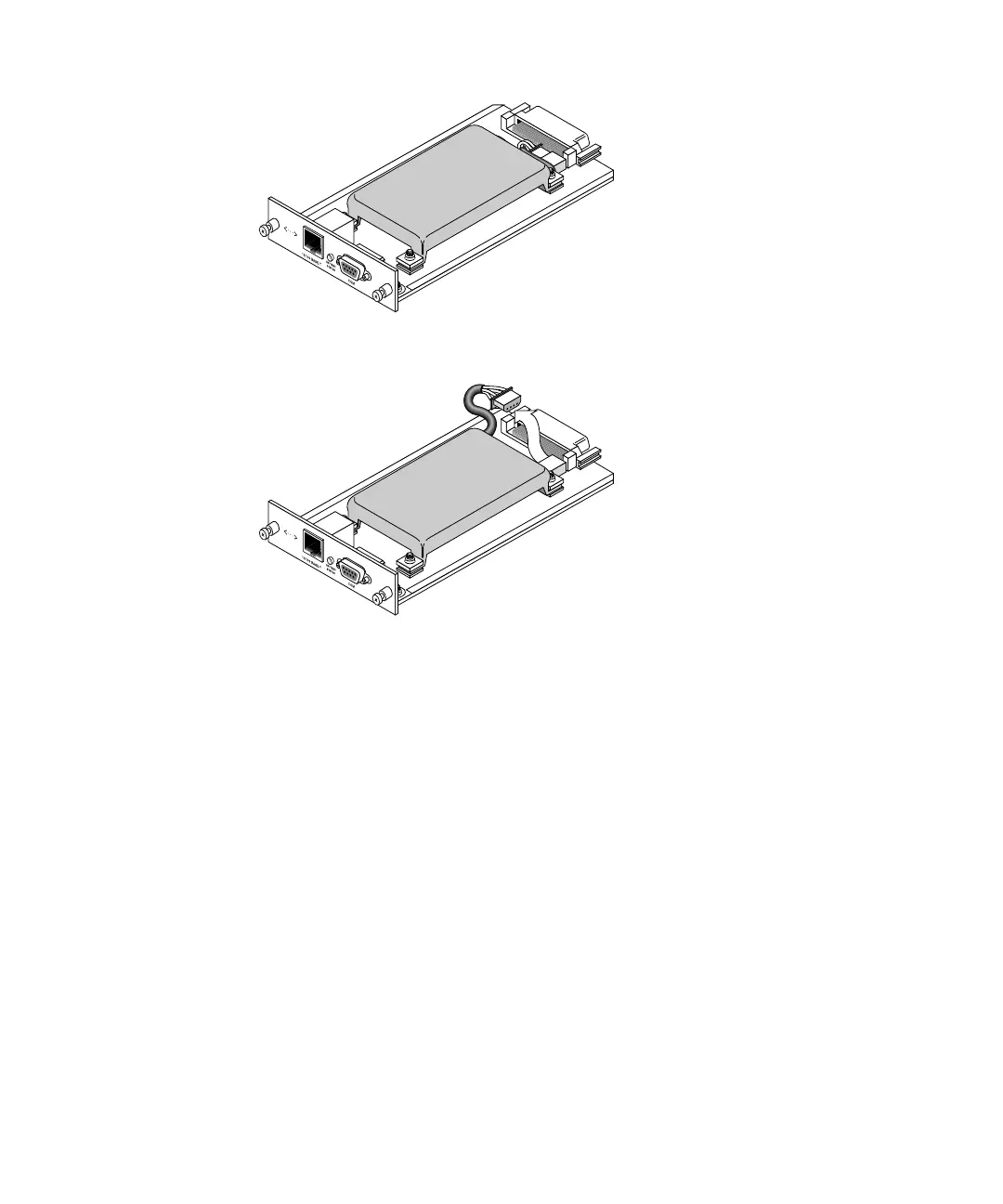

FIGURE 4-8 Battery Module Removed From the Chassis
FIGURE 4-9 Battery Connector Disconnected From the Battery Module
4. Remove the battery screws on the underside of the module to release the battery
from the battery module, similar to the screw removal shown in
FIGURE 4-5.
5. Lift out the battery.
6. Insert the new battery and attach the battery connector to the battery module.
7. With a screwdriver, attach the battery to the controller with the screws that you
removed in Step 4.
8. Reinsert the battery module into the array, and tighten the module thumbscrews
firmly to secure the module.
9. Set the in-service dates for the new FC battery replacement with the CLI or SSCS
program. For details, refer to “FC Battery Status and In-Service Date Procedures”
on page 4-10.
